Model # WAHM184A2 Official ICP evaporator coil

Here are the diagrams and repair parts for Official ICP WAHM184A2 evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Transformer 1172028
#2

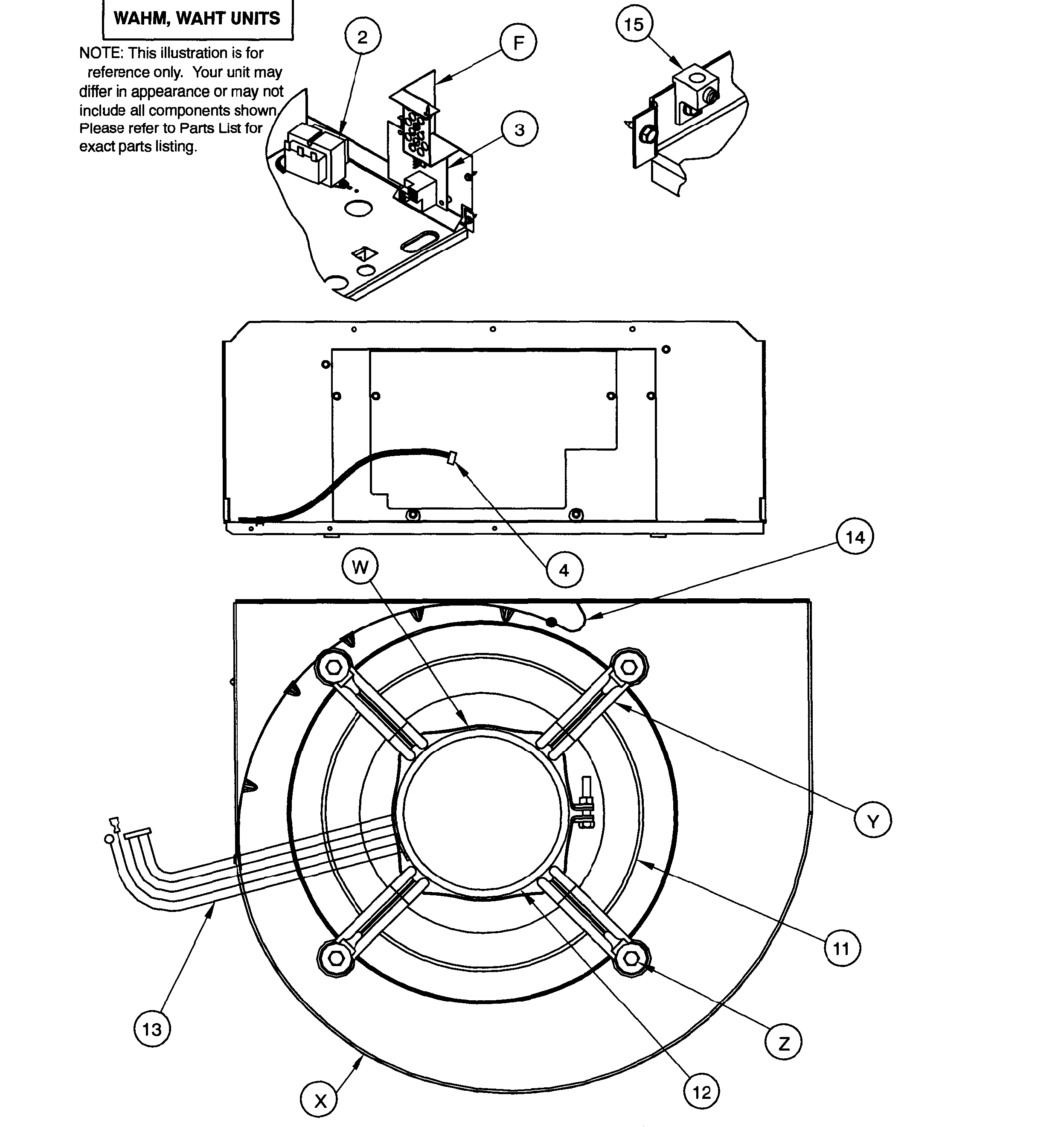

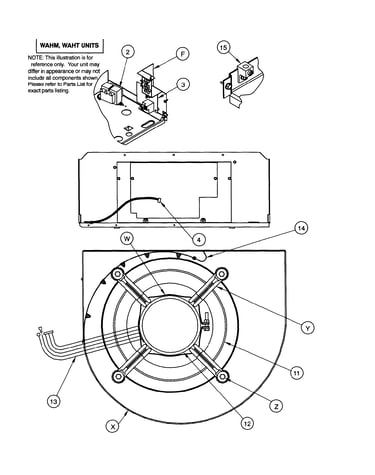

Blower diagram

Transformer

Part #1172028

$87.40
In Stock
Arm & Grom 1173747
#Y

Blower diagram

Arm & grom

Part #1173747

$10.49
In Stock
Grommet 1172083
#K

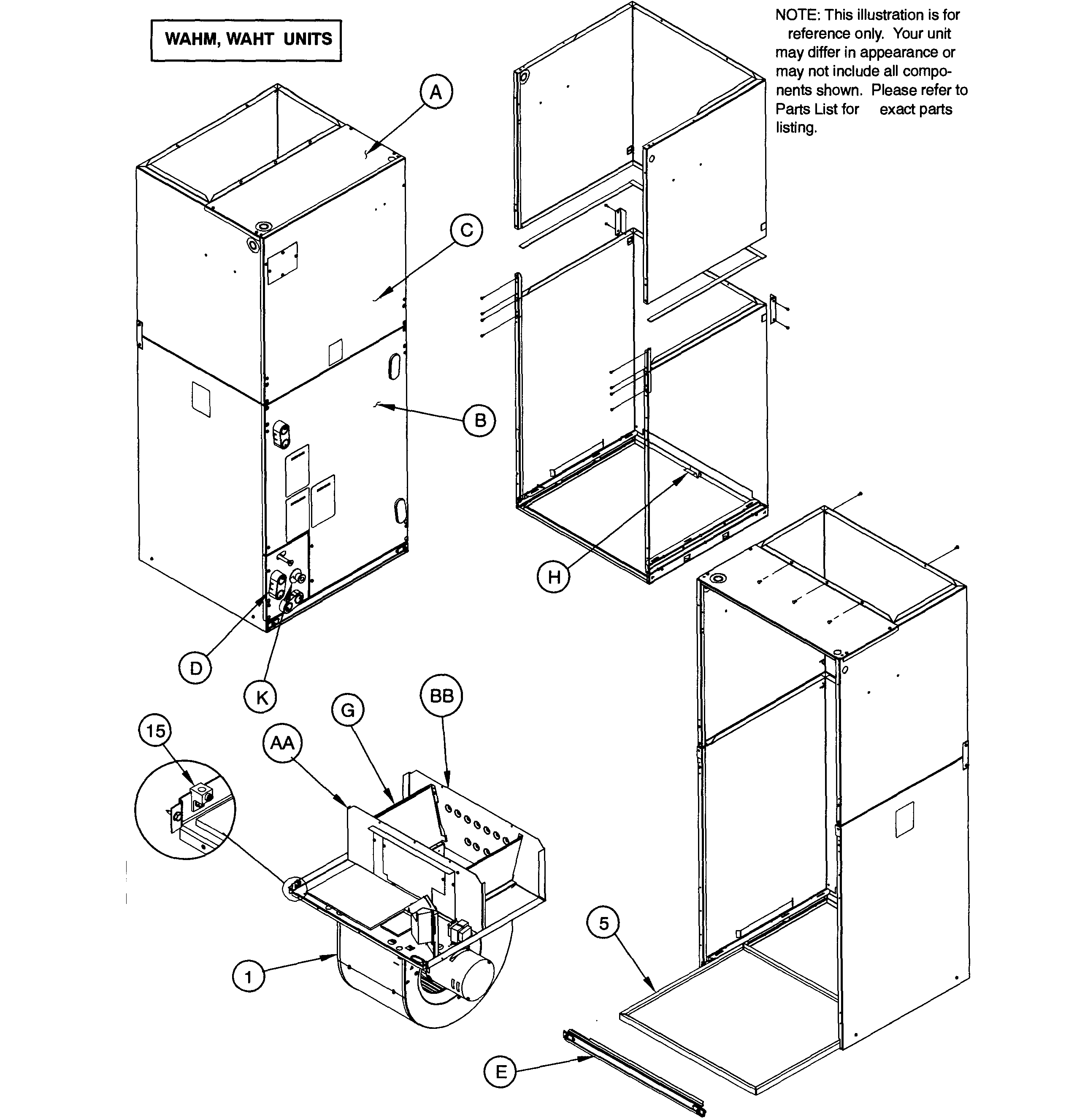

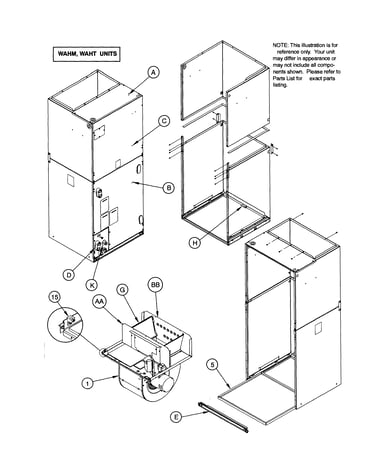

Cabinet diagram

Grommet

Part #1172083

This item is not returnable
$6.34
In Stock
Mtr Blower 1178977
#12

Blower diagram

Mtr blower

Part #1178977

$574.41
In Stock
Central Air Conditioner Evaporator Fan Motor Wire Harness 1171676
#4

Blower diagram

Central air conditioner evaporator fan motor wire harness

Part #1171676

$25.11
In Stock
Harness As 1175754
#13

Blower diagram

Harness as

Part #1175754

$161.06
In Stock
Band Motor 1171733
#W

Blower diagram

Band motor

Part #1171733

Replaced by #1170650

?
Manufacturer substitution
This part replaces 1171733. Substitute parts can look different from the original.
$24.51
In Stock
Wheel 1171743
#11

Blower diagram

Wheel

Part #1171743

Replaced by #1171769

?
Manufacturer substitution
This part replaces 1171743. Substitute parts can look different from the original.
$169.84
In Stock
Shield 1172328
#DD

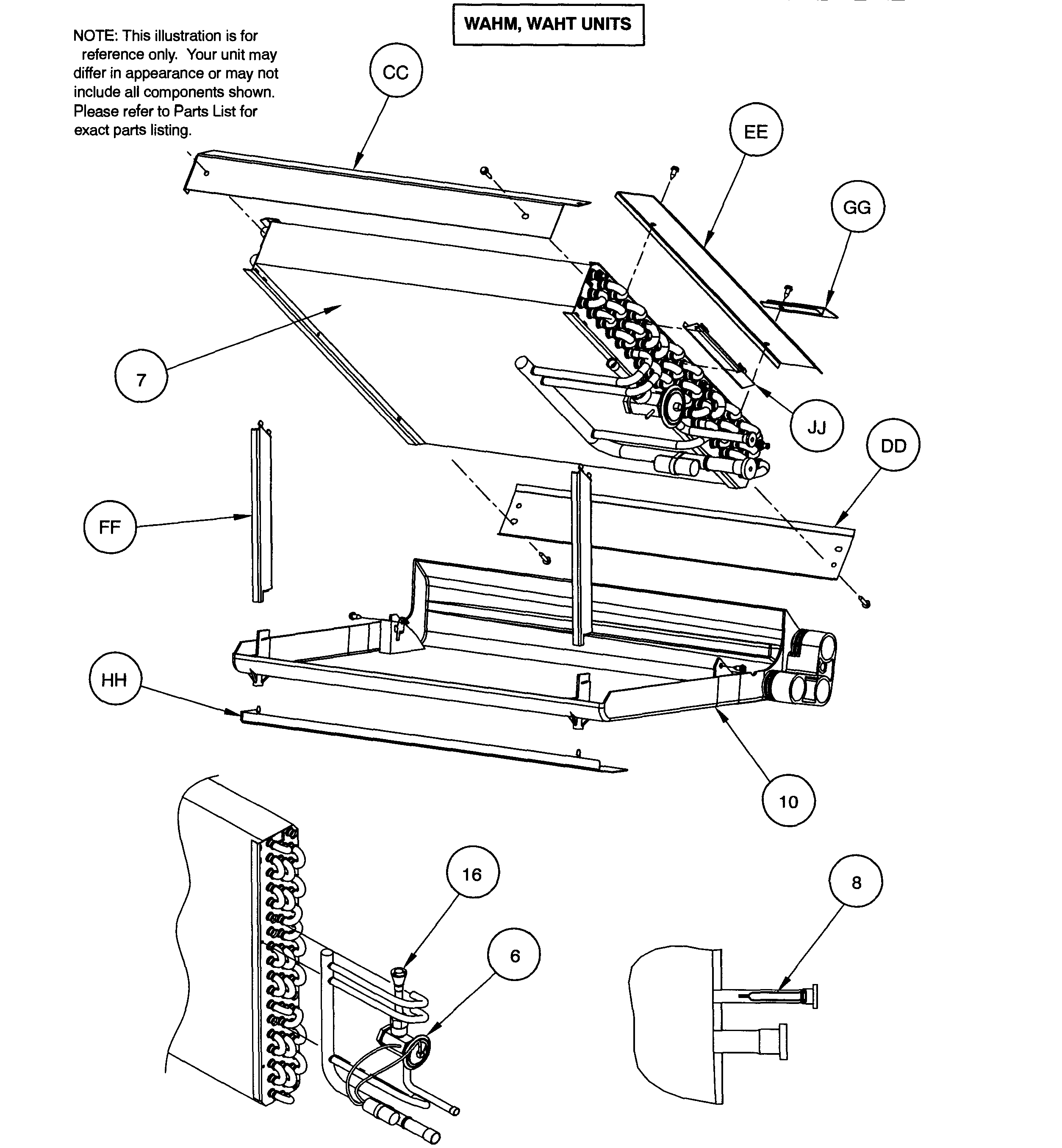

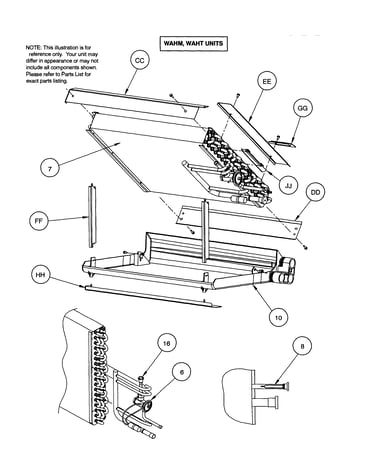

Coil diagram

Shield

Part #1172328

The manufacturer no longer makes this part, and there's no substitute part

Coil & Hdr Assy 1173765
#7

Coil diagram

Coil & hdr assy

Part #1173765

The manufacturer no longer makes this part, and there's no substitute part
