Whirlpool HD1000JSW1 water dispenser Parts
Here are the diagrams and repair parts for Whirlpool HD1000JSW1 water dispenser, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for HD1000JSW1 Water Dispenser

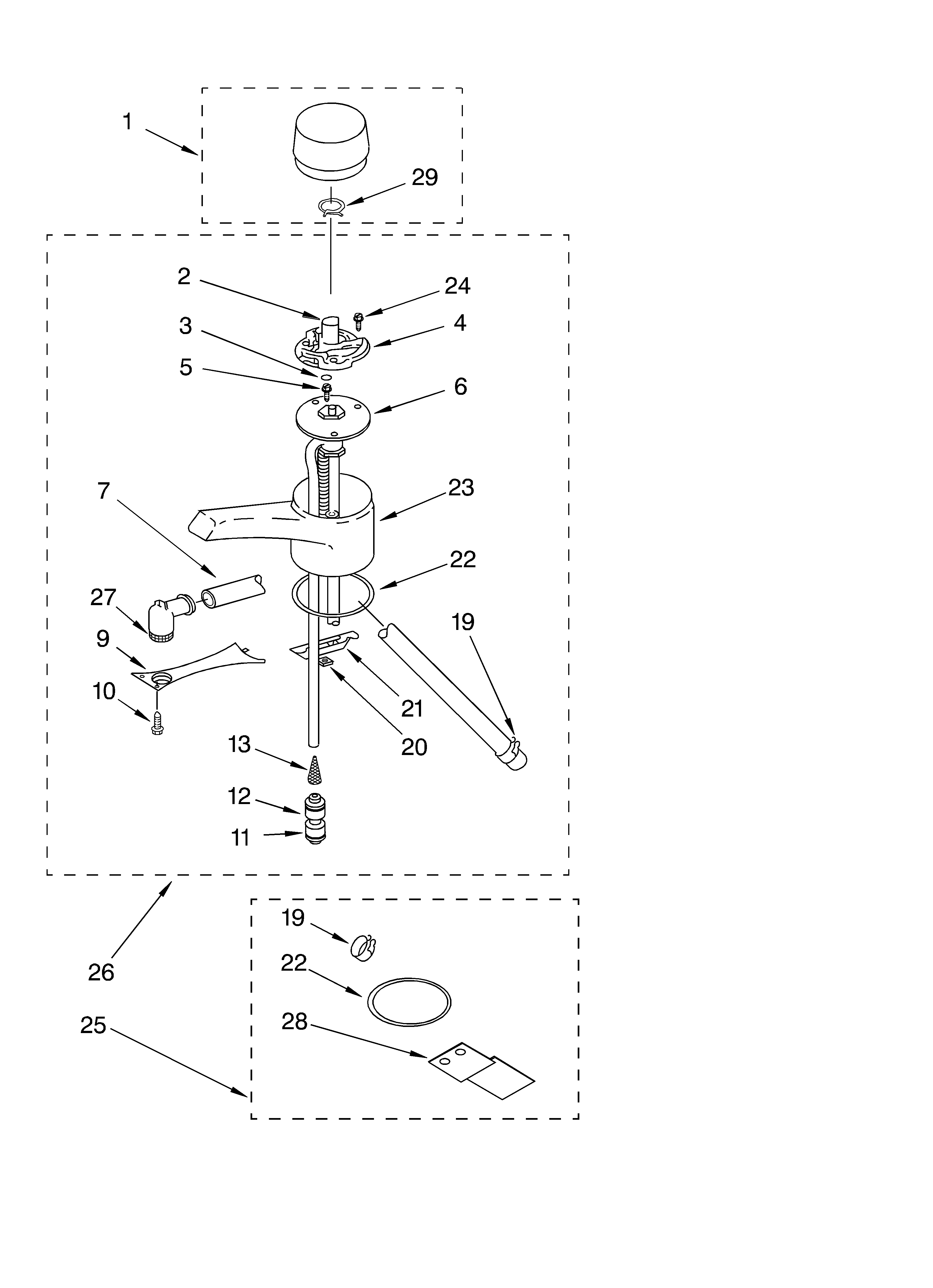

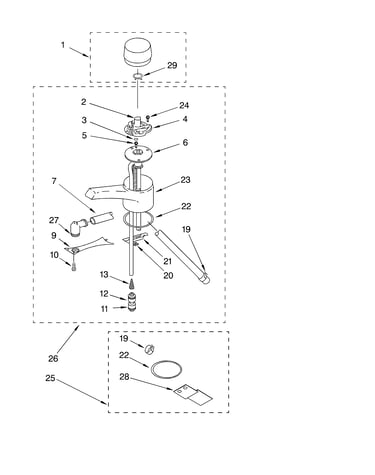

Spout unit parts diagram
Cap-disnsr
In Stock$30.00
Qty

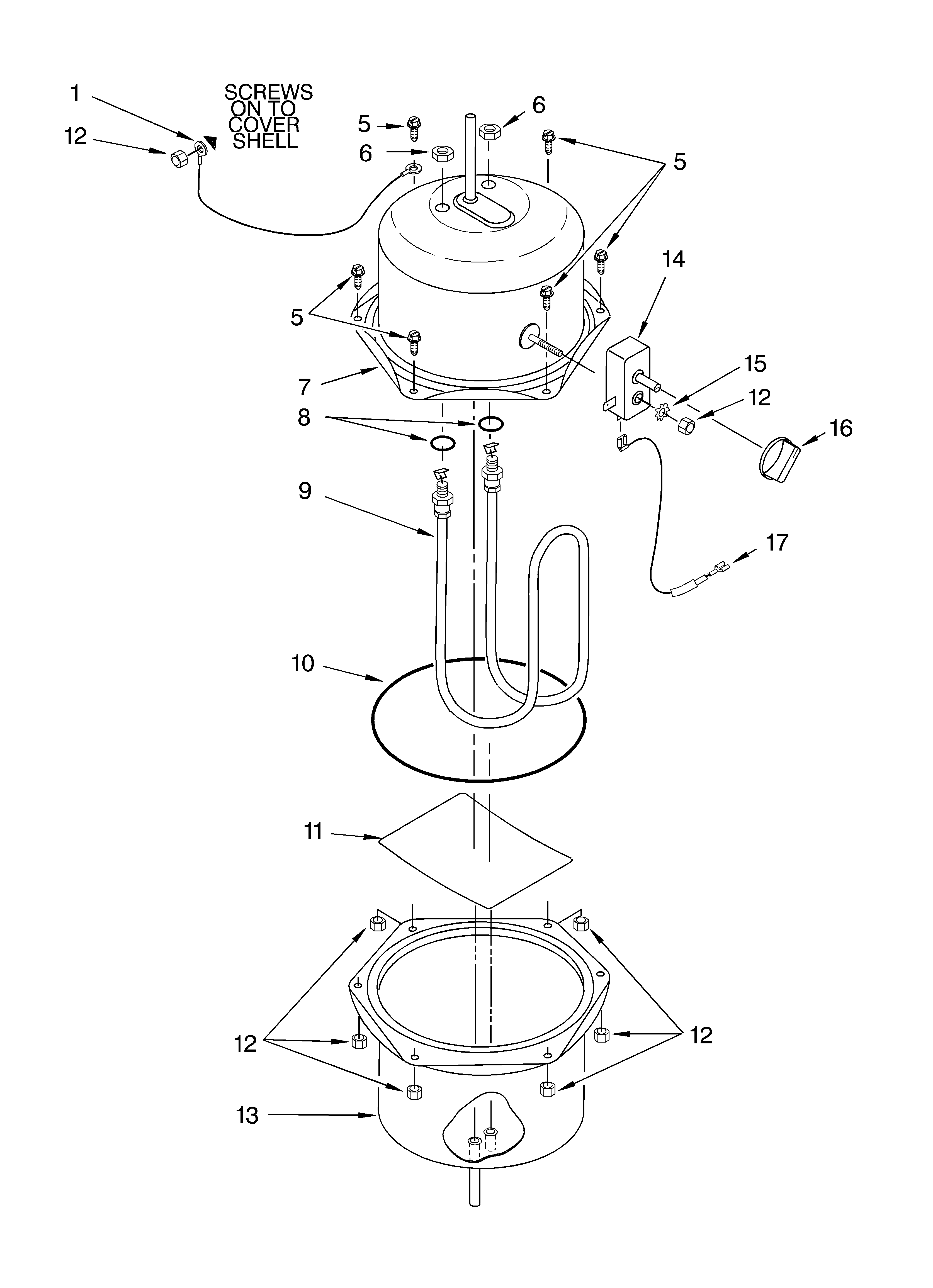

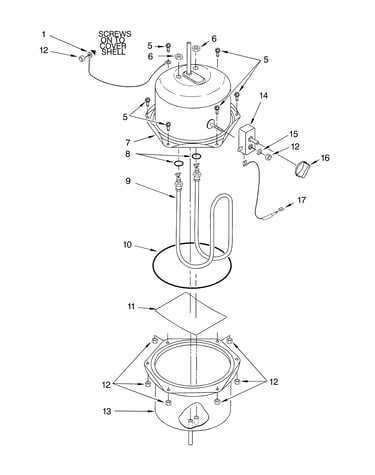

Upper & lower tank shell diagram
Nut
In Stock$27.79QtyLock Washer
In Stock$37.03QtySpout unit parts diagram
Screw
Part #3400640Replaced by #489392
Manufacturer substitutionThis part replaces 3400640. Substitute parts can look different from the original.In Stock$18.3710% OFF Phone Price : $20.37

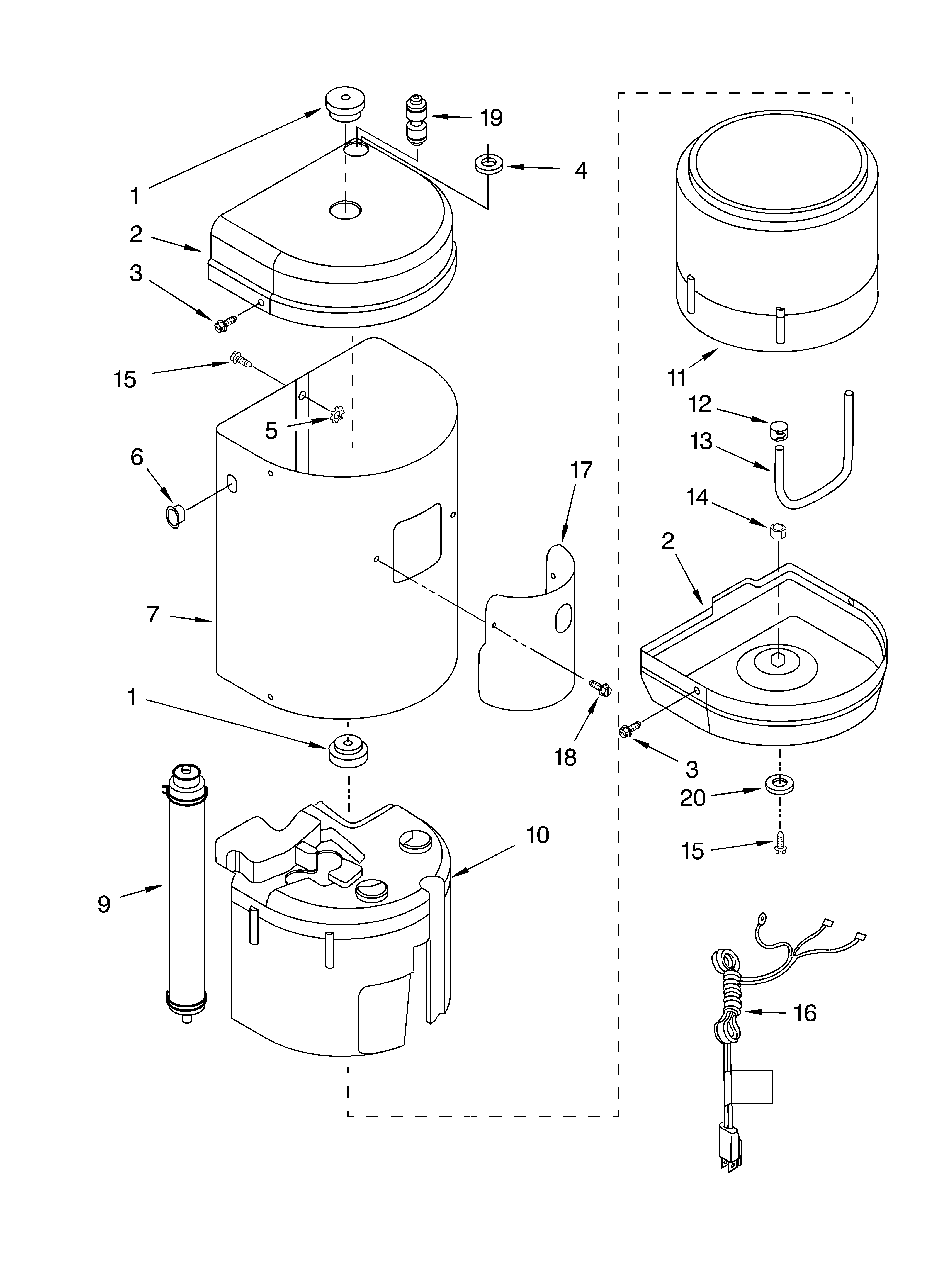

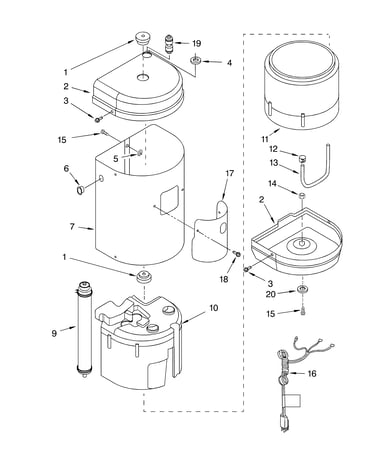

QtyOuter cover & insulation parts diagram
Screw
Part #311932Replaced by #WP313808
Manufacturer substitutionThis part replaces 311932. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyUnion-watr
Part #3191383Replaced by #WP2198677
Manufacturer substitutionThis part replaces 3191383. Substitute parts can look different from the original.In Stock$21.4022% OFF Phone Price : $27.40QtySpout unit parts diagram
Body Spout
Part #3193338
The manufacturer no longer makes this part, and there's no substitute part
Upper & lower tank shell diagram
Heater
Part #3191376
The manufacturer no longer makes this part, and there's no substitute part
Spout unit parts diagram
Cam
Part #3192137
The manufacturer no longer makes this part, and there's no substitute part
Upper & lower tank shell diagram
Hot Water Dispenser Thermal Fuse
Part #3193190
The manufacturer no longer makes this part, and there's no substitute part
