Amana BHEA42T002A/P1101501C high-efficiency universal blower unit with electric heat Parts
Here are the diagrams and repair parts for Amana BHEA42T002A/P1101501C high-efficiency universal blower unit with electric heat, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for BHEA42T002A/P1101501C High-Efficiency Universal Blower Unit with Electric Heat
"a" coil tubing assembly diagram
Distributor Assembly
Part #C6262701
The manufacturer no longer makes this part, and there's no substitute part
"a" coil tubing assembly diagram
Insulation
Part #A3358613
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Felt
Part #B1136505
The manufacturer no longer makes this part, and there's no substitute part
"a" coil tubing assembly diagram
Suction Tube
Part #10119101
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Back Panel Assembly
Part #B1316901
The manufacturer no longer makes this part, and there's no substitute part

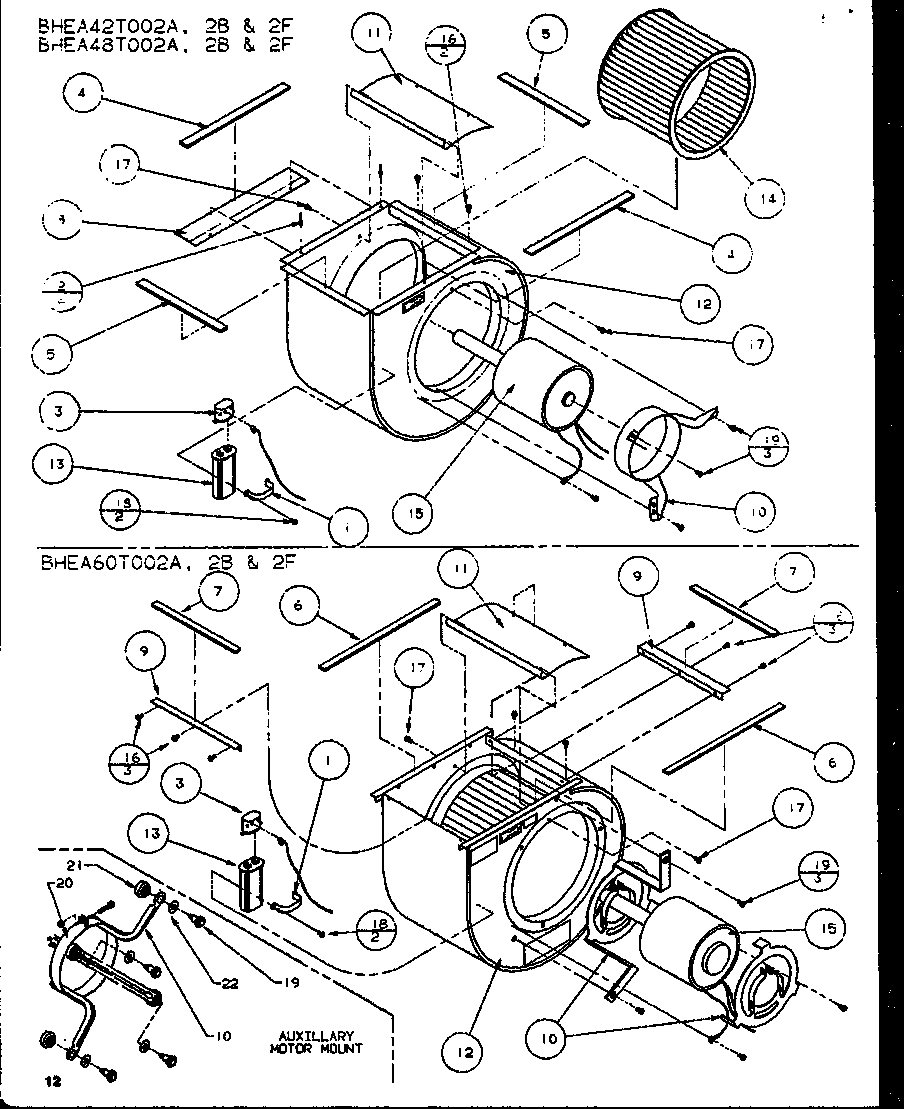

Replacement parts diagram
Capacitor Mounting Bracket
Part #A4055401
The manufacturer no longer makes this part, and there's no substitute part

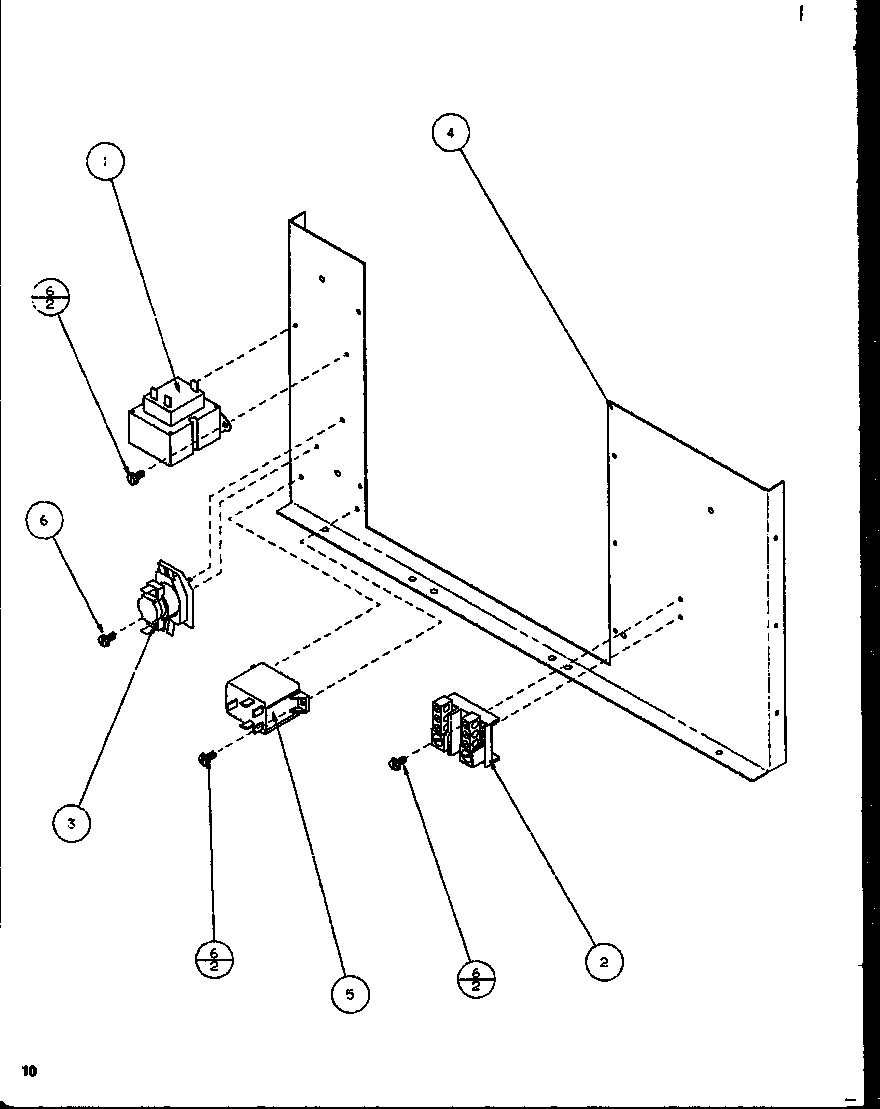

Front panel diagram
Front Panel
Part #10055601
The manufacturer no longer makes this part, and there's no substitute part

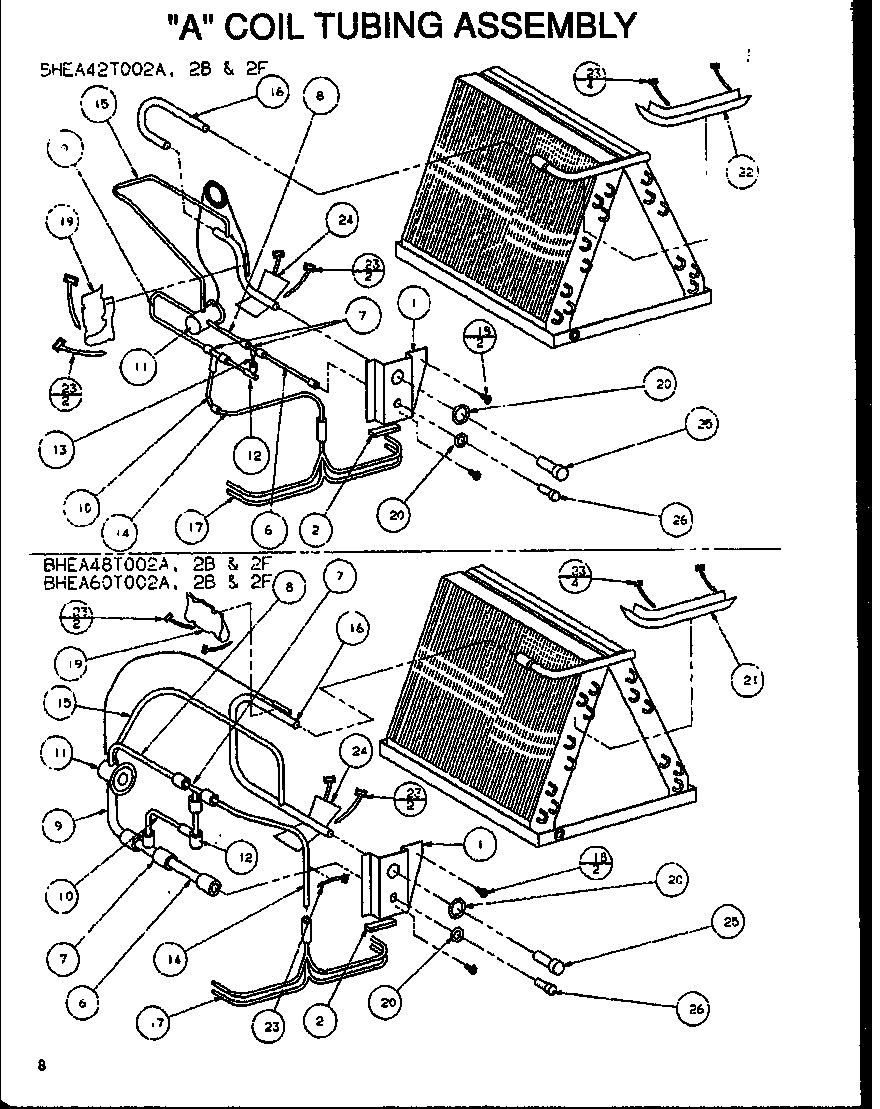

"a" coil tubing assembly diagram
Tube To Tee
Part #B1412802
The manufacturer no longer makes this part, and there's no substitute part

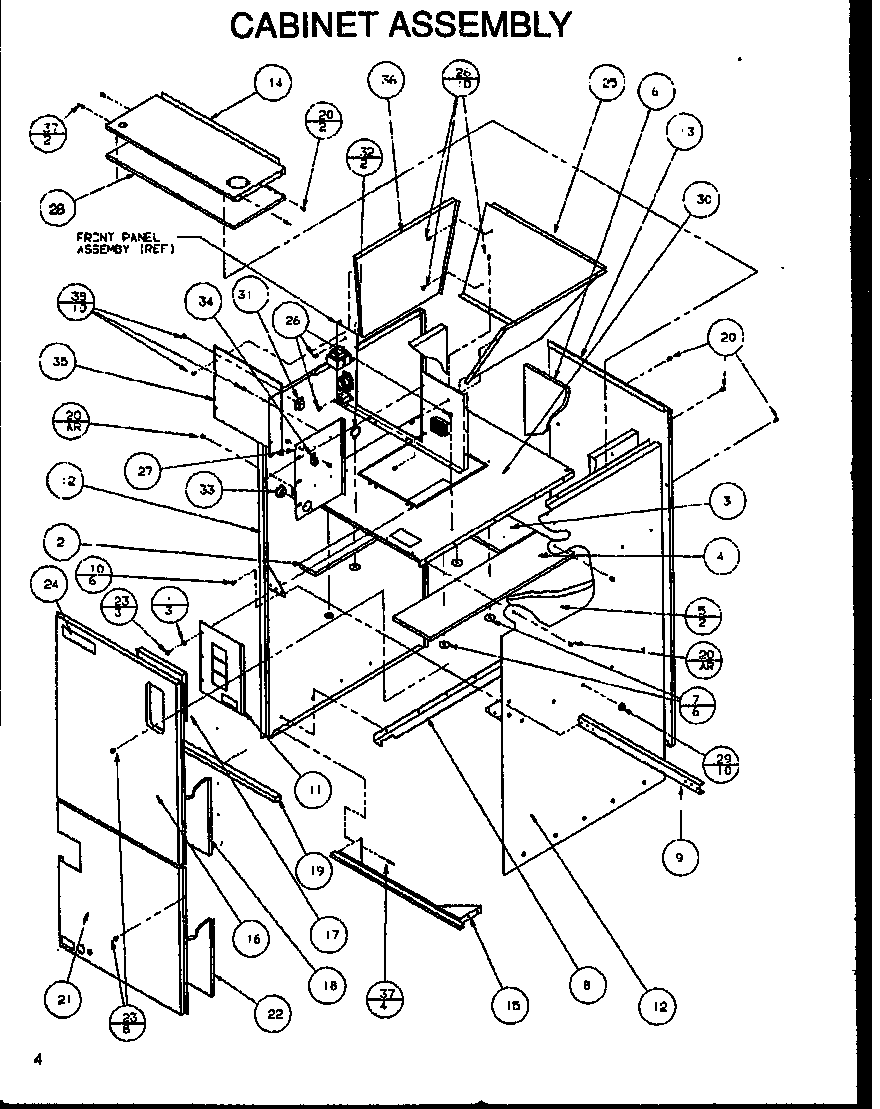

Cabinet assembly diagram
Panel Heater Side
Part #10068301
The manufacturer no longer makes this part, and there's no substitute part

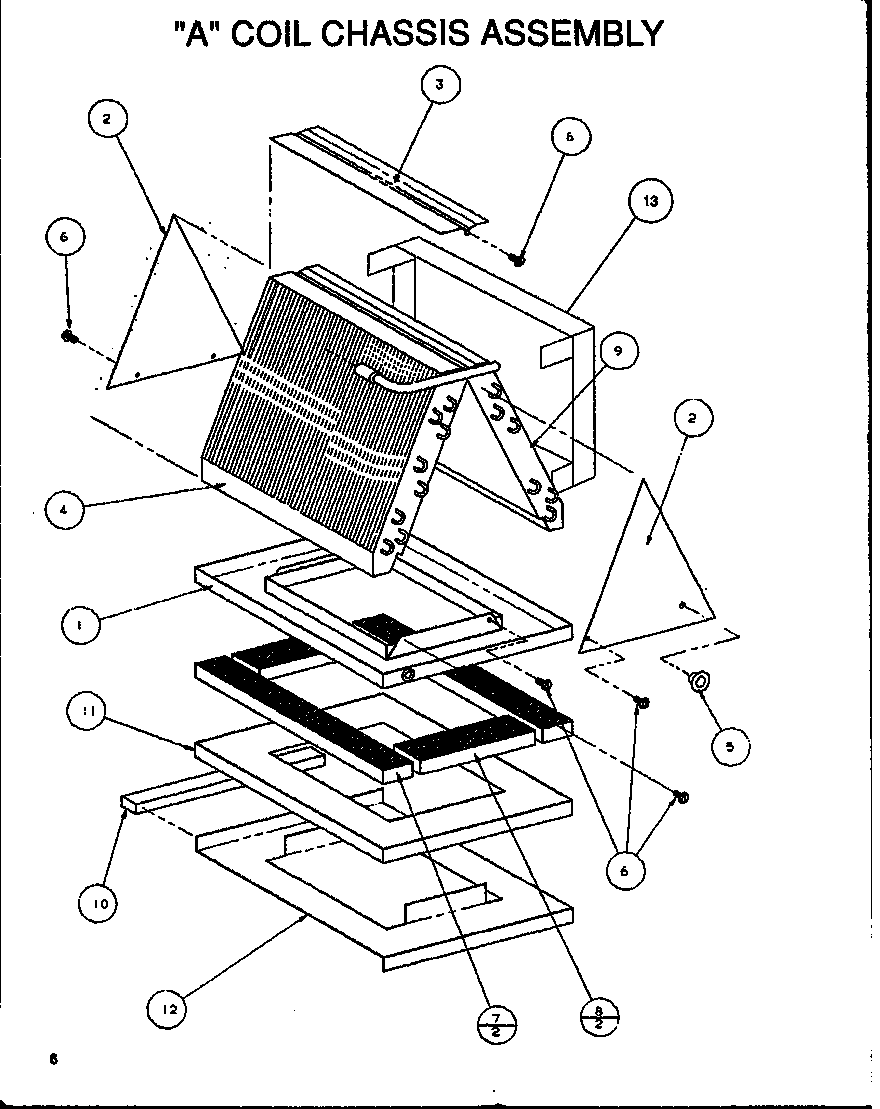

"a" coil chassis assembly diagram
Insulation
Part #A3312806
The manufacturer no longer makes this part, and there's no substitute part
