Model # 56440050100 Official LXI portable color television

Here are the diagrams and repair parts for Official LXI 56440050100 portable color television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Insulation Bushing, Chassis Mtg. 46-3773-3
#14C

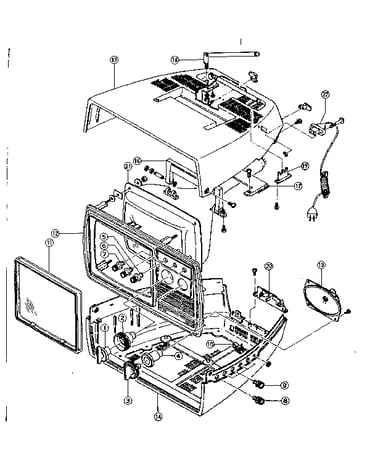

Cabinet diagram

Insulation bushing, chassis mtg.

Part #46-3773-3

The manufacturer no longer makes this part, and there's no substitute part

Shaft, Vhf Tuner 46-8489-3
Shaft, vhf tuner

Part #46-8489-3

The manufacturer no longer makes this part, and there's no substitute part

Cam Ass'y 46-84132-3
#11

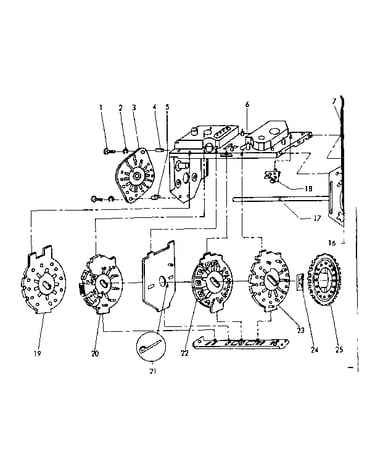

Vhf tuner diagram

Cam ass'y

Part #46-84132-3

The manufacturer no longer makes this part, and there's no substitute part

Knob, Uhf Channel Selector 46-52402-3
#3

Cabinet diagram

Knob, uhf channel selector

Part #46-52402-3

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hex, Picture Tube Mtg. 46-5663-3
#21C

Cabinet diagram

Nut, hex, picture tube mtg.

Part #46-5663-3

The manufacturer no longer makes this part, and there's no substitute part

Screw, Power Supply Cord Mtg. 46-9742-3
#22A

Cabinet diagram

Screw, power supply cord mtg.

Part #46-9742-3

The manufacturer no longer makes this part, and there's no substitute part

Vhf-uhf Selector Wafer Ass'y 46-6939-3
#3

Vhf tuner diagram

Vhf-uhf selector wafer ass'y

Part #46-6939-3

The manufacturer no longer makes this part, and there's no substitute part

Knob, Contrast, Brightness, Vert. Hold, Horiz. Hold 46-52397-3
#9

Cabinet diagram

Knob, contrast, brightness, vert. hold, horiz. hold

Part #46-52397-3

The manufacturer no longer makes this part, and there's no substitute part

Washer, Picture Tube Mtg. 46-58334-3
#21B

Cabinet diagram

Washer, picture tube mtg.

Part #46-58334-3

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 46-4098-3
#12

Cabinet diagram

Escutcheon

Part #46-4098-3

The manufacturer no longer makes this part, and there's no substitute part
