Kenmore
Garbage Disposal

Model # 17565324 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17565324 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

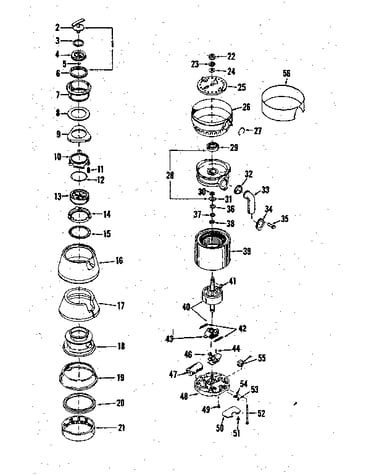

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Garbage Disposal Tailpipe Gasket 1470
#32

Replacement parts diagram

Garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part

Mounting Gasket 1010.801
#13

Replacement parts diagram

Mounting gasket

Part #1010.801

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper Gasket, Inner 1144
#3

Replacement parts diagram

Garbage disposal drain stopper gasket, inner

Part #1144

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Support Ring 5166
#12

Replacement parts diagram

Garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Screw 1491
#35

Replacement parts diagram

Garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part

Washer 6557
#31

Replacement parts diagram

Washer

Part #6557

The manufacturer no longer makes this part, and there's no substitute part

Fiber Gasket 12141
#24

Replacement parts diagram

Fiber gasket

Part #12141

The manufacturer no longer makes this part, and there's no substitute part

Screw 7422
#44

Replacement parts diagram

Screw

Part #7422

The manufacturer no longer makes this part, and there's no substitute part

Grind Ring 1248
#21

Replacement parts diagram

Grind ring

Part #1248

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Tube Flange 5490
#34

Replacement parts diagram

Garbage disposal drain tube flange

Part #5490

The manufacturer no longer makes this part, and there's no substitute part
