Microwave/Hood Combo

Model # PVM9179DF1CC Official GE microwave

Here are the diagrams and repair parts for Official GE PVM9179DF1CC microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

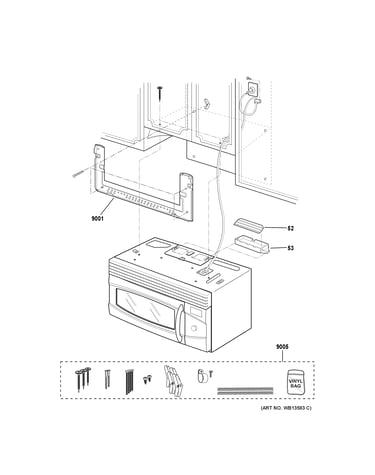

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Microwave Charcoal Filter WB02X10943
#9999

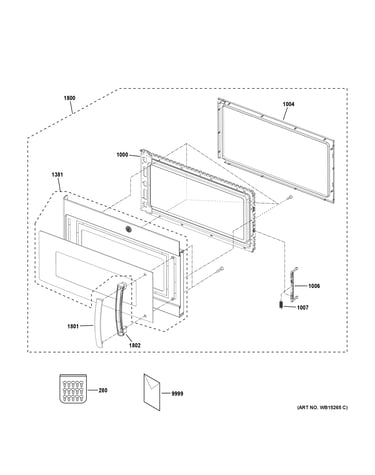

Door parts diagram

Microwave charcoal filter

Part #WB02X10943

Replaced by #WB02X35607

?
Manufacturer substitution
This part replaces WB02X10943. Substitute parts can look different from the original.
BEST SELLER
$21.16
19% OFF Phone Price : $26.16
In Stock
Microwave Fuse WB27X10388
#47

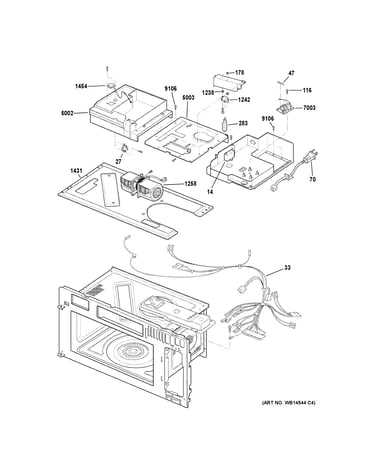

Interior parts (2) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73
9% OFF Phone Price : $10.73
In Stock
Monitor Switch WB24X0817
#30

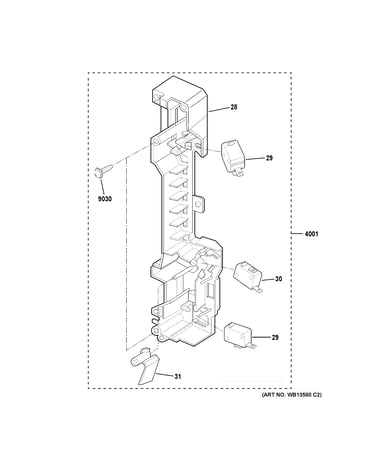

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
$22.56
18% OFF Phone Price : $27.56
In Stock
Holder WB06X10857
#28

Latch board parts diagram

Holder

Part #WB06X10857

Replaced by #WB02X32720

?
Manufacturer substitution
This part replaces WB06X10857. Substitute parts can look different from the original.
This item is not returnable
$16.59
11% OFF Phone Price : $18.59
In Stock
Microwave Electronic Control Board WB27X10866
#2006

Control parts diagram

Microwave electronic control board

Part #WB27X10866

The manufacturer no longer makes this part, and there's no substitute part

Microwave Vent Hood Thermostat (replaces Wb27x10713) WB27X11034
#115

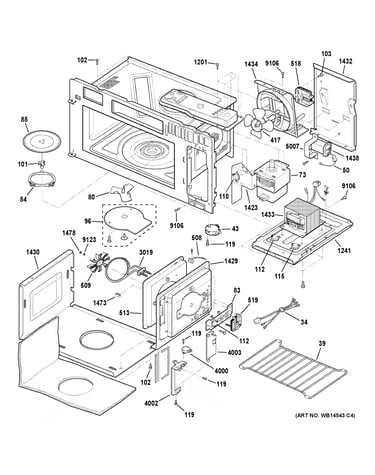

Interior parts (1) diagram

Microwave vent hood thermostat (replaces wb27x10713)

Part #WB27X11034

$15.47
11% OFF Phone Price : $17.47
In Stock
Microwave Nut WB01X10124
#2944

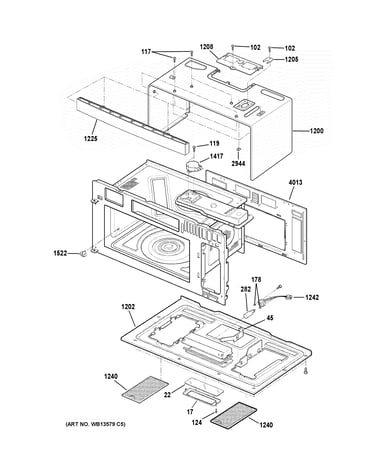

Oven cavity parts diagram

Microwave nut

Part #WB01X10124

$7.83
11% OFF Phone Price : $8.83
In Stock
Microwave Metal Rack (replaces Wb48x10048) WB48X10064
#39

Interior parts (1) diagram

Microwave metal rack (replaces wb48x10048)

Part #WB48X10064

$60.16
8% OFF Phone Price : $65.16
In Stock
Glass Tray WB49X10114
#85

Interior parts (1) diagram

Glass tray

Part #WB49X10114

Replaced by #WB49X10176

?
Manufacturer substitution
This part replaces WB49X10114. Substitute parts can look different from the original.
$69.09
7% OFF Phone Price : $74.09
In Stock
Microwave Door Latch Housing WB14X10048
#4001

Latch board parts diagram

Microwave door latch housing

Part #WB14X10048

Replaced by #WB10X21789

?
Manufacturer substitution
This part replaces WB14X10048. Substitute parts can look different from the original.
$31.51
14% OFF Phone Price : $36.51
In Stock
