Model #CA25WC90 Whirlpool air conditioner

Here are the diagrams and repair parts for Whirlpool CA25WC90 air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 166 parts

    Shroud Clip

    #2

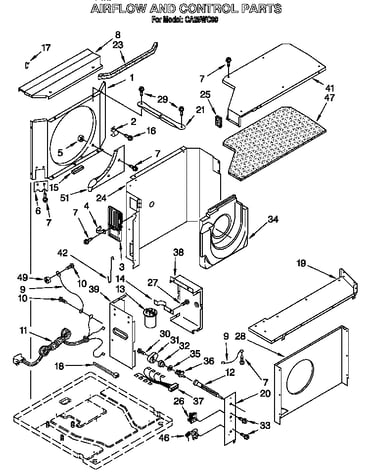

    Airflow and control Diagram

    Shroud clip

    Part #1161248
    This item is not returnable
    $4.20

    In Stock

    Clip, Shroud

    #17

    Airflow and control Diagram

    Clip, shroud

    Part #1164511
    This item is not returnable
    $4.20

    In Stock

    Louver

    #24

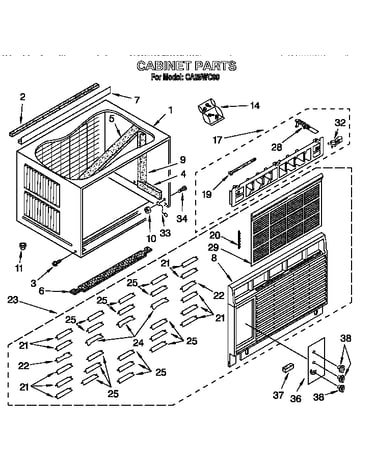

    Cabinet Diagram

    Louver

    Part #1168494
    $27.88

    In Stock

    Louver

    #21

    Cabinet Diagram

    Louver

    Part #1168493
    $27.58

    In Stock

    Louver

    #25

    Cabinet Diagram

    Louver

    Part #1168495
    $27.58

    In Stock

    Louver

    #22

    Cabinet Diagram

    Louver

    Part #1168492
    $27.88

    In Stock

    Cabinet Support

    #10

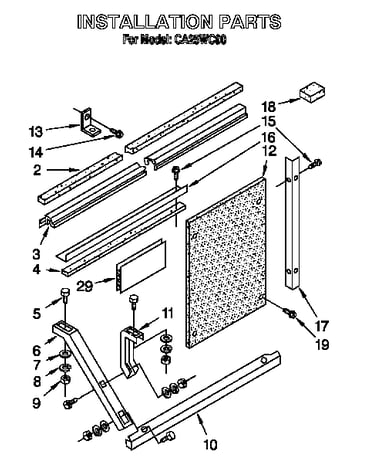

    Installation Diagram

    Cabinet support

    Part #1168475
    $27.59

    In Stock

    Room Air Conditioner Outdoor Cover

    #14D

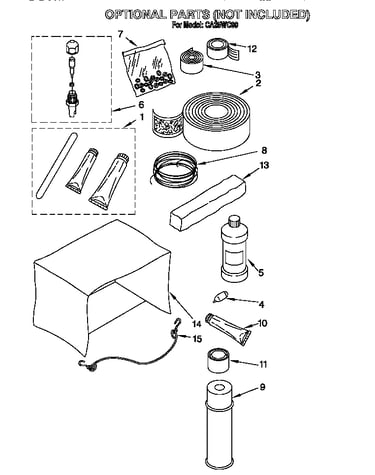

    Optional parts Diagram

    $48.13

    In Stock

    Bend-retrn

    #17

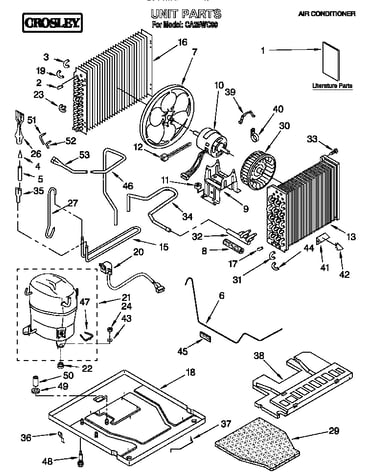

    Unit Diagram

    Bend-retrn

    Part #4388785
    ?
    Manufacturer substitution
    This part replaces 854624. Substitute parts can look different from the original.
    This part replaces 854624
    $76.65

    In Stock

    Refrigerator Permagum Sealer

    #12

    Optional parts Diagram

    Refrigerator permagum sealer

    Part #212643
    ?
    Manufacturer substitution
    This part replaces 212643. Substitute parts can look different from the original.
    This part replaces 212643
    $28.32 |
    23% OFF MSRP:$37.00

    In Stock
