Model # 917P930-054A Official Craftsman transaxle

Here are the diagrams and repair parts for Official Craftsman 917P930-054A transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Brake Pad 799021
#38

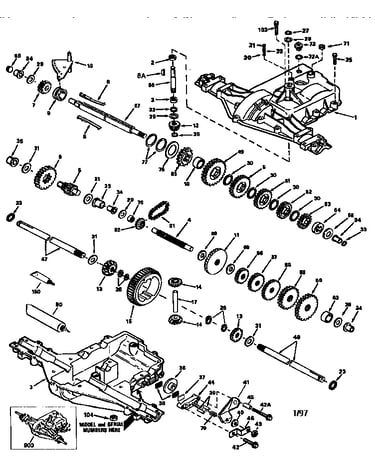

Transaxle p930-054a diagram

Brake pad

Part #799021

Replaced by #799021

?
Manufacturer substitution
This part replaces 799021. Substitute parts can look different from the original.
BEST SELLER
$10.16
16% OFF Phone Price : $12.16
In Stock
Plate 790007
#37

Transaxle p930-054a diagram

Plate

Part #790007

Replaced by #790007

?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.29
16% OFF MSRP : $6.30
In Stock
Spring 792144
#79

Transaxle p930-054a diagram

Spring

Part #792144

Replaced by #792144

?
Manufacturer substitution
This part replaces 792144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
43% OFF MSRP : $4.40
In Stock
Holder 790025
#44

Transaxle p930-054a diagram

Holder

Part #790025

Replaced by #790025

?
Manufacturer substitution
This part replaces 790025. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.30
10% OFF Phone Price : $20.30
In Stock
Screw 792085A
#42A

Transaxle p930-054a diagram

Screw

Part #792085A

Replaced by #792085A

?
Manufacturer substitution
This part replaces 792085A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60
18% OFF Phone Price : $5.60
In Stock
Screw 792073
Screw

Part #792073

Replaced by #792073

?
Manufacturer substitution
This part replaces 792073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
43% OFF MSRP : $4.40
In Stock
Lawn & Garden Equipment Needle Bearing 780086
#2

Transaxle p930-054a diagram

Lawn & garden equipment needle bearing

Part #780086

Replaced by #780086

?
Manufacturer substitution
This part replaces 780086. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.33
13% OFF Phone Price : $15.33
In Stock
Washer 780072
#29

Transaxle p930-054a diagram

Washer

Part #780072

Replaced by #780072

?
Manufacturer substitution
This part replaces 780072. Substitute parts can look different from the original.
This item is not returnable
$2.49
43% OFF MSRP : $4.40
In Stock
Seal 788095
#33

Transaxle p930-054a diagram

Seal

Part #788095

Replaced by #788051A

?
Manufacturer substitution
This part replaces 788095. Substitute parts can look different from the original.
This item is not returnable
In Stock
Grease 788067B
#90

Transaxle p930-054a diagram

Grease

Part #788067B

Replaced by #788067D

?
Manufacturer substitution
This part replaces 788067B. Substitute parts can look different from the original.
In Stock
