Model # PUH-4G6.US Official Mitsubishi air conditioner heat pump

Here are the diagrams and repair parts for Official Mitsubishi PUH-4G6US air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

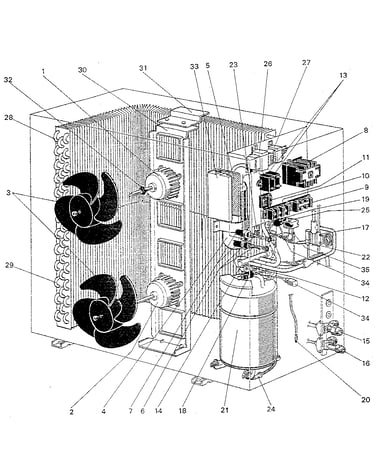

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Rv Coil T7W867242
Rv coil

Part #T7W867242

The manufacturer no longer makes this part, and there's no substitute part

4 Way Vlv T7W868403
#14

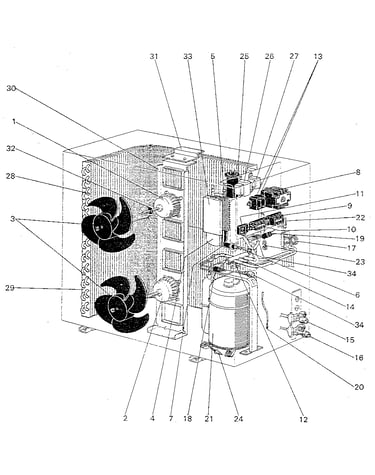

Control board- outdoor diagram

4 way vlv

Part #T7W868403

The manufacturer no longer makes this part, and there's no substitute part

Panel R01539662
#4

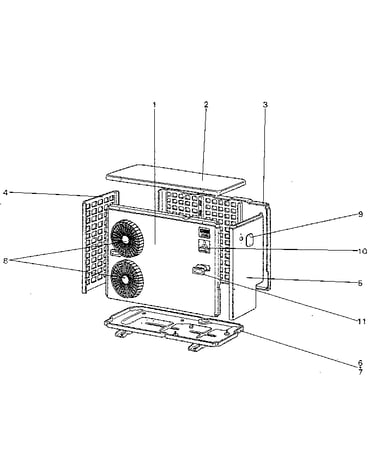

Puh-4g6.us & puh-5g6.us structural diagram

Panel

Part #R01539662

The manufacturer no longer makes this part, and there's no substitute part

Fus Plug T7W973507
Fus plug

Part #T7W973507

The manufacturer no longer makes this part, and there's no substitute part

Start Relay T7W869704
#37

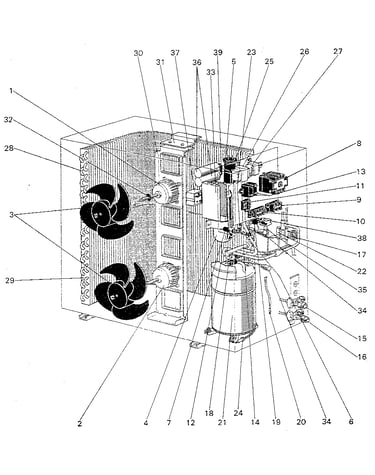

Compressor jh512 diagram

Start relay

Part #T7W869704

The manufacturer no longer makes this part, and there's no substitute part

Valve Ball R01670411
Valve ball

Part #R01670411

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly R01541686
#7

Puh-4g6.us & puh-5g6.us structural diagram

Base assembly

Part #R01541686

The manufacturer no longer makes this part, and there's no substitute part

Fuse T7W645239
Fuse

Part #T7W645239

The manufacturer no longer makes this part, and there's no substitute part

Fan Packing T7W105140
Fan packing

Part #T7W105140

The manufacturer no longer makes this part, and there's no substitute part

Solenoid Valve R01746428
Solenoid valve

Part #R01746428

The manufacturer no longer makes this part, and there's no substitute part
