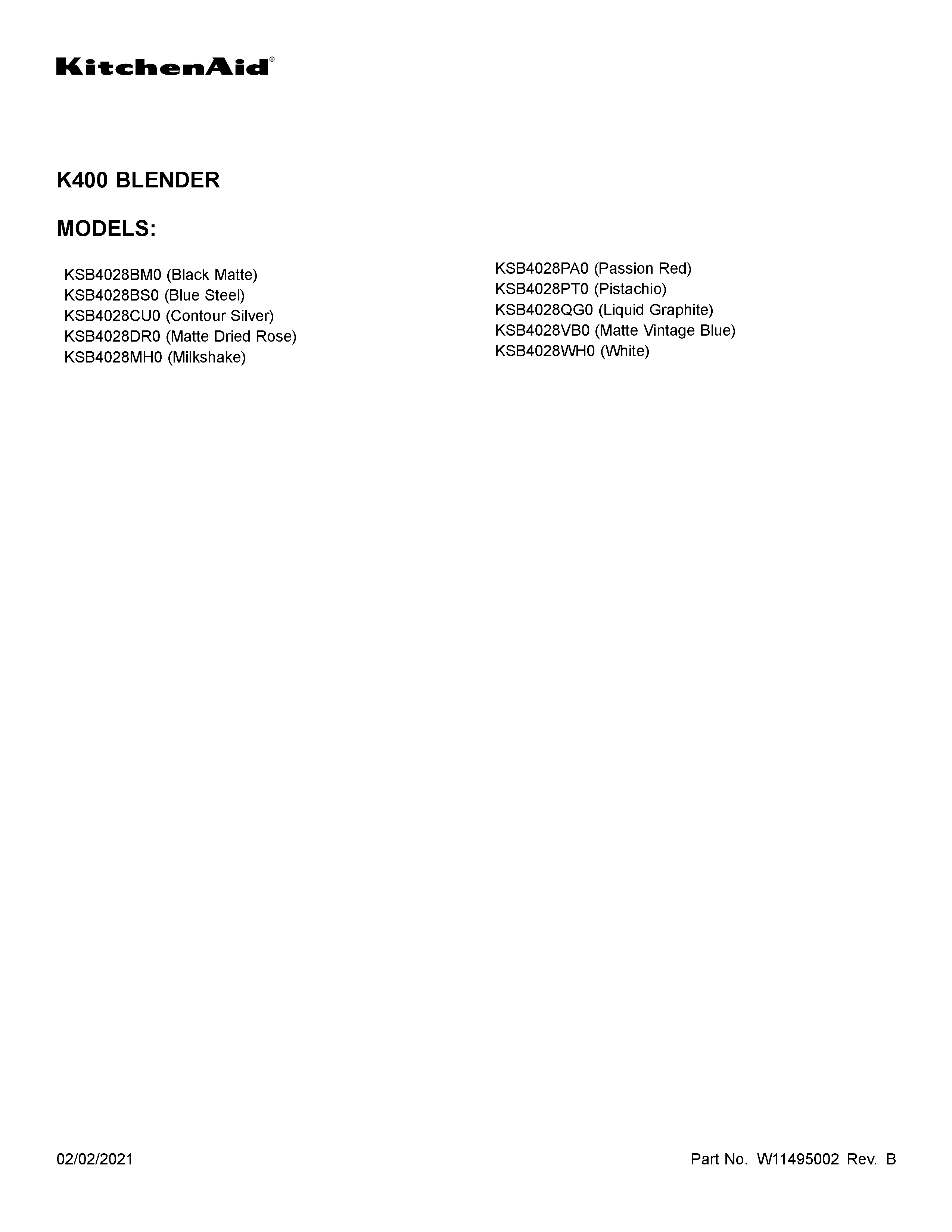

Model #KSB4028PT0 Official KitchenAid small appliance, blender

Here are the diagrams and repair parts for KitchenAid KSB4028PT0 small appliance, blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 31 parts

Blender Jar Assembly#3

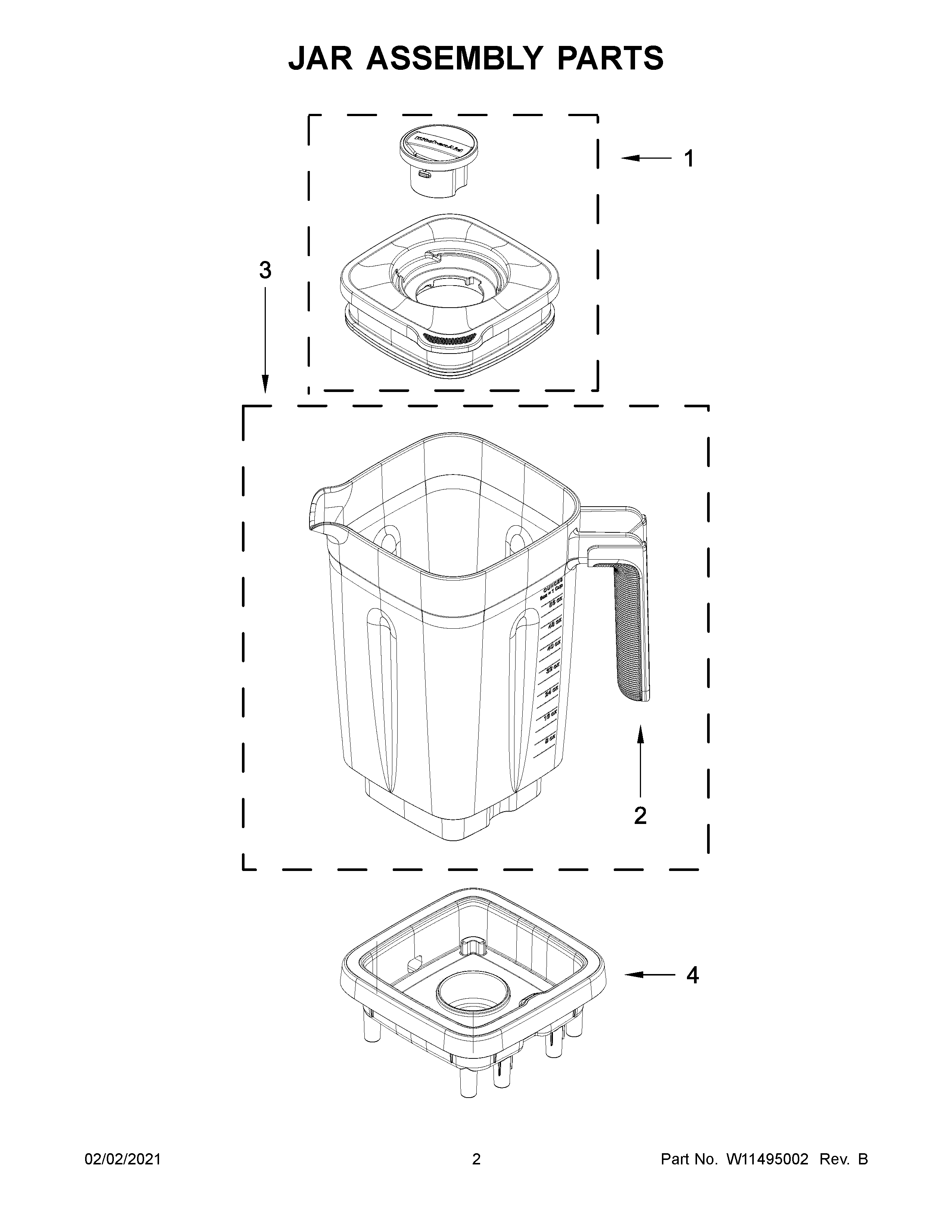

Jar assembly parts Diagram

Jar assembly

Part #W11387670
Replaced by #W11433178
?
Manufacturer substitution
This part replaces W11387670. Substitute parts can look different from the original.
Back Order
$95.99 |
9% OFF
Phone Price: $105.99
PLUG - COUPL#3

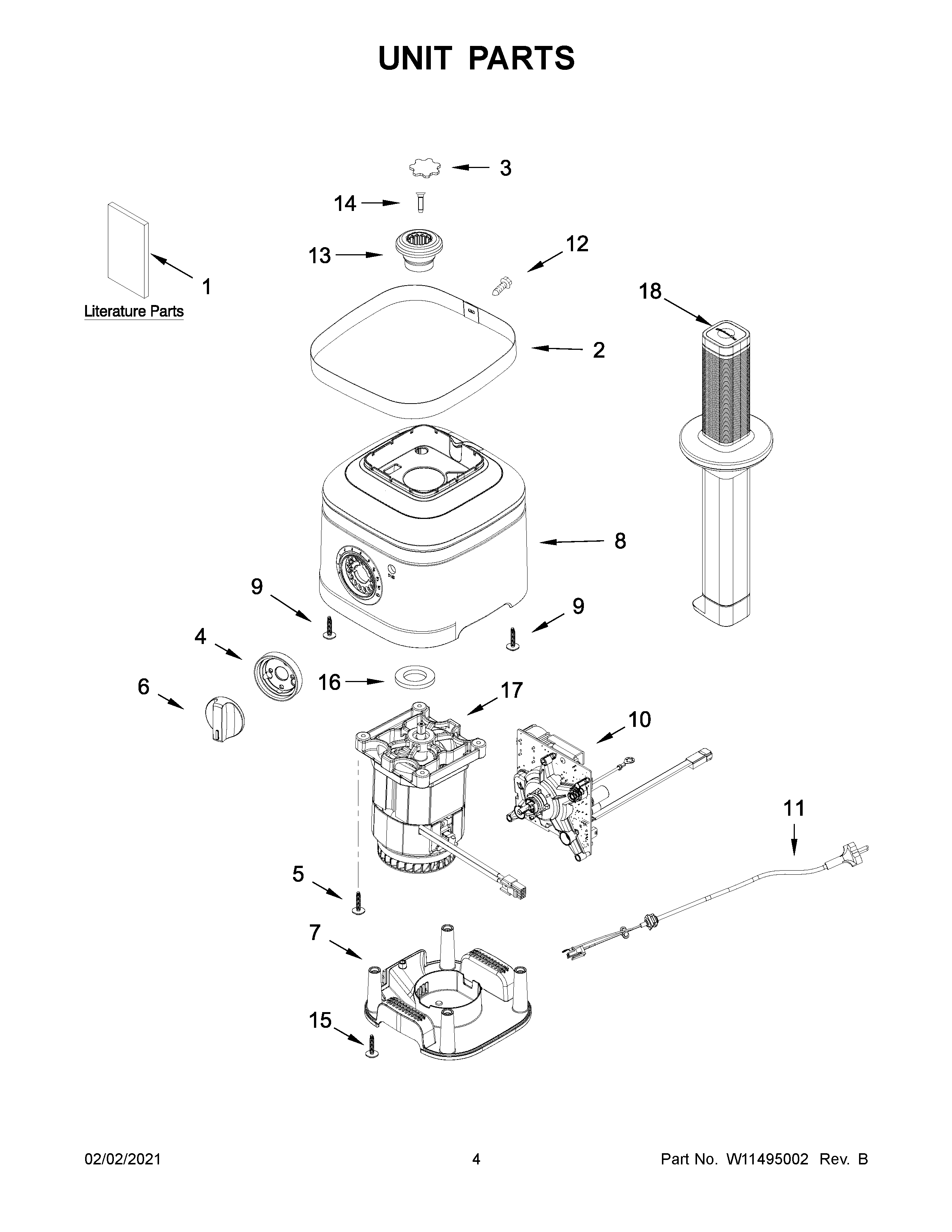

Unit parts Diagram

Plug, coupler

Part #W11219397
Replaced by #W11486757
?
Manufacturer substitution
This part replaces W11219397. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.19 |
19% OFF
Phone Price: $5.19
UPPER BASE (MATTE BLACK)#8

Unit parts Diagram

In Stock
$87.42
UPPER BASE (LIQUID GRAPHITE)#8E

Unit parts Diagram

In Stock
$89.47
KNOB - ROTAR#6

Unit parts Diagram

Knob - rotar

Part #W11357978
In Stock
$57.80
TRIMBAND#2

Unit parts Diagram

Trimband

Part #W11179370
In Stock
$32.87
POWER CORD#11

Unit parts Diagram

Power cord

Part #W11226930
In Stock
$32.96
PAD, JAR#4

Jar assembly parts Diagram

Pad, jar

Part #W11396201
In Stock
$48.79 |
9% OFF
Phone Price: $53.79
UPPER BASE (BLUE STEEL)#8D

Unit parts Diagram

In Stock
$87.42
UPPER BASE (WHITE)#8H

Unit parts Diagram

Upper base (white)

Part #W11287121
In Stock
$87.42
