Model # 315115400 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315115400 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

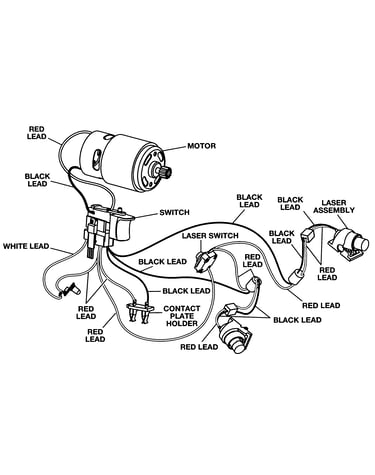

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Switch Assembly 270001107
#14

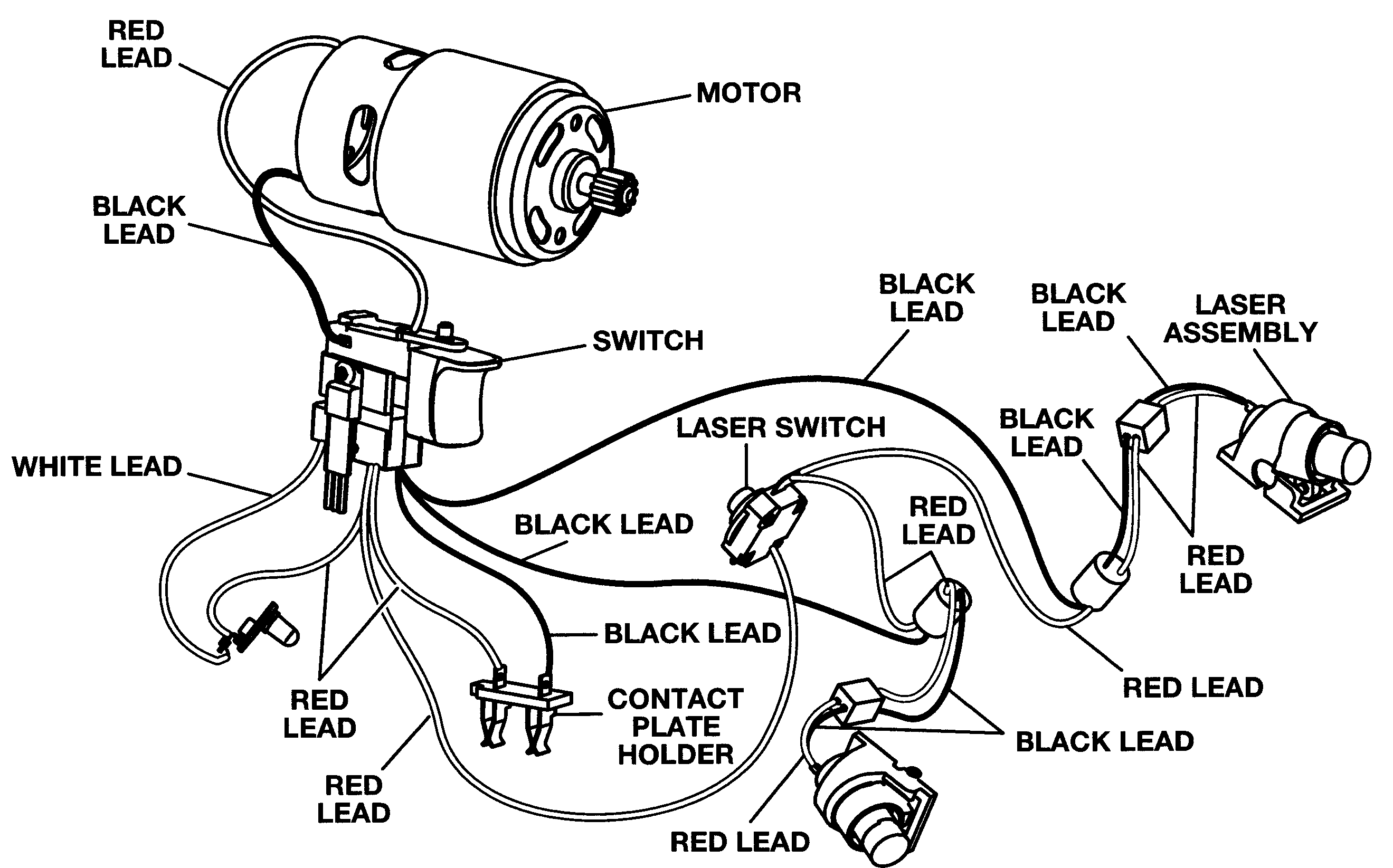

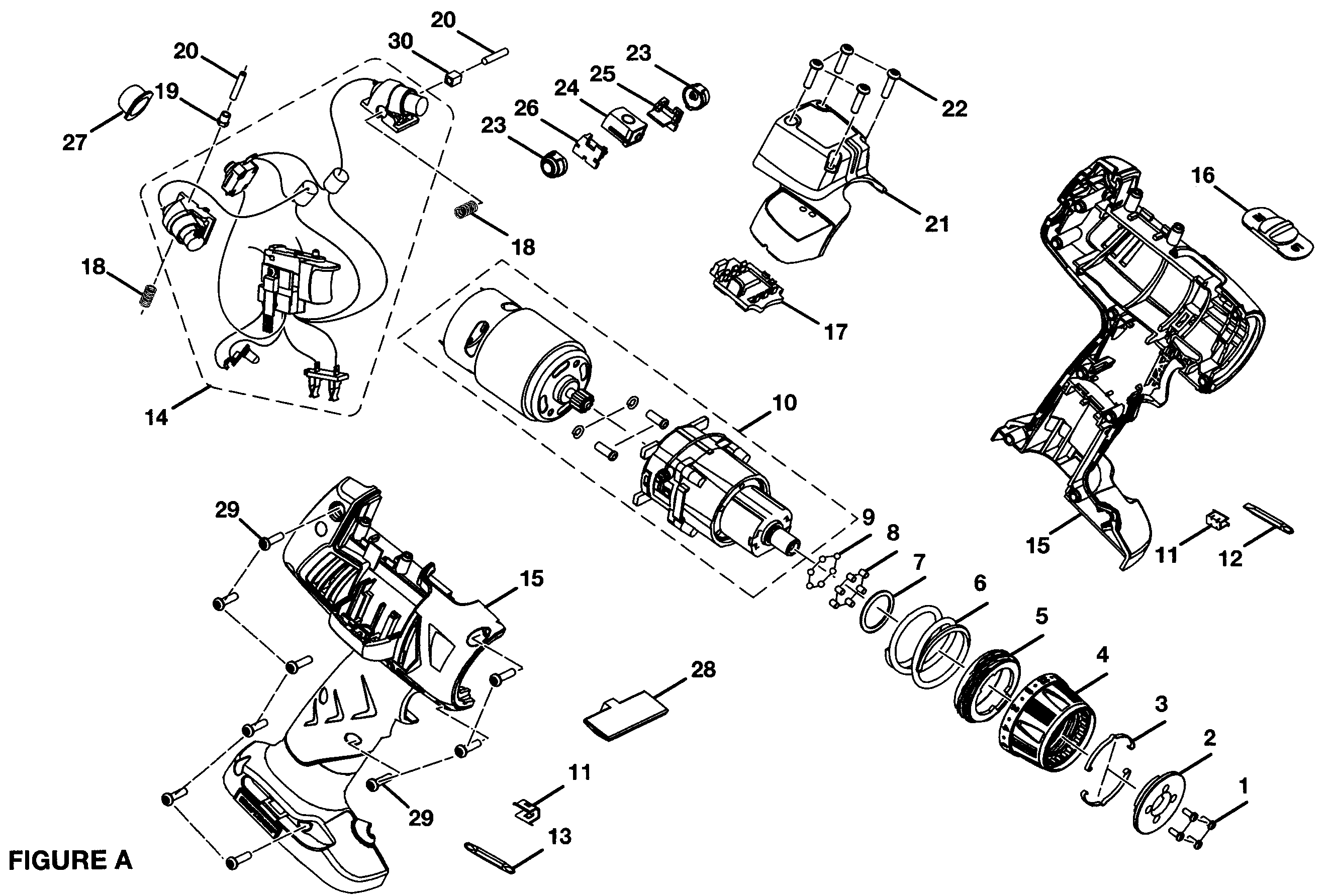

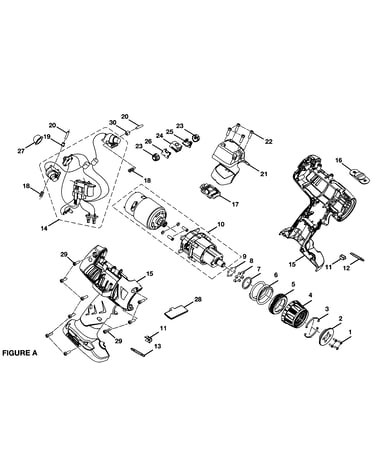

Motor assy diagram

Switch assembly

Part #270001107

The manufacturer no longer makes this part, and there's no substitute part

Side Level 301434001
#23

Motor assy diagram

Side level

Part #301434001

The manufacturer no longer makes this part, and there's no substitute part

Forward And Reverse Button 343502002
#28

Motor assy diagram

Forward and reverse button

Part #343502002

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 200293048
#10

Motor assy diagram

Motor assembly

Part #200293048

The manufacturer no longer makes this part, and there's no substitute part

Cover 200202402
#21

Motor assy diagram

Cover

Part #200202402

The manufacturer no longer makes this part, and there's no substitute part

Adj. Nut 660421002
#30

Motor assy diagram

Adj. nut

Part #660421002

The manufacturer no longer makes this part, and there's no substitute part

Data Label 940237097
#5

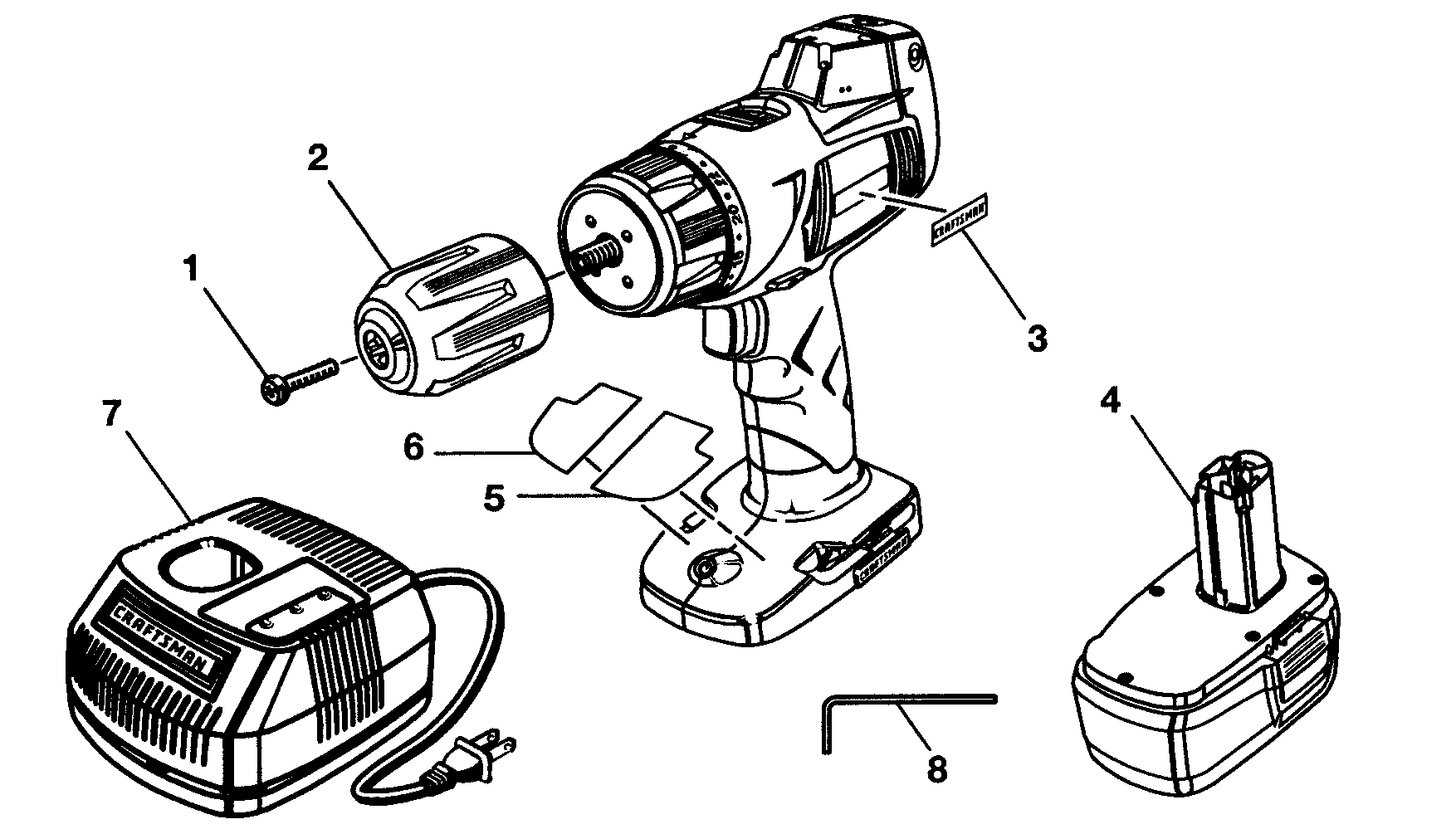

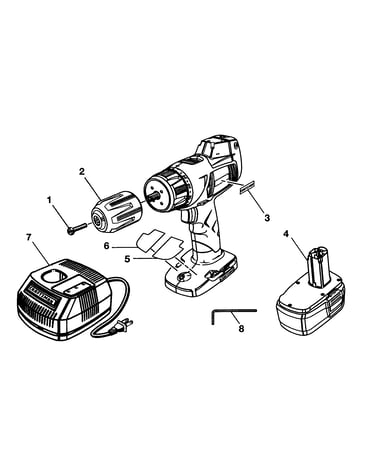

Drill diagram

Data label

Part #940237097

The manufacturer no longer makes this part, and there's no substitute part

Top & Rear 301433001
#24

Motor assy diagram

Top & rear

Part #301433001

The manufacturer no longer makes this part, and there's no substitute part

Laser Base 513705001
#17

Motor assy diagram

Laser base

Part #513705001

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 511333001
#5

Motor assy diagram

Sleeve

Part #511333001

The manufacturer no longer makes this part, and there's no substitute part
