Model # 34029520050 Official LXI stereo phonograph

Here are the diagrams and repair parts for Official LXI 34029520050 stereo phonograph, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Leaf Spring A104384
#104

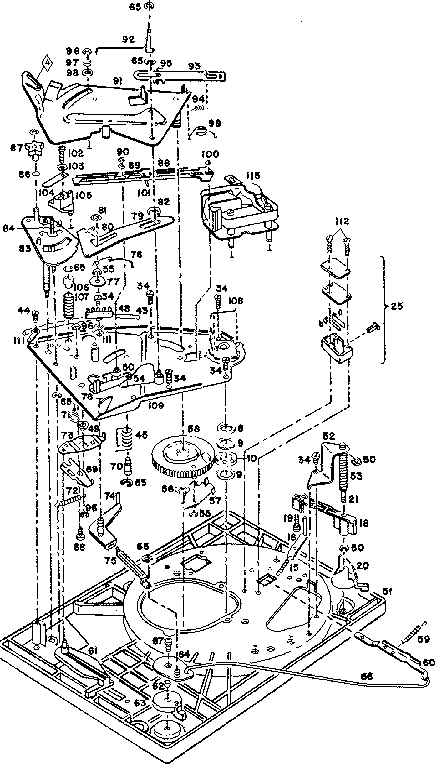

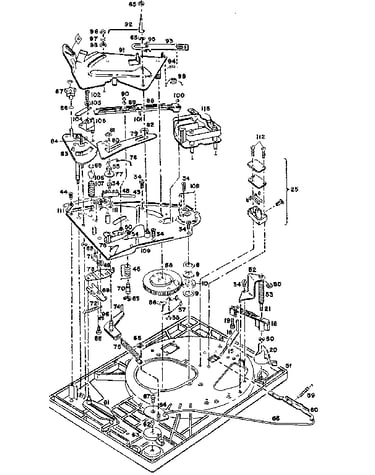

Chassis diagram

Leaf spring

Part #A104384

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 152009
#312

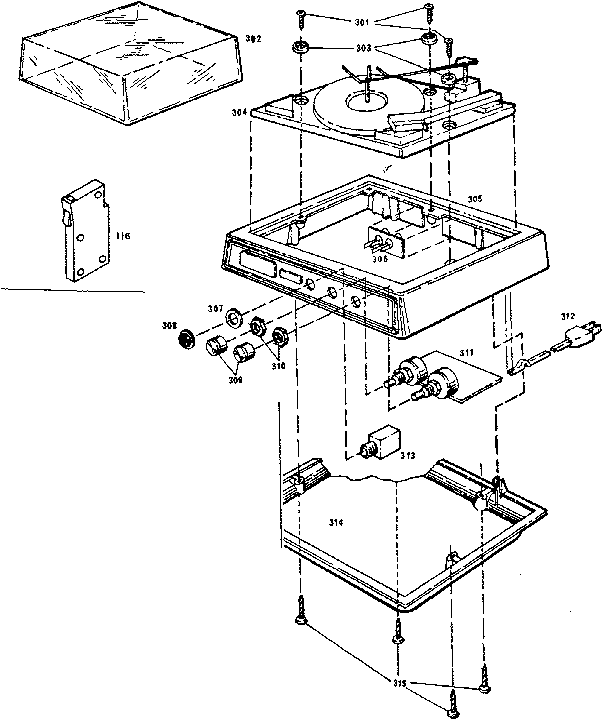

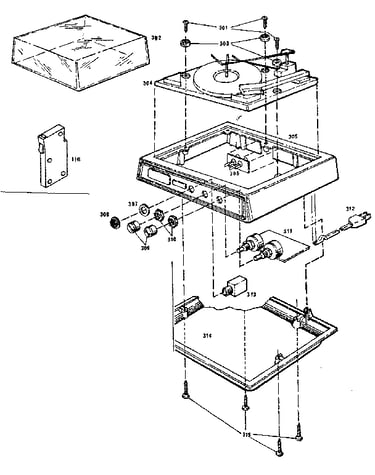

Cabinet diagram

Line cord

Part #152009

The manufacturer no longer makes this part, and there's no substitute part

Control Washer A105660
#77

Chassis diagram

Control washer

Part #A105660

The manufacturer no longer makes this part, and there's no substitute part

Lever Switch A108984
#60

Chassis diagram

Lever switch

Part #A108984

The manufacturer no longer makes this part, and there's no substitute part

Restrictor A106080
#30

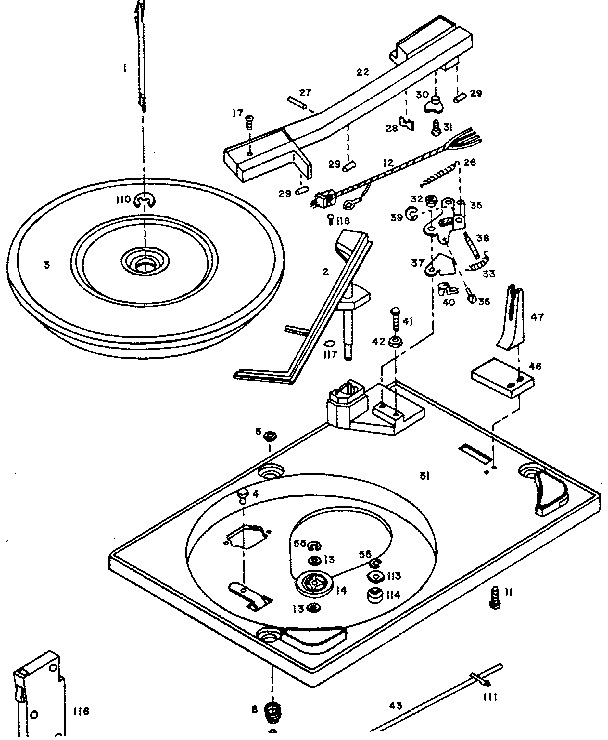

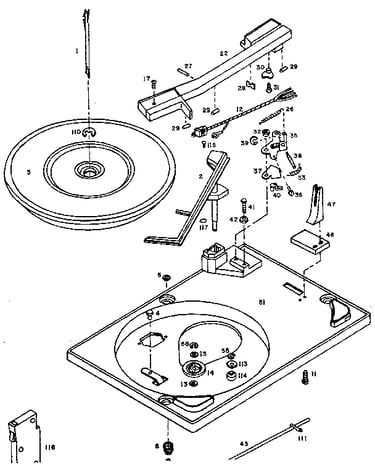

Turntable diagram

Restrictor

Part #A106080

The manufacturer no longer makes this part, and there's no substitute part

Control Arm Assembly B1104693
#2

Turntable diagram

Control arm assembly

Part #B1104693

The manufacturer no longer makes this part, and there's no substitute part

Screw 6ba X 3/16" For Cart. A107675
#17

Turntable diagram

Screw 6ba x 3/16" for cart.

Part #A107675

The manufacturer no longer makes this part, and there's no substitute part

Detent Sprin A106627
#76

Chassis diagram

Detent sprin

Part #A106627

The manufacturer no longer makes this part, and there's no substitute part

Locking Sleeve A106047
#40

Turntable diagram

Locking sleeve

Part #A106047

The manufacturer no longer makes this part, and there's no substitute part

Circlip A101526
#82

Chassis diagram

Circlip

Part #A101526

The manufacturer no longer makes this part, and there's no substitute part
