Model # 7KCD250T0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid 7KCD250T0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Mounting Gasket 4211334
#8

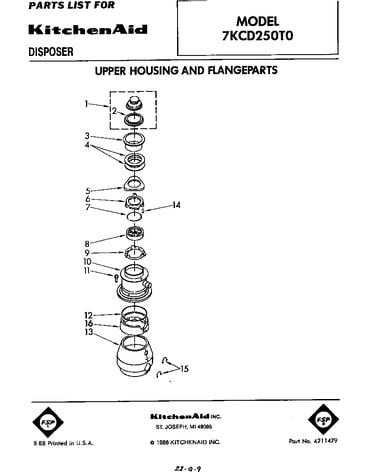

Upper housing and flange diagram

Mounting gasket

Part #4211334

Replaced by #WP4211334

?
Manufacturer substitution
This part replaces 4211334. Substitute parts can look different from the original.
This item is not returnable
$22.59
18% OFF Phone Price : $27.59
In Stock
Installation Instructions LIT4211433

#NI

All parts diagram

Installation instructions

Part #LIT4211433

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 4211448
#7

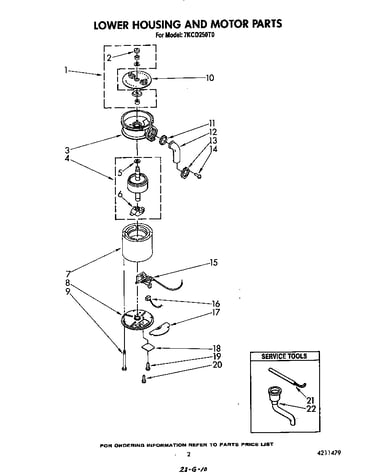

Lower housing and motor diagram

Stator assembly

Part #4211448

The manufacturer no longer makes this part, and there's no substitute part

Container, Body Assembly 4211336
#10

Upper housing and flange diagram

Container, body assembly

Part #4211336

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Thru (4) 4211335
#11

Upper housing and flange diagram

Bolt, thru (4)

Part #4211335

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide LIT4211432

#NI

All parts diagram

Use and care guide

Part #LIT4211432

The manufacturer no longer makes this part, and there's no substitute part

Wire Shield 4211326
#17

Lower housing and motor diagram

Wire shield

Part #4211326

The manufacturer no longer makes this part, and there's no substitute part

Washer 4211321
#5

Lower housing and motor diagram

Washer

Part #4211321

The manufacturer no longer makes this part, and there's no substitute part

Ground Screw 4211330
#20

Lower housing and motor diagram

Ground screw

Part #4211330

The manufacturer no longer makes this part, and there's no substitute part

Protect, Overload 4211450
#16

Lower housing and motor diagram

Protect, overload

Part #4211450

The manufacturer no longer makes this part, and there's no substitute part
