Model # ML140 Official Makita rechargeable flashlight

Here are the diagrams and repair parts for Official Makita ML140 rechargeable flashlight, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Switch 651709-3
#13

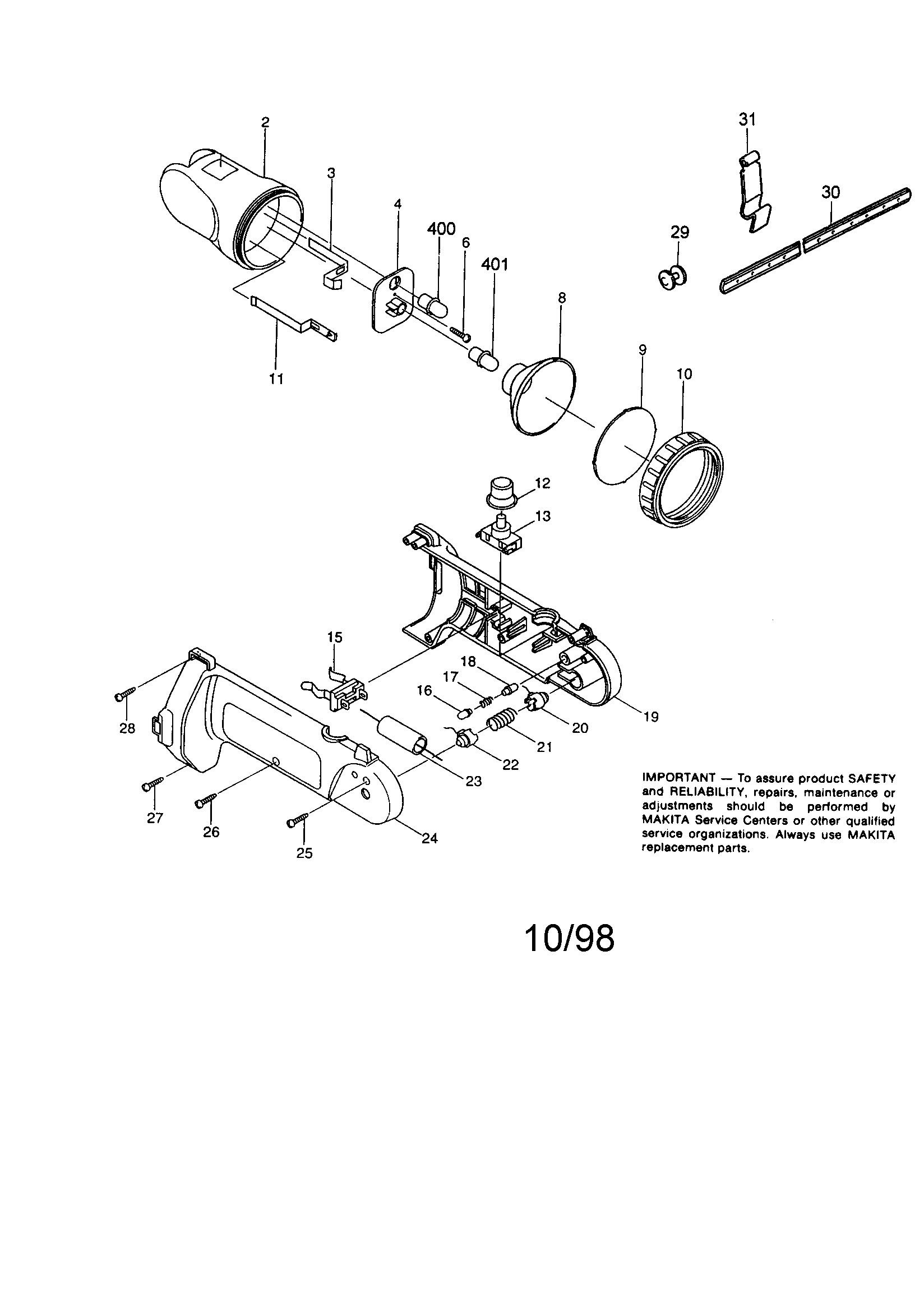

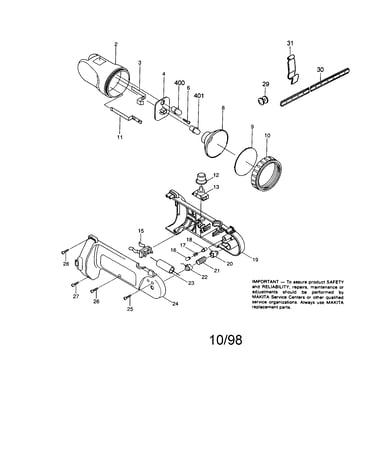

Rechargeable flashlight diagram

Switch

Part #651709-3

The manufacturer no longer makes this part, and there's no substitute part

Flashlight Bulb A-90233
Flashlight bulb

Part #A-90233

The manufacturer no longer makes this part, and there's no substitute part

Retainer GM00000010
#10

Rechargeable flashlight diagram

Retainer

Part #GM00000010

The manufacturer no longer makes this part, and there's no substitute part

Battery Holder 643926-9
#15

Rechargeable flashlight diagram

Battery holder

Part #643926-9

The manufacturer no longer makes this part, and there's no substitute part

Cntc Plate GM00000110
#3

Rechargeable flashlight diagram

Cntc plate

Part #GM00000110

The manufacturer no longer makes this part, and there's no substitute part

Reflector GM00000130
#8

Rechargeable flashlight diagram

Reflector

Part #GM00000130

The manufacturer no longer makes this part, and there's no substitute part

Head, Ml14 GM00000020
#2

Rechargeable flashlight diagram

Head, ml14

Part #GM00000020

The manufacturer no longer makes this part, and there's no substitute part

Cnct Plate GM00000120
#11

Rechargeable flashlight diagram

Cnct plate

Part #GM00000120

The manufacturer no longer makes this part, and there's no substitute part

Set Plate 343579-1
#31

Rechargeable flashlight diagram

Set plate

Part #343579-1

The manufacturer no longer makes this part, and there's no substitute part

Housing (l) GM00000060
#19

Rechargeable flashlight diagram

Housing (l)

Part #GM00000060

The manufacturer no longer makes this part, and there's no substitute part
