Model # 900275131 Official Craftsman 1/2" industrial electric impact wrench

Here are the diagrams and repair parts for Official Craftsman 900275131 1/2" industrial electric impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Switch Support 449472-00
#36

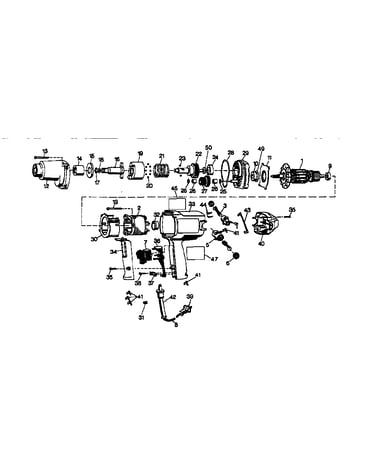

Unit parts diagram

Switch support

Part #449472-00

The manufacturer no longer makes this part, and there's no substitute part

Baffle 447786-00
#30

Unit parts diagram

Baffle

Part #447786-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing 450736-00
#24

Unit parts diagram

Bearing

Part #450736-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 450667-00
#50

Unit parts diagram

Washer

Part #450667-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#32

Unit parts diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush Holder 448083-01
#5

Unit parts diagram

Power tool motor brush holder

Part #448083-01

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
#10

Unit parts diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Plate 448079-00
#11

Unit parts diagram

Plate

Part #448079-00

The manufacturer no longer makes this part, and there's no substitute part

Spring Ring 86947-00
#17

Unit parts diagram

Spring ring

Part #86947-00

The manufacturer no longer makes this part, and there's no substitute part

Wash 135089-00
#25

Unit parts diagram

Wash

Part #135089-00

The manufacturer no longer makes this part, and there's no substitute part
