Whirlpool
Countertop Microwave

Model #MT7076XDQ0 Whirlpool microwave

Here are the diagrams and repair parts for Whirlpool MT7076XDQ0 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 85 parts

    Microwave Screw

    #11

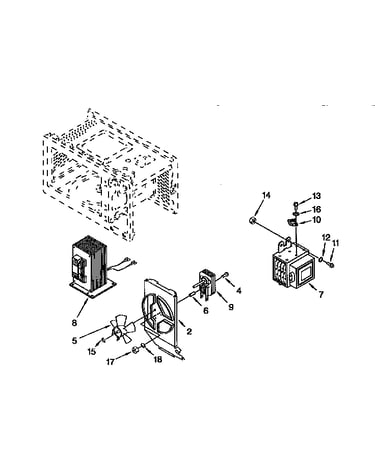

    Magnetron and air flow Diagram

    Microwave screw

    Part #8169480
    ?
    Manufacturer substitution
    This part replaces 4393043. Substitute parts can look different from the original.
    This part replaces 4393043
    $12.49

    In Stock

    Lock Washer

    #12

    Magnetron and air flow Diagram

    Lock washer

    Part #WP8533914
    ?
    Manufacturer substitution
    This part replaces 4393059. Substitute parts can look different from the original.
    This part replaces 4393059
    This item is not returnable
    $3.79

    In Stock

    Door Hinge

    #3

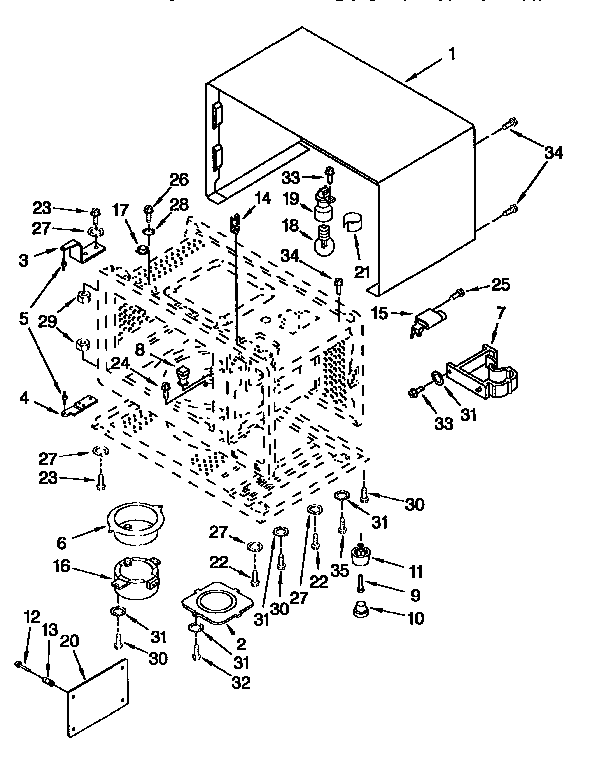

    Cabinet Diagram

    Door hinge

    Part #4392965

    The manufacturer no longer makes this part, and there's no substitute part

    Door Hinge

    #4

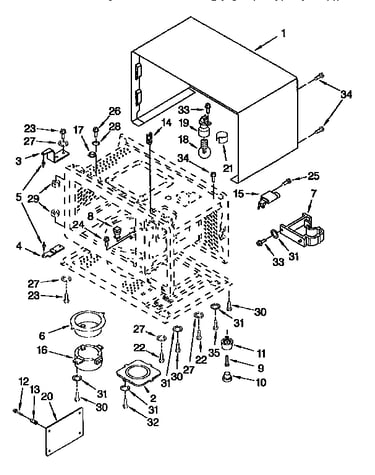

    Cabinet Diagram

    Door hinge

    Part #4392966

    The manufacturer no longer makes this part, and there's no substitute part

    Bracket Support

    #7

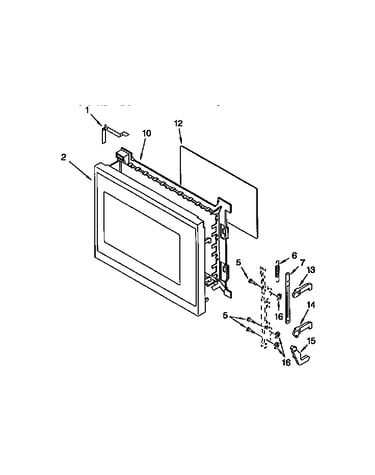

    Door Diagram

    Bracket support

    Part #4392972

    The manufacturer no longer makes this part, and there's no substitute part

    Spring

    #4

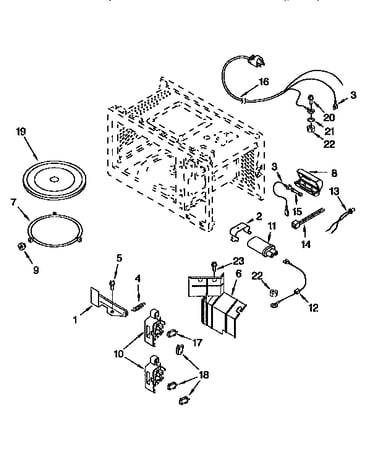

    Interior Diagram

    Spring

    Part #4392982

    The manufacturer no longer makes this part, and there's no substitute part

    Door Latch

    #15

    Door Diagram

    Door latch

    Part #4392995

    The manufacturer no longer makes this part, and there's no substitute part

    Support

    #7

    Interior Diagram

    Support

    Part #4392996

    The manufacturer no longer makes this part, and there's no substitute part

    Fuse Block

    #8

    Interior Diagram

    Fuse block

    Part #4392998

    The manufacturer no longer makes this part, and there's no substitute part

    Bushing

    #13

    Cabinet Diagram

    Bushing

    Part #4393009

    The manufacturer no longer makes this part, and there's no substitute part
