Model # 31519641 Official Craftsman 5" bench grinder

Here are the diagrams and repair parts for Official Craftsman 31519641 5" bench grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Screw 1-930993-01
#3

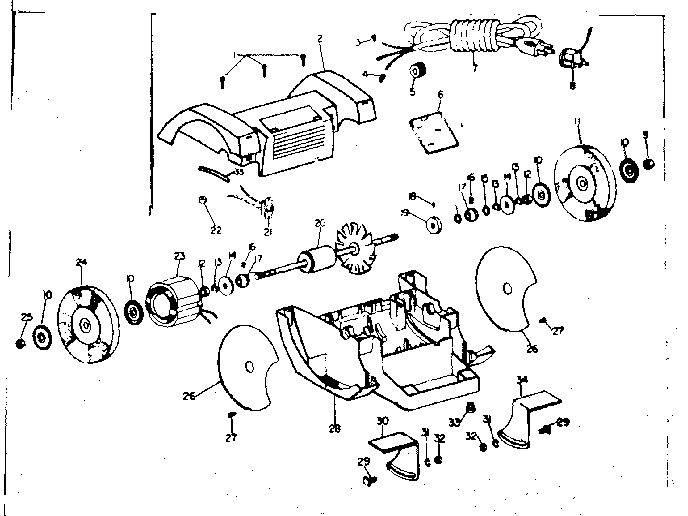

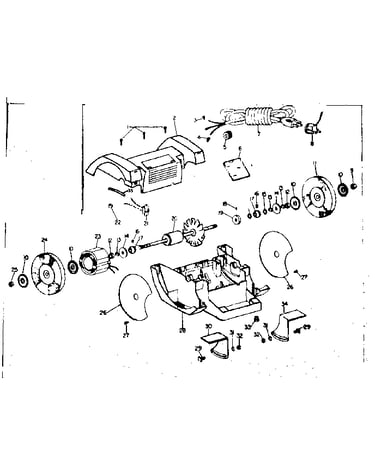

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Grinding Wheel 2-623202-02
#24

Unit parts diagram

Grinding wheel

Part #2-623202-02

The manufacturer no longer makes this part, and there's no substitute part

Wheel Washer 1-623142-00
#10

Unit parts diagram

Wheel washer

Part #1-623142-00

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 1-929226-801
#9

Unit parts diagram

Hex nut

Part #1-929226-801

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 1-623173-01
#4

Unit parts diagram

Wire connctr

Part #1-623173-01

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 2-623175-00
#26

Unit parts diagram

Cover plate

Part #2-623175-00

The manufacturer no longer makes this part, and there's no substitute part

Fstnng Screw 1-940049-07
#1

Unit parts diagram

Fstnng screw

Part #1-940049-07

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 3/8 1-929226-802
#25

Unit parts diagram

Hex nut 3/8

Part #1-929226-802

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930091-04
#27

Unit parts diagram

Screw

Part #1-930091-04

The manufacturer no longer makes this part, and there's no substitute part

Grinding Wheel 2-623202-01
#11

Unit parts diagram

Grinding wheel

Part #2-623202-01

The manufacturer no longer makes this part, and there's no substitute part
