Sony CCD-FX511 8mm camera Parts

Here are the diagrams and repair parts for Sony CCD-FX511 8mm camera, as well as links to manuals and error code tables, if available.

Sony CCD-FX511 8mm camera
By Schematic

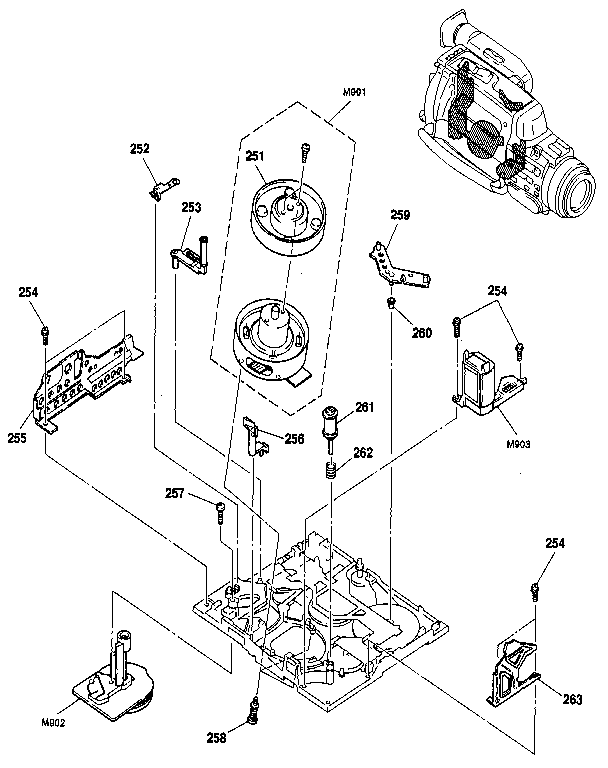

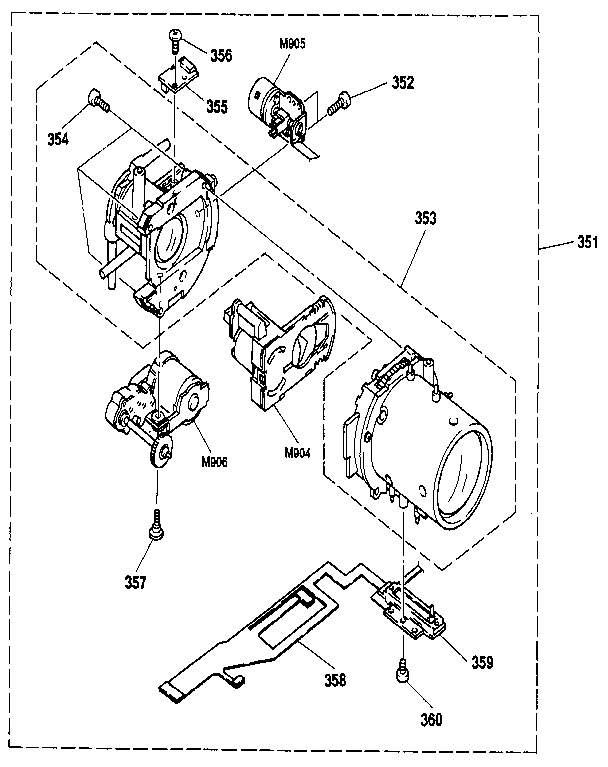

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forCCD-FX511 Camcorders

  • Arm for Sony CCD-FX511 - Part X-3941-266-1

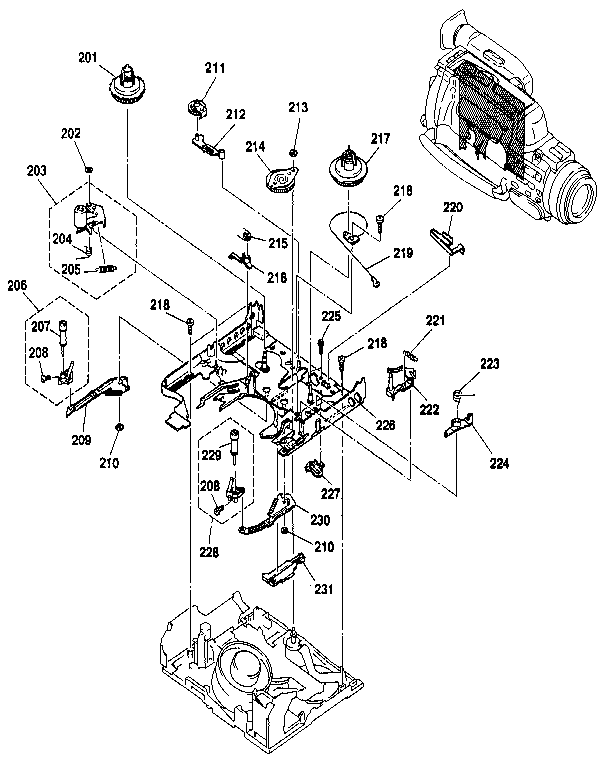

    Ls chassis assembly diagram

    Arm

    Part #X-3941-266-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Torsion Bar for Sony CCD-FX511 - Part 3-945-773-01

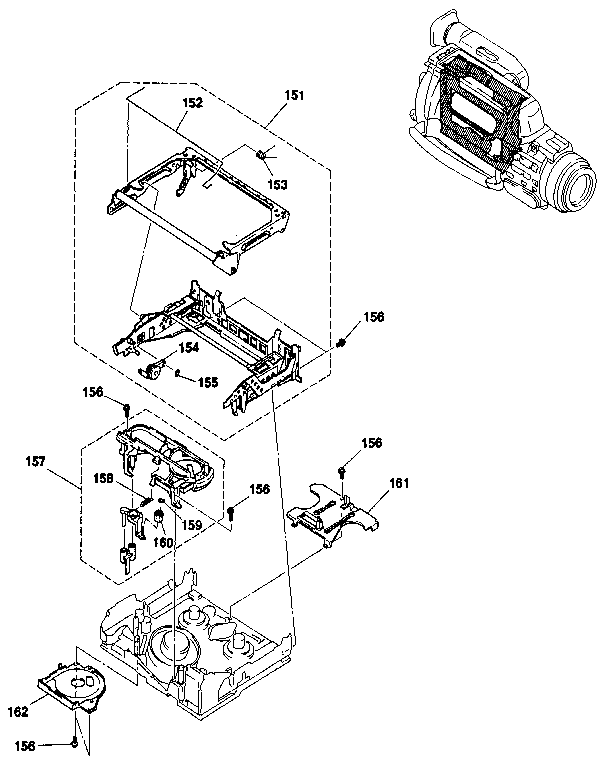

    Cassette compartment assembly diagram

    Torsion Bar

    Part #3-945-773-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Arm for Sony CCD-FX511 - Part 3-945-734-01

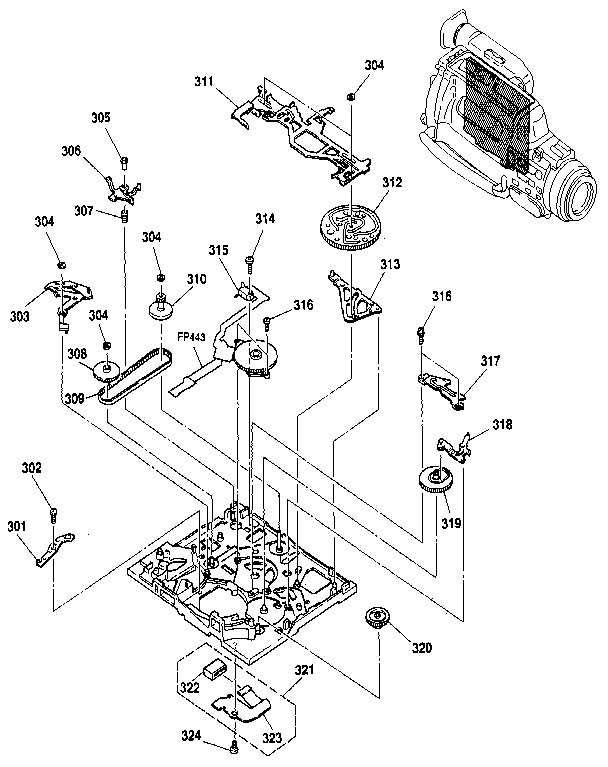

    Mechanism chassis assembly (2) diagram

    Arm

    Part #3-945-734-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor Block for Sony CCD-FX511 - Part A-7091-810-A

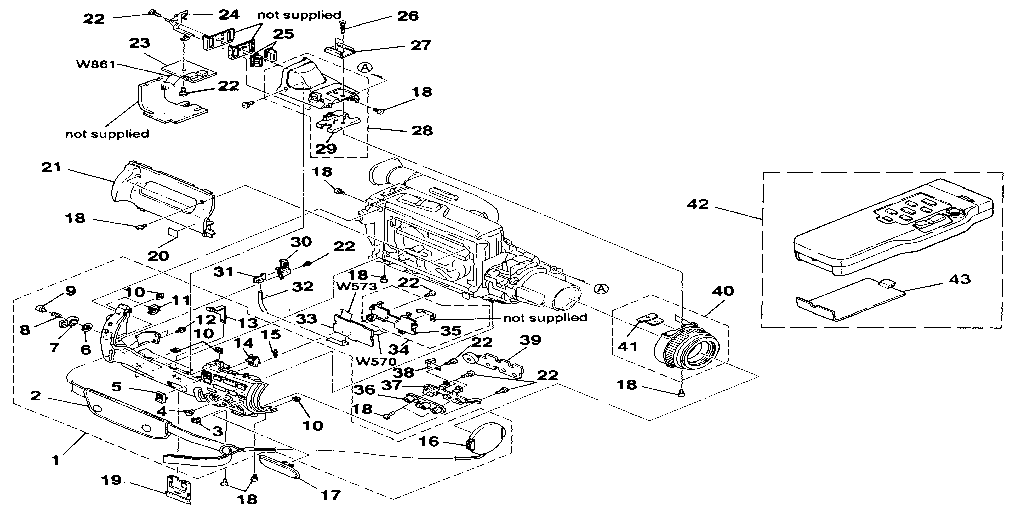

    Cabinet (upper), (l) assembly diagram

    Capacitor Block

    Part #A-7091-810-A

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal for Sony CCD-FX511 - Part 3-946-857-01

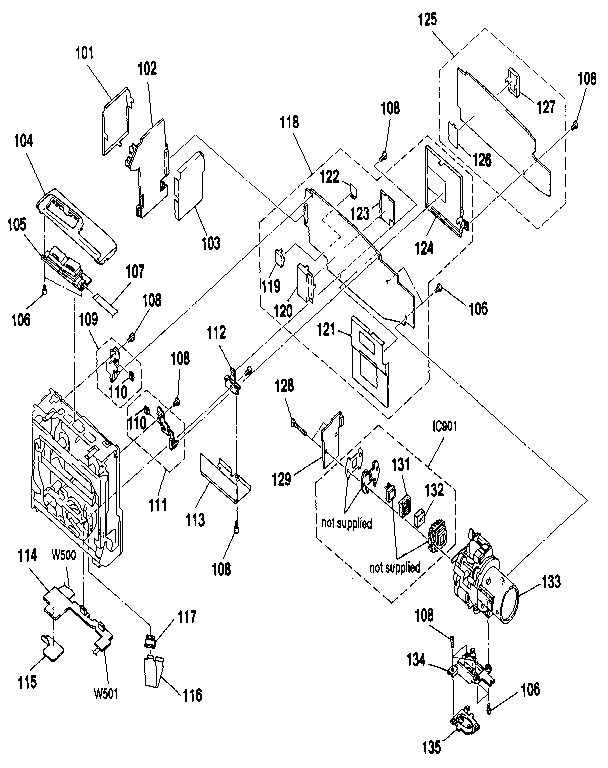

    Main board assembly diagram

    Seal

    Part #3-946-857-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Shield for Sony CCD-FX511 - Part X-3941-499-1

    Main board assembly diagram

    Shield

    Part #X-3941-499-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulator for Sony CCD-FX511 - Part 3-947-660-01

    Main board assembly diagram

    Insulator

    Part #3-947-660-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Label Cautio for Sony CCD-FX511 - Part 3-704-256-01

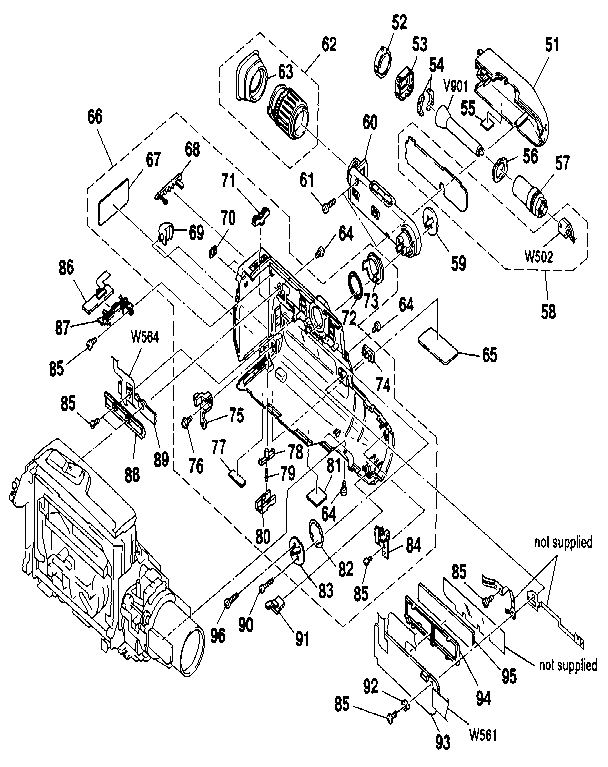

    Cabinet (r), evf assembly diagram

    Label Cautio

    Part #3-704-256-01

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Sony CCD-FX511 - Part 3-728-103-11

    Mechanism chassis assembly (2) diagram

    Screw

    Part #3-728-103-11

    The manufacturer no longer makes this part, and there's no substitute part

  • Button for Sony CCD-FX511 - Part 3-946-246-01

    Cabinet (r), evf assembly diagram

    Button

    Part #3-946-246-01

    The manufacturer no longer makes this part, and there's no substitute part
