Model # CH30M-1S Official Thermal Zone 12 seer split-system heat pump

Here are the diagrams and repair parts for Official Thermal Zone CH30M-1S 12 seer split-system heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Compressor 914654
#2

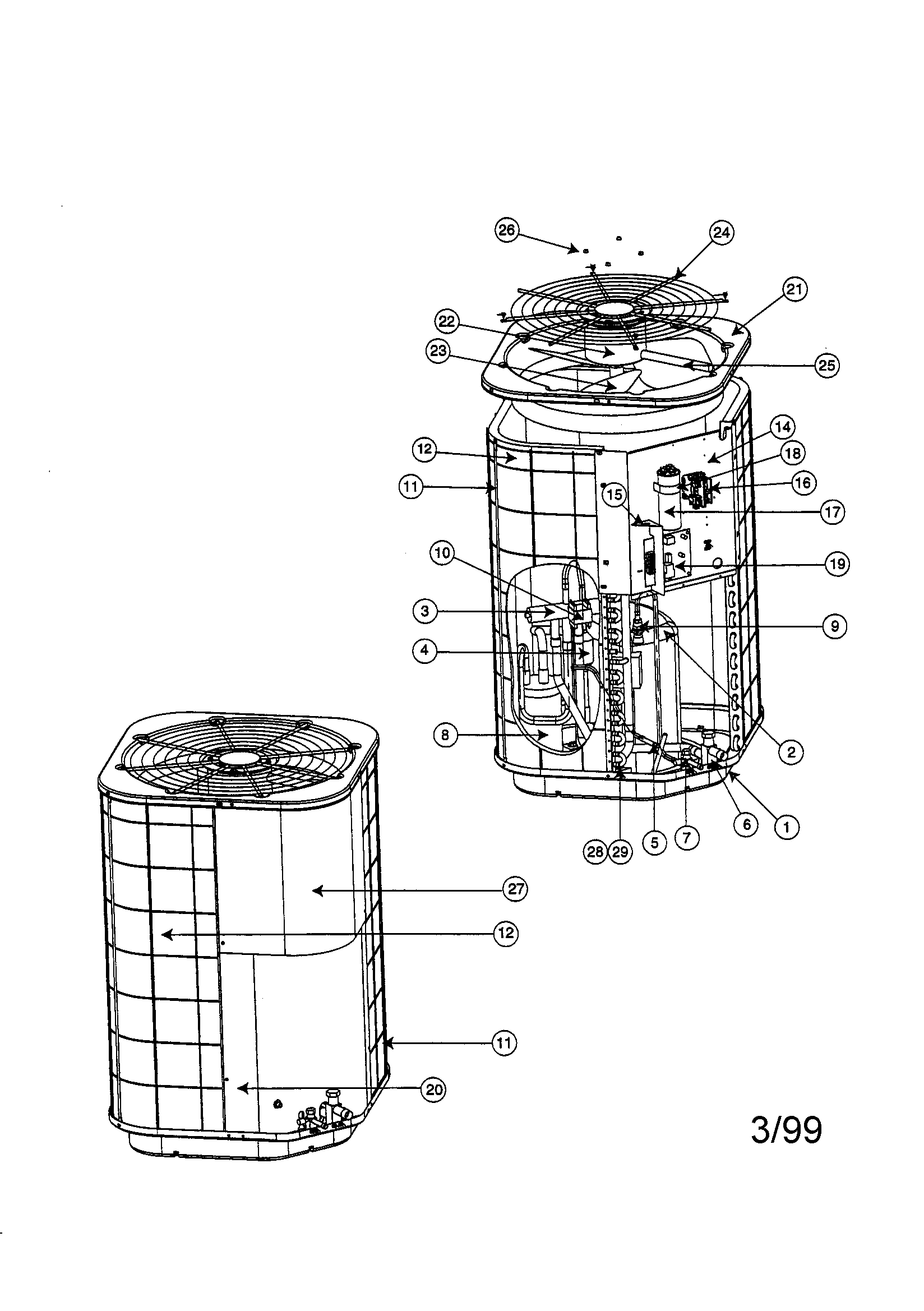

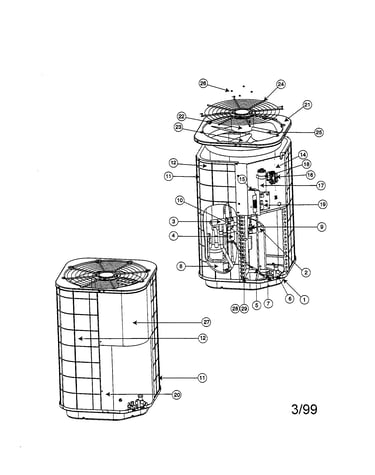

12 seer split system heat pump diagram

Compressor

Part #914654

The manufacturer no longer makes this part, and there's no substitute part

Cap Strap 258780
#18

12 seer split system heat pump diagram

Cap strap

Part #258780

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 621305
#22

12 seer split system heat pump diagram

Fan motor

Part #621305

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 667211
#23

12 seer split system heat pump diagram

Fan blade

Part #667211

The manufacturer no longer makes this part, and there's no substitute part

Reversing Valve 668767
#3

12 seer split system heat pump diagram

Reversing valve

Part #668767

The manufacturer no longer makes this part, and there's no substitute part

Compressor Bolt 600284
#29

12 seer split system heat pump diagram

Compressor bolt

Part #600284

The manufacturer no longer makes this part, and there's no substitute part

Reversing Valve Coil 668770
#10

12 seer split system heat pump diagram

Reversing valve coil

Part #668770

The manufacturer no longer makes this part, and there's no substitute part

Access Panel 374273Z
#20

12 seer split system heat pump diagram

Access panel

Part #374273Z

The manufacturer no longer makes this part, and there's no substitute part

Motor Wire Condduit 258951
#25

12 seer split system heat pump diagram

Motor wire condduit

Part #258951

The manufacturer no longer makes this part, and there's no substitute part

Contactor 621661
#16

12 seer split system heat pump diagram

Contactor

Part #621661

The manufacturer no longer makes this part, and there's no substitute part
