Model # 706179470 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706179470 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Label 1007505
#16

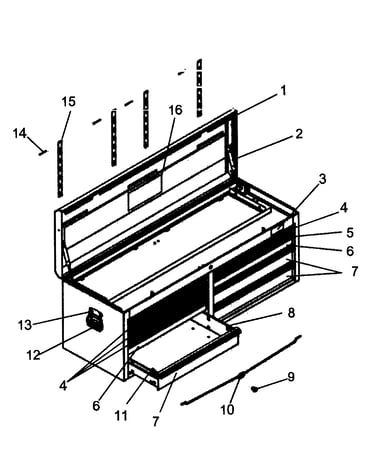

Tool chest diagram

Label

Part #1007505

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle M10647A1
#12

Tool chest diagram

Tool chest handle

Part #M10647A1

The manufacturer no longer makes this part, and there's no substitute part

4"drwr-red 1008289-ERED
#7

Tool chest diagram

4"drwr-red

Part #1008289-ERED

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Trim 1008561
#5

Tool chest diagram

Tool chest drawer trim

Part #1008561

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock M11080A5-PN
#9

Tool chest diagram

Tool chest lock

Part #M11080A5-PN

The manufacturer no longer makes this part, and there's no substitute part

2"drwr Red 1008286-ERED
#4

Tool chest diagram

2"drwr red

Part #1008286-ERED

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide 27827
#11

Tool chest diagram

Tool chest drawer slide

Part #27827

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Cam A25604
#10

Tool chest diagram

Tool chest lock cam

Part #A25604

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lid Damper 9317A7
#2

Tool chest diagram

Tool chest lid damper

Part #9317A7

The manufacturer no longer makes this part, and there's no substitute part

Cover Clip M15524A1
#1

Tool chest diagram

Cover clip

Part #M15524A1

The manufacturer no longer makes this part, and there's no substitute part
