Goldstar
Room Air Conditioner

Model # LW-F1830CL Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar LW-F1830CL room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

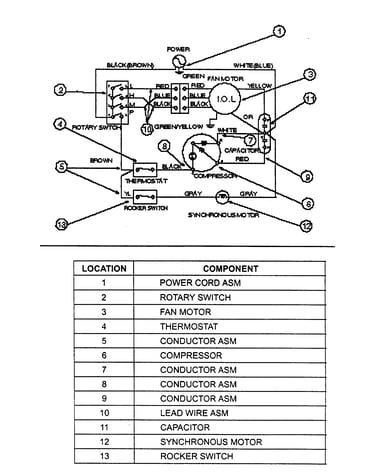

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Shroud 1H00256A
#9980

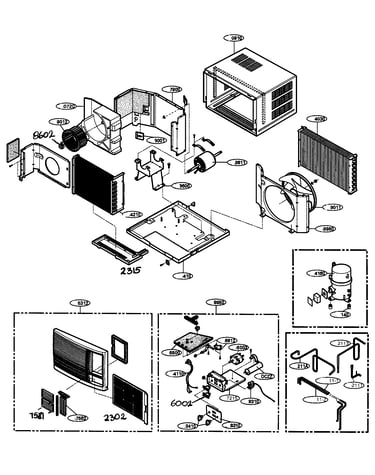

Cabinet parts diagram

Shroud

Part #1H00256A

$22.20
In Stock
Air Conditioner Grille Front 2H02567Q
#5312

Cabinet parts diagram

Air conditioner grille front

Part #2H02567Q

$103.00
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#8602

Cabinet parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Ac Cord 2H00677A
#4110

Cabinet parts diagram

Ac cord

Part #2H00677A

Replaced by #2H00677Q

?
Manufacturer substitution
This part replaces 2H00677A. Substitute parts can look different from the original.
$47.16 |
10% OFF Phone Price : $52.16
In Stock
Capacitor 2H00841T
#CZZ

Cabinet parts diagram

Capacitor

Part #2H00841T

Replaced by #6120AR2194F

?
Manufacturer substitution
This part replaces 2H00841T. Substitute parts can look different from the original.
$105.92
In Stock
Thermostat 2H01109F
#9310

Cabinet parts diagram

Thermostat

Part #2H01109F

Replaced by #2H01109L

?
Manufacturer substitution
This part replaces 2H01109F. Substitute parts can look different from the original.
$31.05 |
14% OFF Phone Price : $36.05
In Stock
Motor Assembly 2H02296A
#6811

Cabinet parts diagram

Motor assembly

Part #2H02296A

The manufacturer no longer makes this part, and there's no substitute part

Barrier 1H00255B
#7900

Cabinet parts diagram

Barrier

Part #1H00255B

The manufacturer no longer makes this part, and there's no substitute part

Rotary Switch 2H00589E
#6003

Cabinet parts diagram

Rotary switch

Part #2H00589E

The manufacturer no longer makes this part, and there's no substitute part

Scroll 1H00266A
#720

Cabinet parts diagram

Scroll

Part #1H00266A

The manufacturer no longer makes this part, and there's no substitute part
