Amana TE10085W2-TE10085W2 room air conditioner Parts
Here are the diagrams and repair parts for Amana TE10085W2-TE10085W2 room air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for TE10085W2-TE10085W2 Room Air Conditioner

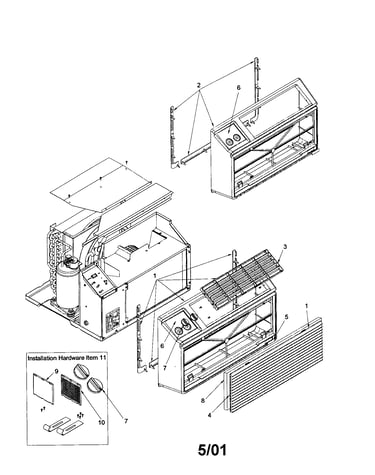

Outer case assembly diagram
Control Knob
Part #BT3075631Replaced by #WPBT3075631
Manufacturer substitutionThis part replaces BT3075631. Substitute parts can look different from the original.In Stock$56.59
Qty

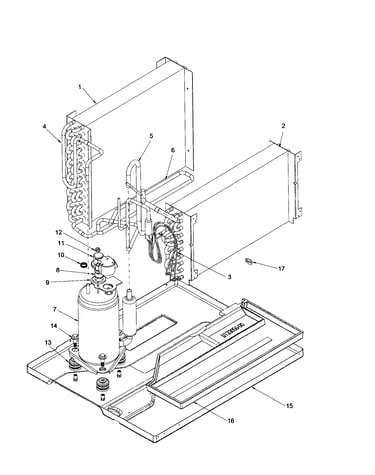

Compressor assembly diagram
Suction Assembly
Part #3393701Replaced by #Y3393701
Manufacturer substitutionThis part replaces 3393701. Substitute parts can look different from the original.In Stock$117.42QtyFan and control diagram
Fan Blade
Part #BT1086703
The manufacturer no longer makes this part, and there's no substitute part

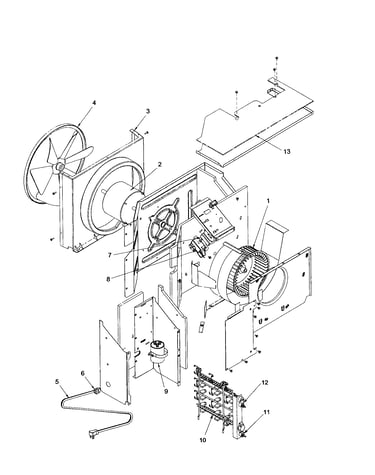

Fan and control diagram
Strain Relief
Part #BT1392107
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Compressor (tc10090w2, Tc10090w2 Rev A)
Part #BT9266114
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Control Label
Part #BT14933179
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Use Bt337500
Part #BT3375200
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Cond Coil Tubing Assembly (tc07090w1, Te07090w1 Rev A)
Part #3396501
The manufacturer no longer makes this part, and there's no substitute part
Fan and control diagram
Fan Shroud
Part #BT3311000
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Condenser Coil Assembly
Part #3396505
The manufacturer no longer makes this part, and there's no substitute part
