KitchenAid 7KCDS250T1 garbage disposal Parts
Here are the diagrams and repair parts for KitchenAid 7KCDS250T1 garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 7KCDS250T1 Garbage Disposal

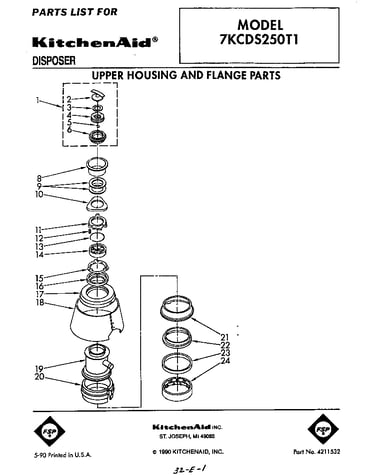

Upper housing and flange diagram
Mounting Gasket
Part #4211334Replaced by #WP4211334
Manufacturer substitutionThis part replaces 4211334. Substitute parts can look different from the original.This item is not returnableIn Stock$25.6019% OFF Phone Price : $31.60
Qty

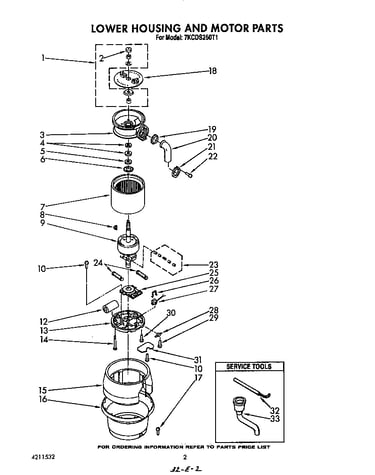

Lower housing and motor diagram
Rotor & Shaft Assembly (includes Illus. No. 24)
Part #4211534
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Emergency, Wrench Assembly
Part #4211435
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Terminal Cover
Part #4211391
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Kit, Sleeve & Seal (includes Plug, Nut, Washer, Slinger,and Sleeve)
Part #4211311
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Ground Screw
Part #4211390
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Bottom Insulation
Part #4211393
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Tapping Screw
Part #4211395
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Trim, Shell Assembly
Part #4211394
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Overload, Protector
Part #4211478
The manufacturer no longer makes this part, and there's no substitute part
