Kenmore
Countertop Microwave

Model # 5629967410 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5629967410 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Door Catch 976347
#14

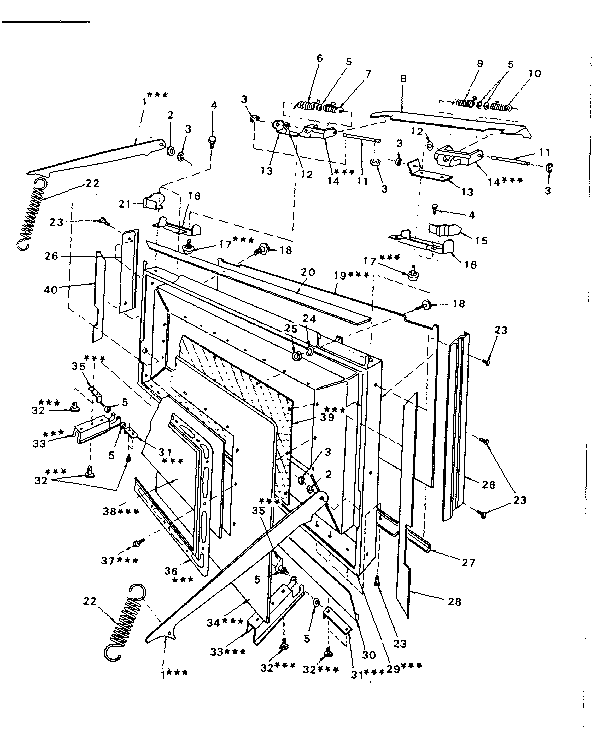

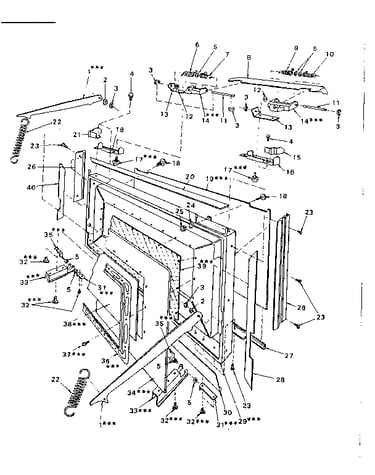

Door assembly diagram

Door catch

Part #976347

This item is not returnable
$2.29
In Stock
Retainer 976203
Retainer

Part #976203

The manufacturer no longer makes this part, and there's no substitute part

Knob 976204
Knob

Part #976204

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 979847
#12

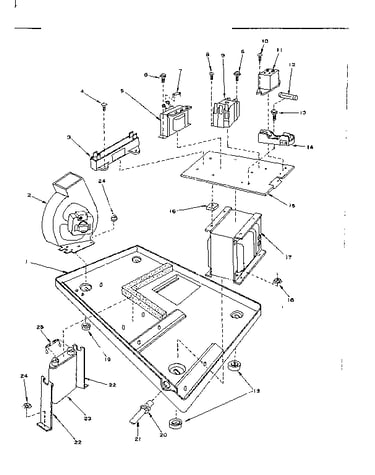

Oven base assembly diagram

Fuse 15a

Part #979847

This item is not returnable
$2.29
In Stock
Light 976173
Light

Part #976173

Replaced by #W10873798

?
Manufacturer substitution
This part replaces 976173. Substitute parts can look different from the original.
$8.66
In Stock
Cookbook 979839

#NI

All parts diagram

Cookbook

Part #979839

Replaced by #LIT979839

?
Manufacturer substitution
This part replaces 979839. Substitute parts can look different from the original.
$9.10
In Stock
Bracket 976317
#7

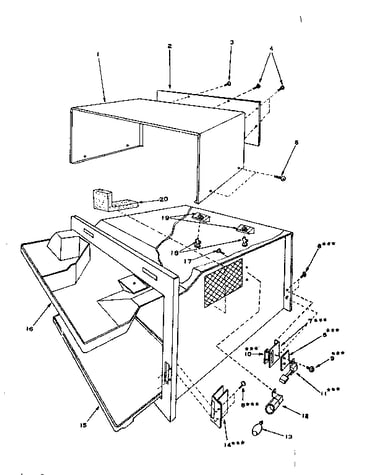

Oven right side diagram

Bracket

Part #976317

The manufacturer no longer makes this part, and there's no substitute part

Guide Roller 976354
#14

Oven right side diagram

Guide roller

Part #976354

The manufacturer no longer makes this part, and there's no substitute part

Power Switch 979845
#24

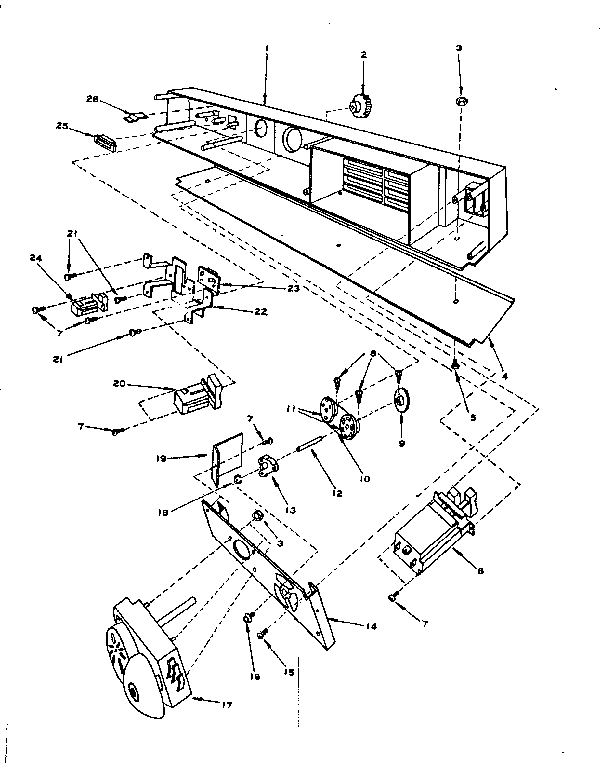

Control panel assembly diagram

Power switch

Part #979845

The manufacturer no longer makes this part, and there's no substitute part

Oven And Front Frame Assem. (not A Replaceable Part.) N/P
#4

Control panel assembly diagram

Oven and front frame assem. (not a replaceable part.)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
