Model # N2A430GKA100 Official ICP air conditioner

Here are the diagrams and repair parts for Official ICP N2A430GKA100 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Central Air Conditioner Contactor 1172472
#4

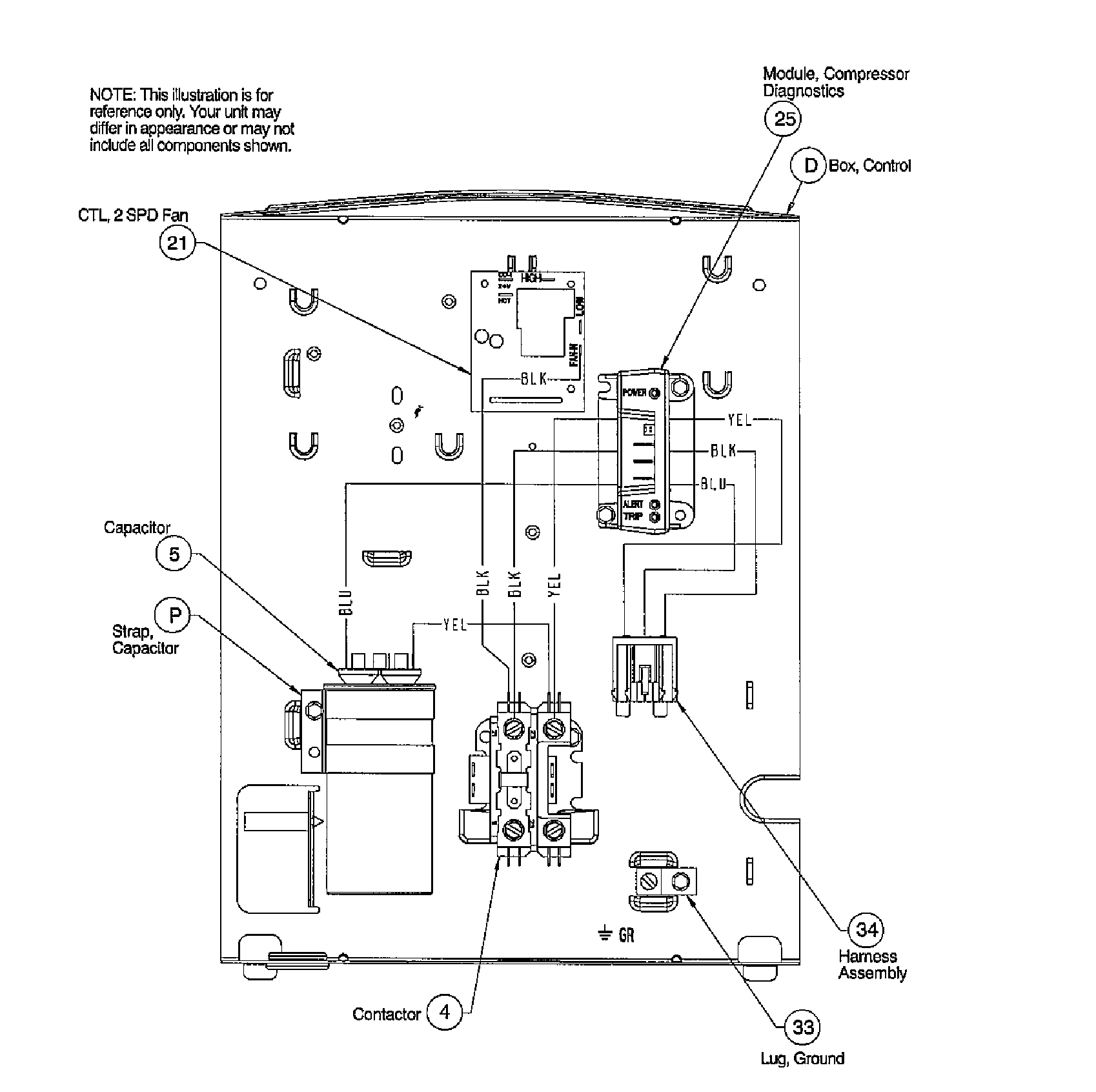

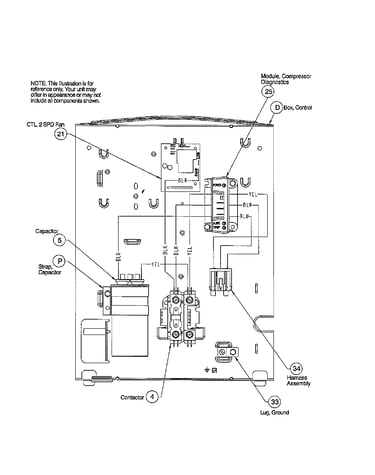

Control panel diagram

Central air conditioner contactor

Part #1172472

$61.35
8% OFF Phone Price : $66.35
In Stock
Fan 1173720
#3

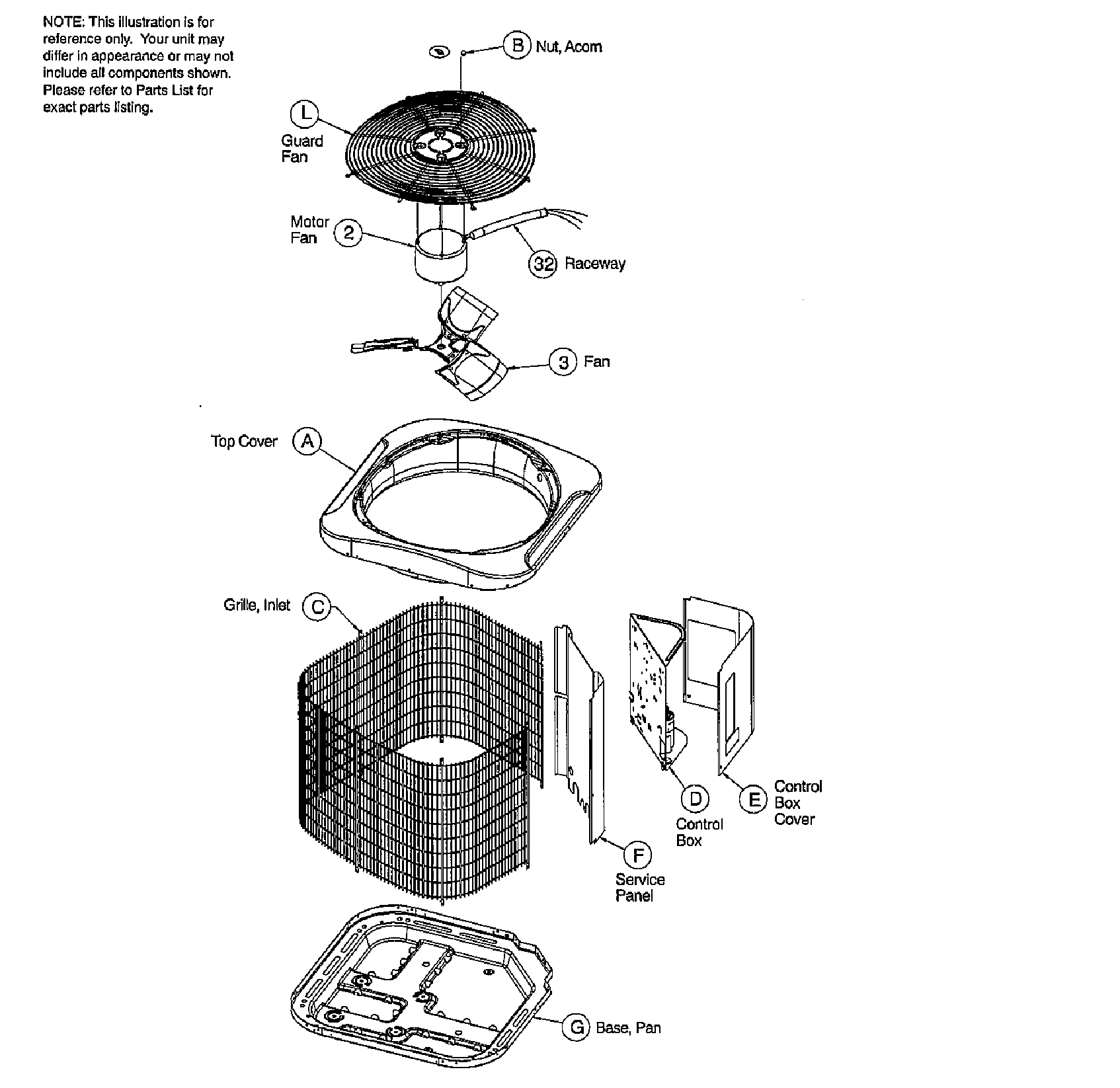

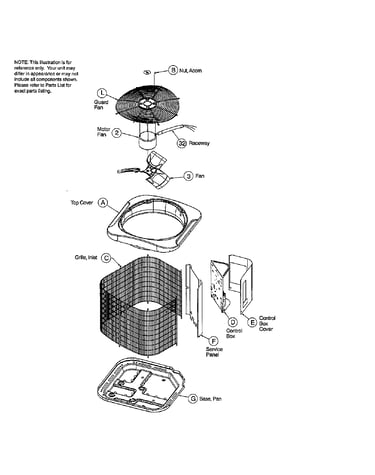

Outer parts diagram

Fan

Part #1173720

In Stock
Heater 1174709
#35

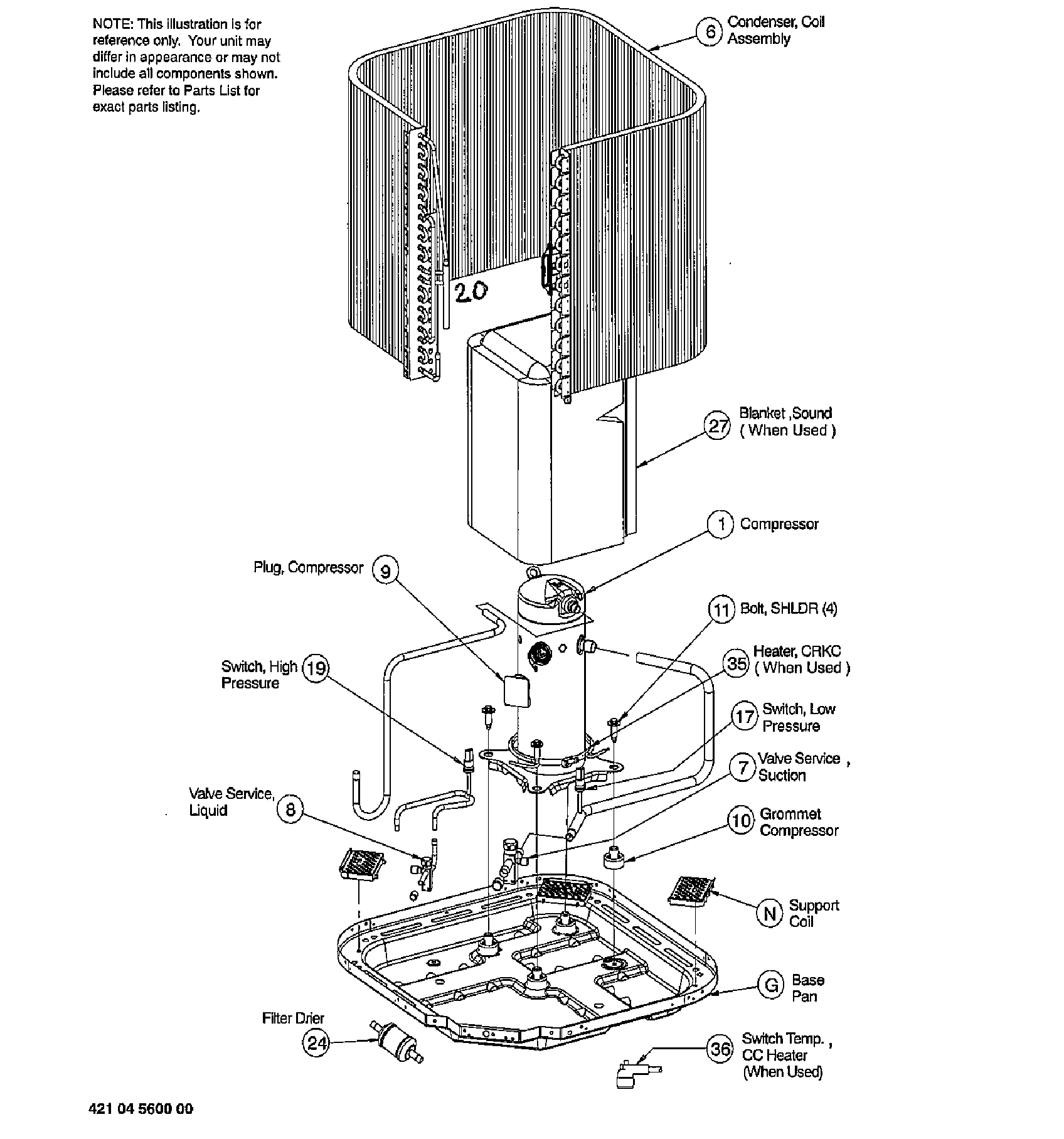

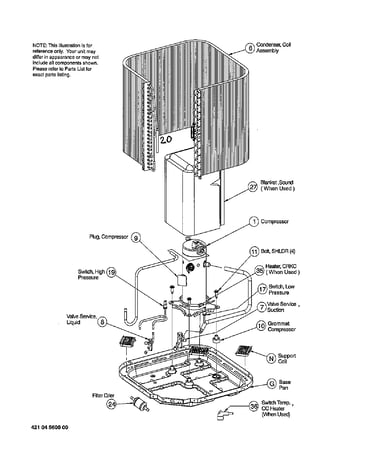

Inner parts diagram

Heater

Part #1174709

In Stock
Switch 1173669
#36

Inner parts diagram

Switch

Part #1173669

In Stock
Central Air Conditioner Condenser Fan Motor 1173717
#2

Outer parts diagram

Central air conditioner condenser fan motor

Part #1173717

$331.64
$10.00 OFF Phone Price : $341.64
In Stock
Cap Nut 1172740
#B

Outer parts diagram

Cap nut

Part #1172740

This item is not returnable
In Stock
Valve 1172726
#7

Inner parts diagram

Valve

Part #1172726

Replaced by #1185862

?
Manufacturer substitution
This part replaces 1172726. Substitute parts can look different from the original.
In Stock
Service Valve 1172792
#8

Inner parts diagram

Service valve

Part #1172792

Replaced by #1185864

?
Manufacturer substitution
This part replaces 1172792. Substitute parts can look different from the original.
In Stock
Central Air Conditioner Dual-motor Run Capacitor (replaces 1172126) 1172124
#5

Control panel diagram

Central air conditioner dual-motor run capacitor (replaces 1172126)

Part #1172124

The manufacturer no longer makes this part, and there's no substitute part

Condenser Coil 1174931
#9

Inner parts diagram

Condenser coil

Part #1174931

The manufacturer no longer makes this part, and there's no substitute part
