Amana GLE120M-R3/P96484-2F gas furnace - gle series Parts
Here are the diagrams and repair parts for Amana GLE120M-R3/P96484-2F gas furnace - gle series, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for GLE120M-R3/P96484-2F Gas Furnace - GLE Series

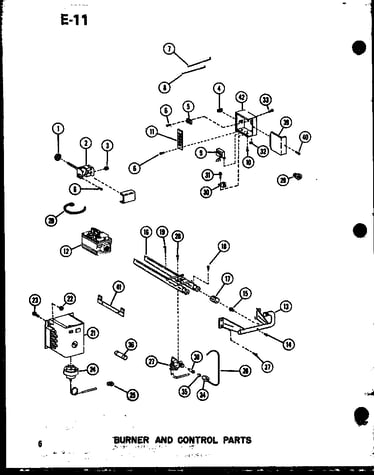

Burner and control parts diagram
11d Bracket
Part #B9277701
The manufacturer no longer makes this part, and there's no substitute part

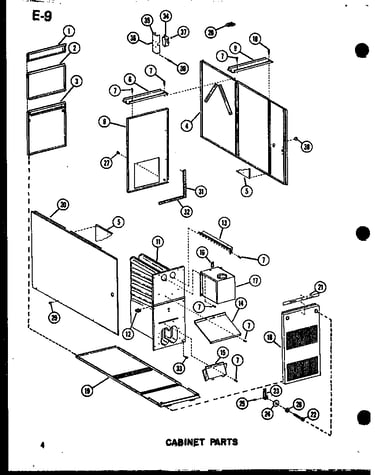

Cabinet parts diagram
Furnace Blower Door
Part #B9256701
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Draft Diverter
Part #C9444310
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Door, Front Access
Part #D9641902
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Felt, Sides
Part #A9003234
The manufacturer no longer makes this part, and there's no substitute part

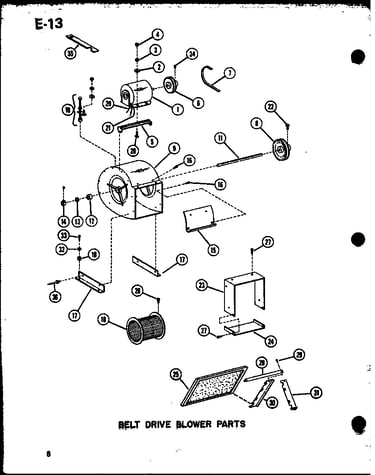

Belt drive blower parts diagram
Belt - 37"
Part #C5252404
The manufacturer no longer makes this part, and there's no substitute part
Belt drive blower parts diagram
Grommet
Part #M0500402
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Felt, Sides
Part #A9003233
The manufacturer no longer makes this part, and there's no substitute part
Burner and control parts diagram
Screw
Part #M1252043
The manufacturer no longer makes this part, and there's no substitute part
Burner and control parts diagram
Wire Assembly
Part #A9026001
The manufacturer no longer makes this part, and there's no substitute part
