Frigidaire
Wall Oven/Microwave Combo

Model # FGMC2766UDC Official Frigidaire electric oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC2766UDC electric oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

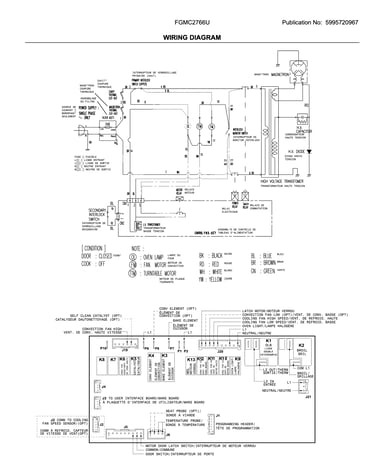

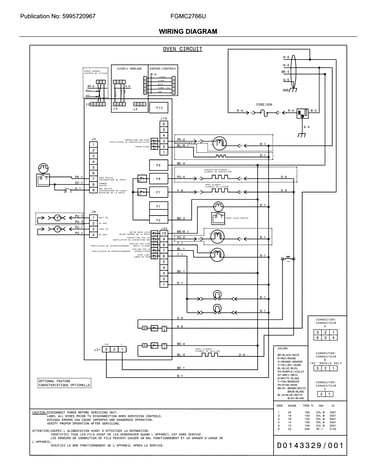

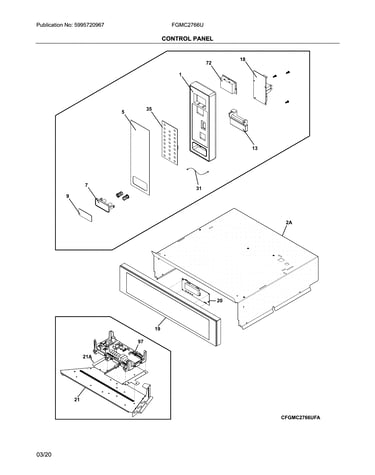

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Microwave Fuse (replaces 5304488359) 5304509451
#34

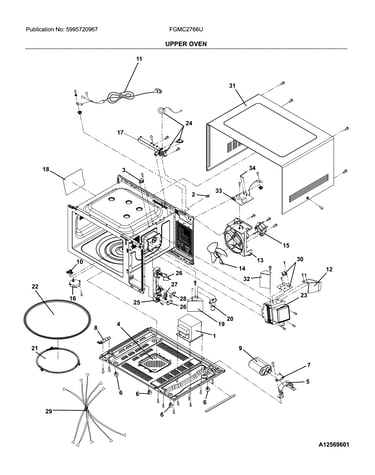

Microwave diagram

Microwave fuse (replaces 5304488359)

Part #5304509451

BEST SELLER
$11.96 |
30% OFF MSRP : $17.00
In Stock
Switch 5304520020
#26

Microwave diagram

Switch

Part #5304520020

Replaced by #5304509460

?
Manufacturer substitution
This part replaces 5304520020. Substitute parts can look different from the original.
BEST SELLER
$34.70 |
17% OFF MSRP : $42.00
In Stock
Microwave Turntable Tray (replaces 5304464116) 5304509621
#22

Microwave diagram

Microwave turntable tray (replaces 5304464116)

Part #5304509621

BEST SELLER
$111.87 |
8% OFF Phone Price : $121.87
In Stock
Microwave Diode (replaces 5304488358) 5304513459
#7

Microwave diagram

Microwave diode (replaces 5304488358)

Part #5304513459

BEST SELLER
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Range Screw, #10-24 X 1.94-in (replaces 316439501, 316513301, 5304502177) 5304507924
#10

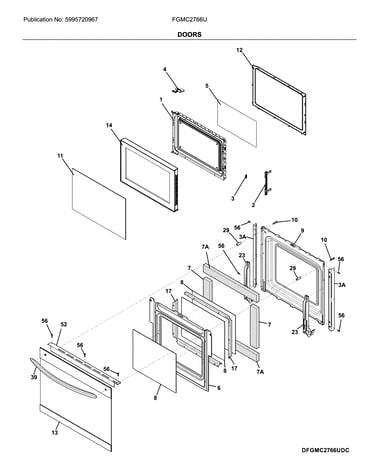

Door diagram

Range screw, #10-24 x 1.94-in (replaces 316439501, 316513301, 5304502177)

Part #5304507924

BEST SELLER
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

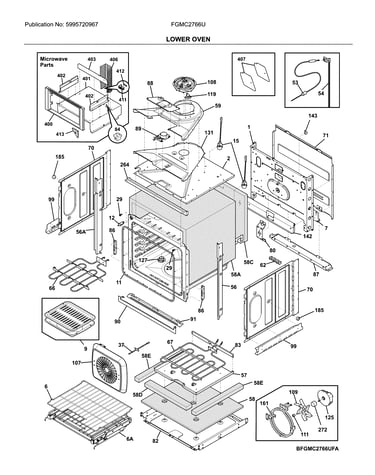

Body diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Microwave Magnetron 5304513456
#23

Microwave diagram

Microwave magnetron

Part #5304513456

BEST SELLER
$149.93 |
6% OFF Phone Price : $159.93
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94 |
6% OFF Phone Price : $177.94
In Stock
Microwave High-voltage Transformer 5304513457
#1

Microwave diagram

Microwave high-voltage transformer

Part #5304513457

$252.79 |
$10.00 OFF Phone Price : $262.79
In Stock
Range Broil Pan And Insert (replaces 316081900, 316082000, 318126200, 318126300) 5304494997
#9

Body diagram

Range broil pan and insert (replaces 316081900, 316082000, 318126200, 318126300)

Part #5304494997

$59.77 |
8% OFF Phone Price : $64.77
In Stock
