Model # 536243820 Official Craftsman snow blade attachment

Here are the diagrams and repair parts for Official Craftsman 536243820 snow blade attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Lock Nut 1502
#39

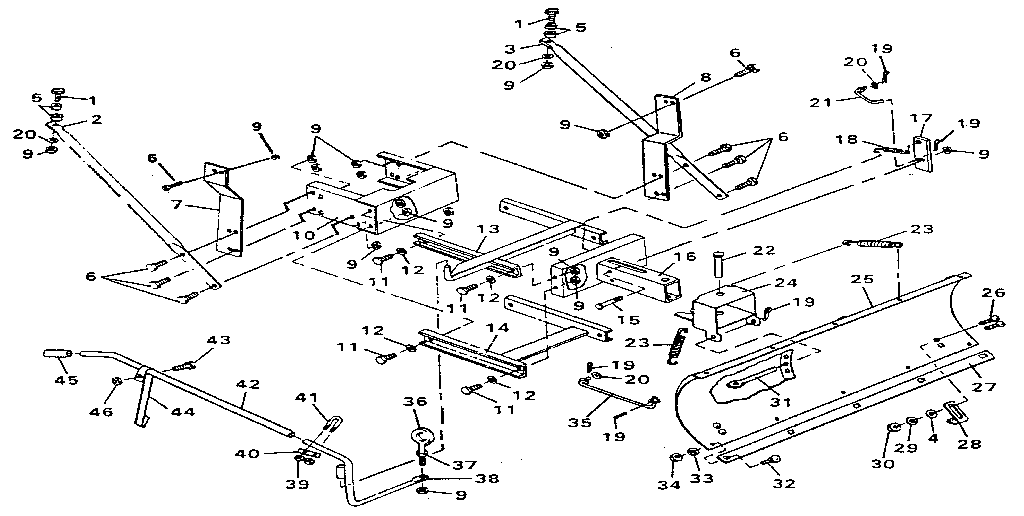

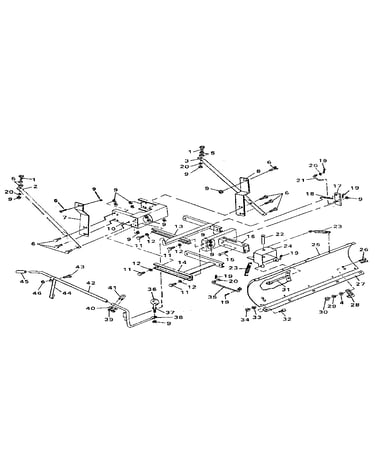

Replacement parts diagram

Lock nut

Part #1502

Replaced by #703251

?
Manufacturer substitution
This part replaces 1502. Substitute parts can look different from the original.
BEST SELLER
$8.07
11% OFF Phone Price : $9.07
In Stock
Screw 122119
#6

Replacement parts diagram

Screw

Part #122119

The manufacturer no longer makes this part, and there's no substitute part

Car Bolt 120518
#32

Replacement parts diagram

Car bolt

Part #120518

Replaced by #703101

?
Manufacturer substitution
This part replaces 120518. Substitute parts can look different from the original.
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Flat Washer 120393
#4

Replacement parts diagram

Flat washer

Part #120393

The manufacturer no longer makes this part, and there's no substitute part

Hex Jam Nut 124829
#37

Replacement parts diagram

Hex jam nut

Part #124829

Replaced by #71045MA

?
Manufacturer substitution
This part replaces 124829. Substitute parts can look different from the original.
In Stock
Split Lockwr 120638
#29

Replacement parts diagram

Split lockwr

Part #120638

The manufacturer no longer makes this part, and there's no substitute part

Bolt 180128
#1

Replacement parts diagram

Bolt

Part #180128

Replaced by #180128MA

?
Manufacturer substitution
This part replaces 180128. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 1499
#9

Replacement parts diagram

Nut

Part #1499

Replaced by #703333

?
Manufacturer substitution
This part replaces 1499. Substitute parts can look different from the original.
This item is not returnable
$8.09
11% OFF Phone Price : $9.09
In Stock
Lock Nut 1498
#46

Replacement parts diagram

Lock nut

Part #1498

The manufacturer no longer makes this part, and there's no substitute part

3/8 Washer 120394
#20

Replacement parts diagram

3/8 washer

Part #120394

The manufacturer no longer makes this part, and there's no substitute part
