Model # 50547891 Official Sears bicycle

Here are the diagrams and repair parts for Official Sears 50547891 bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

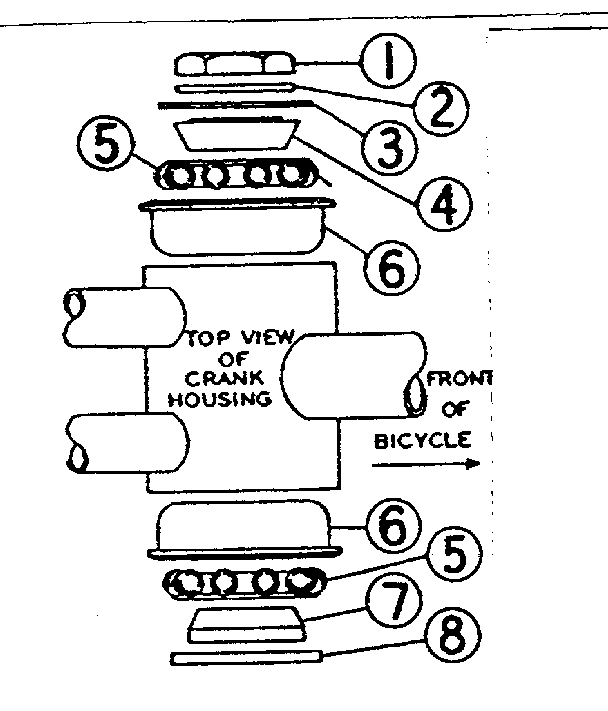

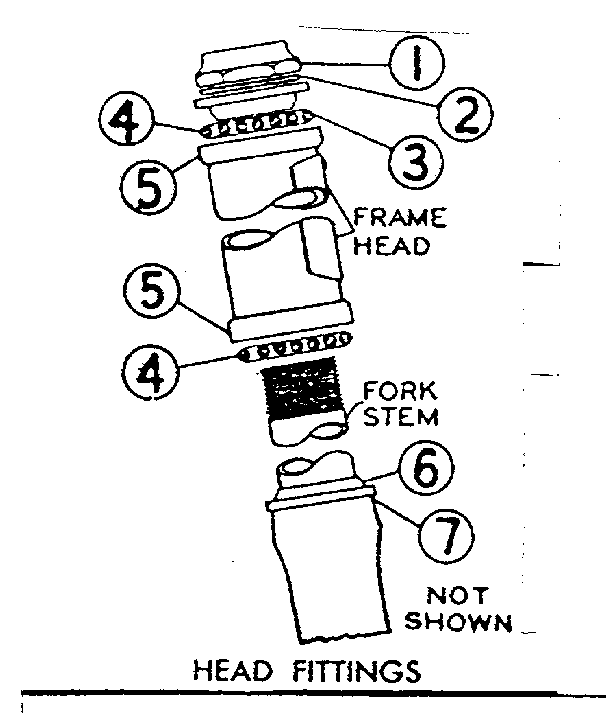

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Axle Set 2496-BG-8
#7

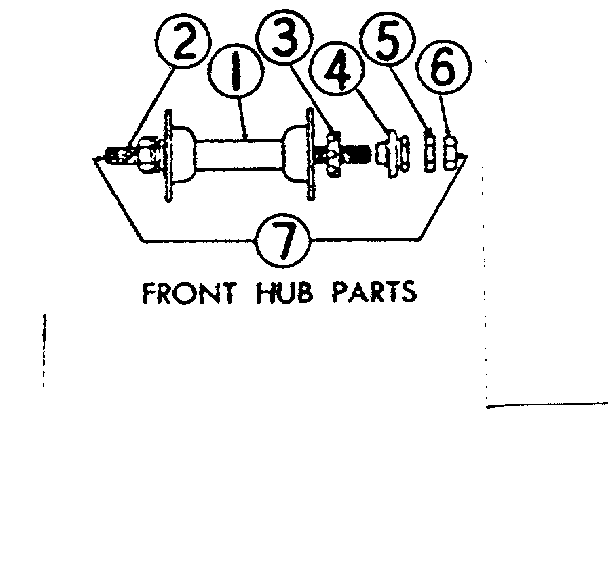

Front hub parts diagram

Axle set

Part #2496-BG-8

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap 2496-BG-5
#4

Front hub parts diagram

Dust cap

Part #2496-BG-5

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 2496-BG-7
#5

Front hub parts diagram

Lock nut

Part #2496-BG-7

The manufacturer no longer makes this part, and there's no substitute part

Axle 2496-BG-1
#2

Front hub parts diagram

Axle

Part #2496-BG-1

The manufacturer no longer makes this part, and there's no substitute part

Retainer 2496-BG-2
#3

Front hub parts diagram

Retainer

Part #2496-BG-2

The manufacturer no longer makes this part, and there's no substitute part

Nut 2496-BG-4
#6

Front hub parts diagram

Nut

Part #2496-BG-4

The manufacturer no longer makes this part, and there's no substitute part

W/tire 26 6-50205

#NI

All parts diagram

W/tire 26

Part #6-50205

The manufacturer no longer makes this part, and there's no substitute part

Rear Fender 5427-BW-3
#4

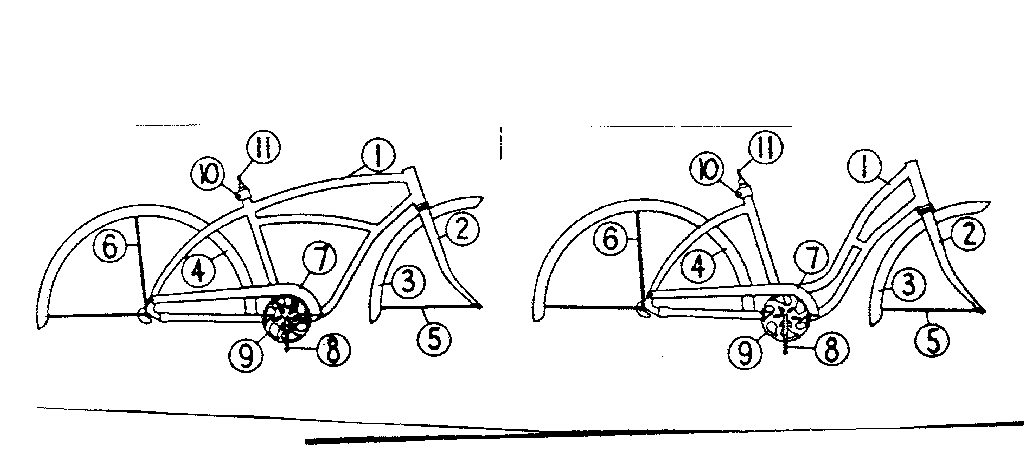

Frame assembly diagram

Rear fender

Part #5427-BW-3

The manufacturer no longer makes this part, and there's no substitute part

Frame 5620-BW
#1A

Frame assembly diagram

Frame

Part #5620-BW

The manufacturer no longer makes this part, and there's no substitute part

Crank 3469-B-3
#8

Frame assembly diagram

Crank

Part #3469-B-3

The manufacturer no longer makes this part, and there's no substitute part
