Amana AC08090A1D-P1225036R room air conditioner Parts
Here are the diagrams and repair parts for Amana AC08090A1D-P1225036R room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for AC08090A1D-P1225036R Room Air Conditioner

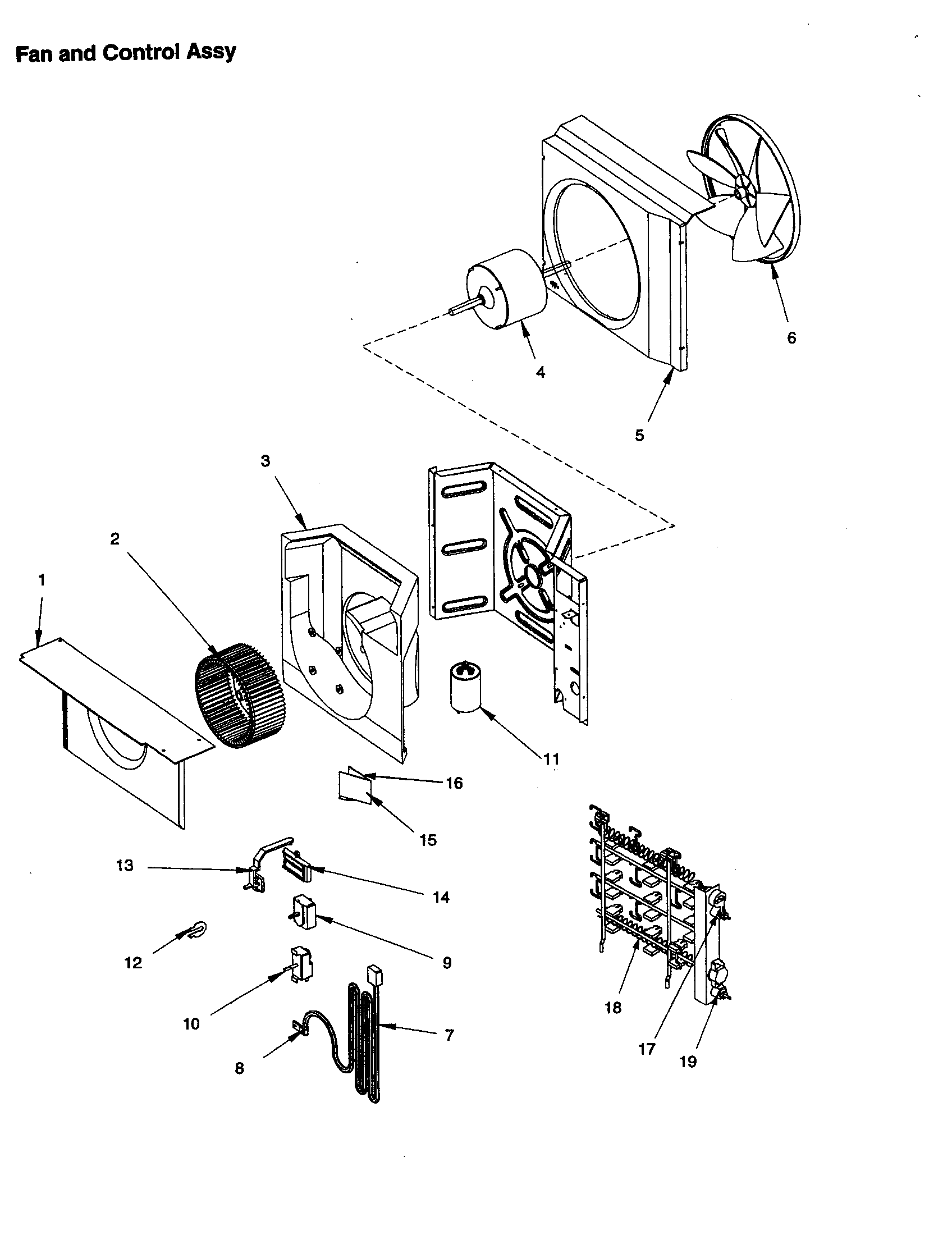

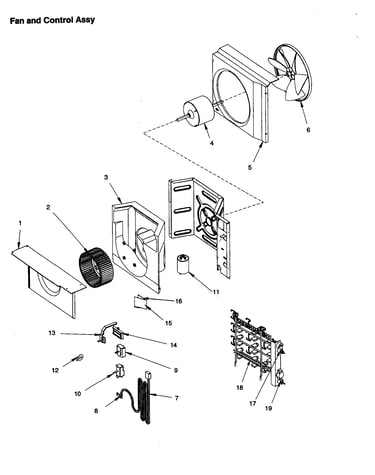

Fan and control assembly diagram
Temperature Control
Part #BT1370801Replaced by #BT1370801
Manufacturer substitutionThis part replaces BT1370801. Substitute parts can look different from the original.In Stock$102.50
Qty

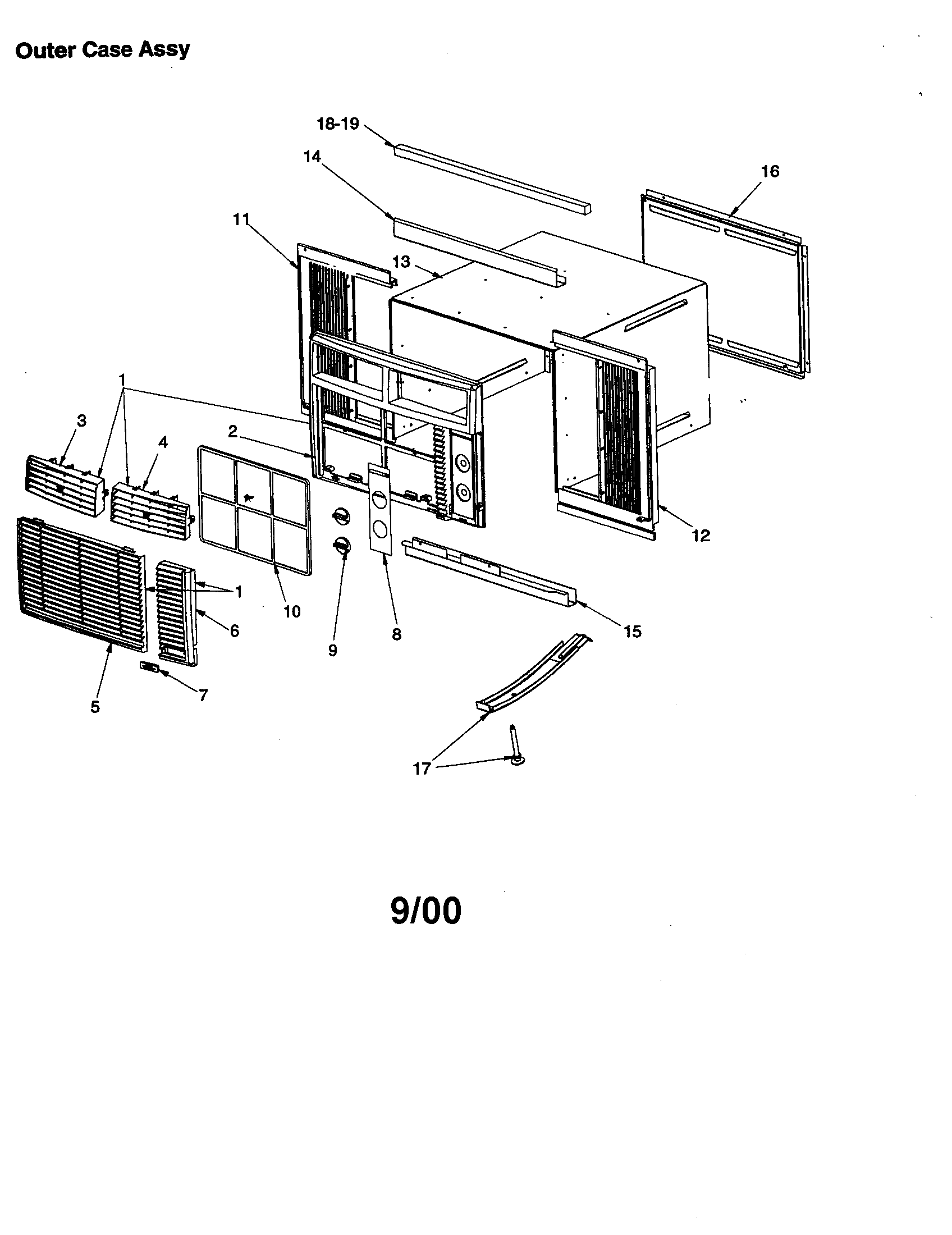

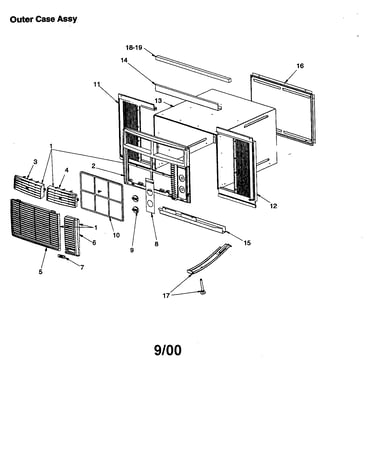

Outer case assembly diagram
Door
Part #BT3075300Replaced by #BT3075000
Manufacturer substitutionThis part replaces BT3075300. Substitute parts can look different from the original.In Stock$36.21QtyCompressor assembly diagram
Compressor
Part #BT9266112
The manufacturer no longer makes this part, and there's no substitute part

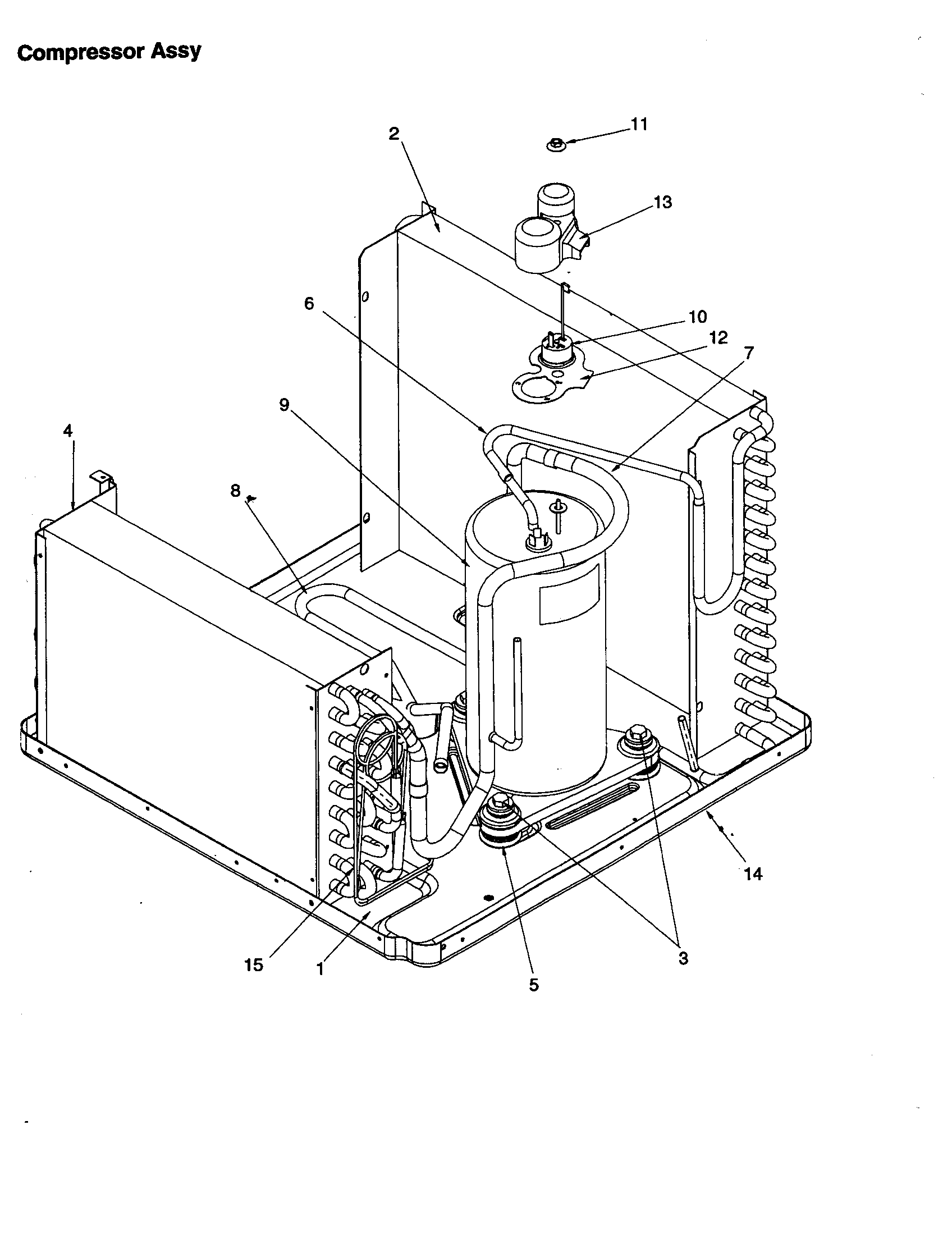

Compressor assembly diagram
Cap Tube Assembly
Part #3093852
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Foam ,75 X 1.50 (3.5 Ft)
Part #BT1392600
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Air Filter
Part #BT1419202
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Rear Louver
Part #3002200P
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Gasket Fresh Air Door
Part #BT1392611
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Vent
Part #BT3075412
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Air Conditioner Blower Partition
Part #BT3010000
The manufacturer no longer makes this part, and there's no substitute part
