Model # 143576192 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143576192 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |

O-ring 631028
#25

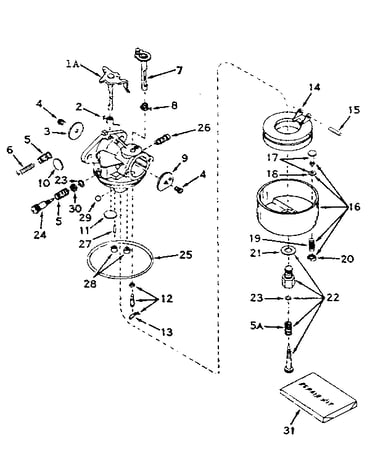

Carburetor diagram

O-ring

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Needl/seat 631021
#12

Carburetor diagram

Needl/seat

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27110
#21

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#88

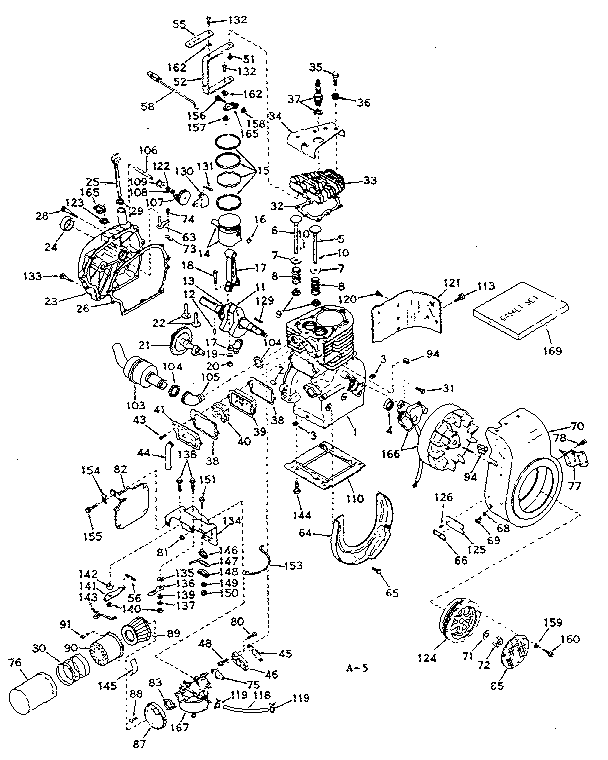

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Coil/wire 30560
#13

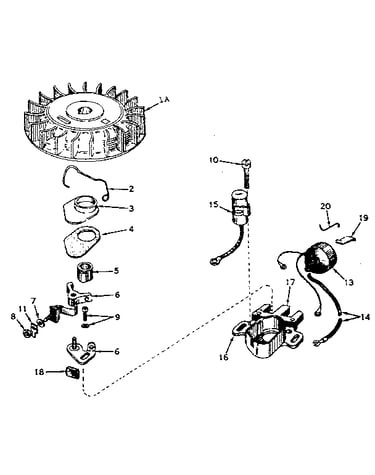

Magneto diagram

Coil/wire

Part #30560

The manufacturer no longer makes this part, and there's no substitute part

Plug 631027
#11

Carburetor diagram

Plug

Part #631027

The manufacturer no longer makes this part, and there's no substitute part

Spring 630738
#5A

Carburetor diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part
