KitchenAid 5KWB110EOB0 waffle maker Parts
Here are the diagrams and repair parts for KitchenAid 5KWB110EOB0 waffle maker, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for 5KWB110EOB0 Waffle Maker

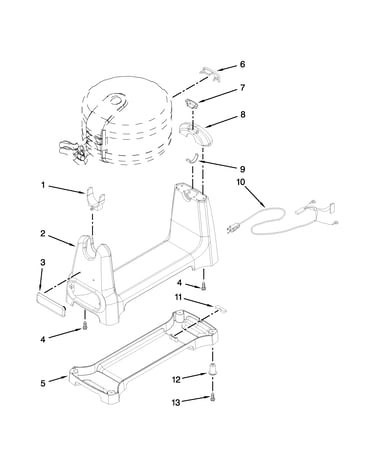

Cradle parts diagram
Foot
In Stock$25.20
Qty
Control parts diagram
Button
In Stock$34.02QtyCradle parts diagram
Bracket
In Stock$55.14QtyControl parts diagram
Cover
In Stock$53.99QtyCradle parts diagram
Clamp
In Stock$25.53QtyCradle parts diagram
Base
In Stock$135.52QtyCradle parts diagram
Cover
Part #8211505Replaced by #W10240856
Manufacturer substitutionThis part replaces 8211505. Substitute parts can look different from the original.In Stock$40.24QtyCradle parts diagram
Base (medallion Silver)
Part #W10768181
The manufacturer no longer makes this part, and there's no substitute part
Control parts diagram
Bezel
Part #8211488
The manufacturer no longer makes this part, and there's no substitute part
Control parts diagram
Pcb
Part #8211491
The manufacturer no longer makes this part, and there's no substitute part
