Whirlpool
Central Air Conditioner

Model # CA25WC01 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool CA25WC01 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

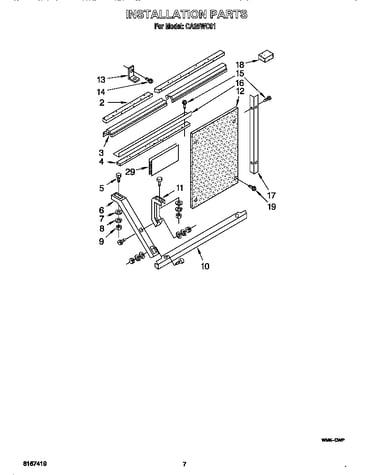

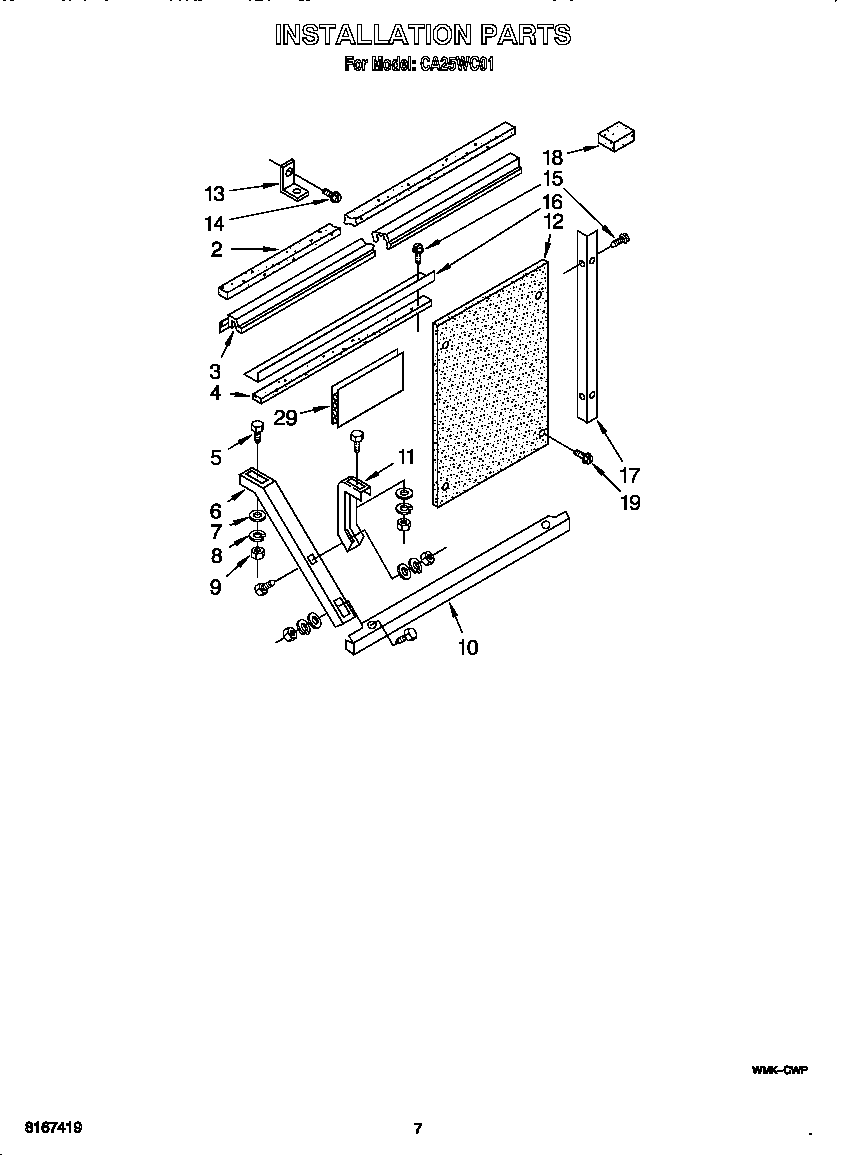

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Valve Kit 978030
#6G

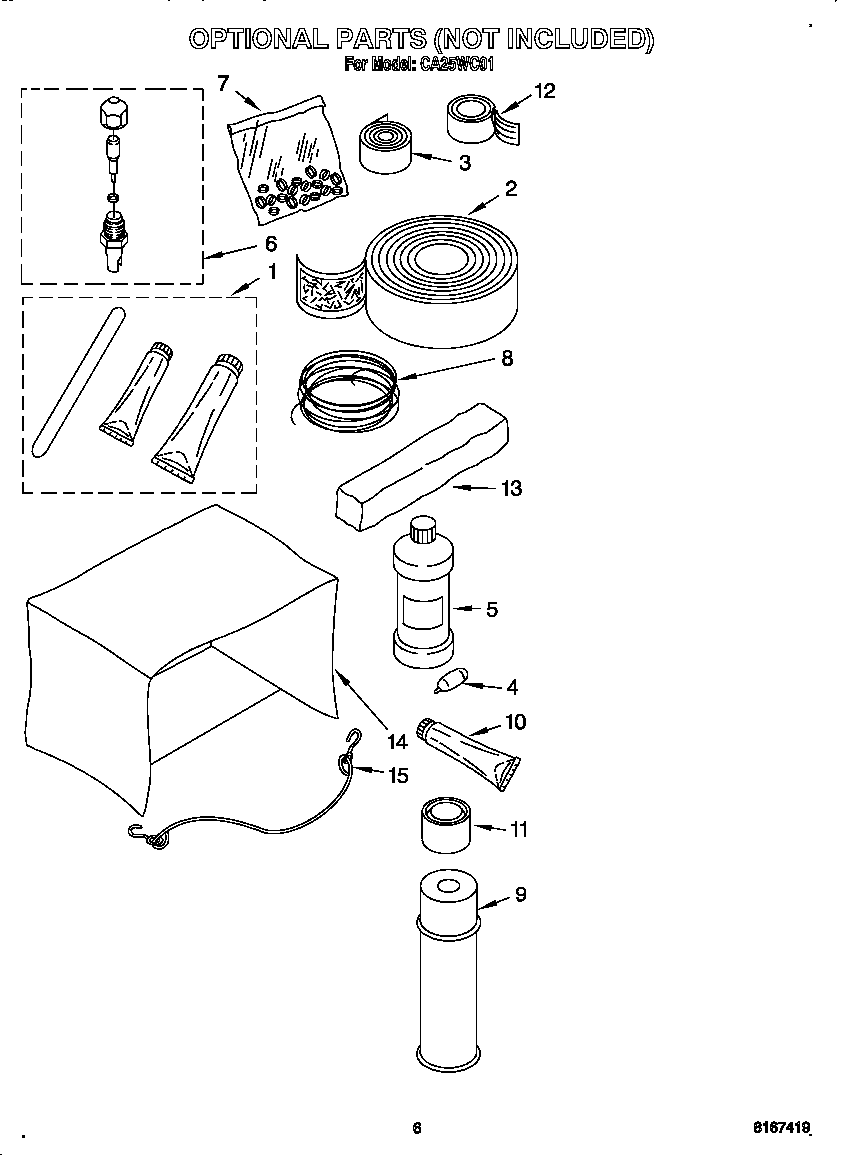

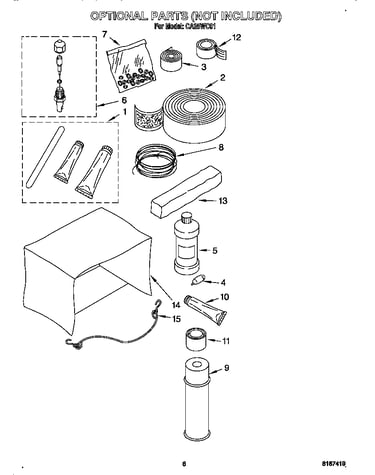

Optional diagram

Valve kit

Part #978030

Replaced by #978030

?
Manufacturer substitution
This part replaces 978030. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
33% OFF MSRP : $60.00
In Stock
Cement 279368
#10

Optional diagram

Cement

Part #279368

Replaced by #WP279368

?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
36% OFF MSRP : $67.00
In Stock
Valve Kit 978025
#6B

Optional diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$18.97 |
64% OFF MSRP : $53.00
In Stock
Washer 1160880
#43

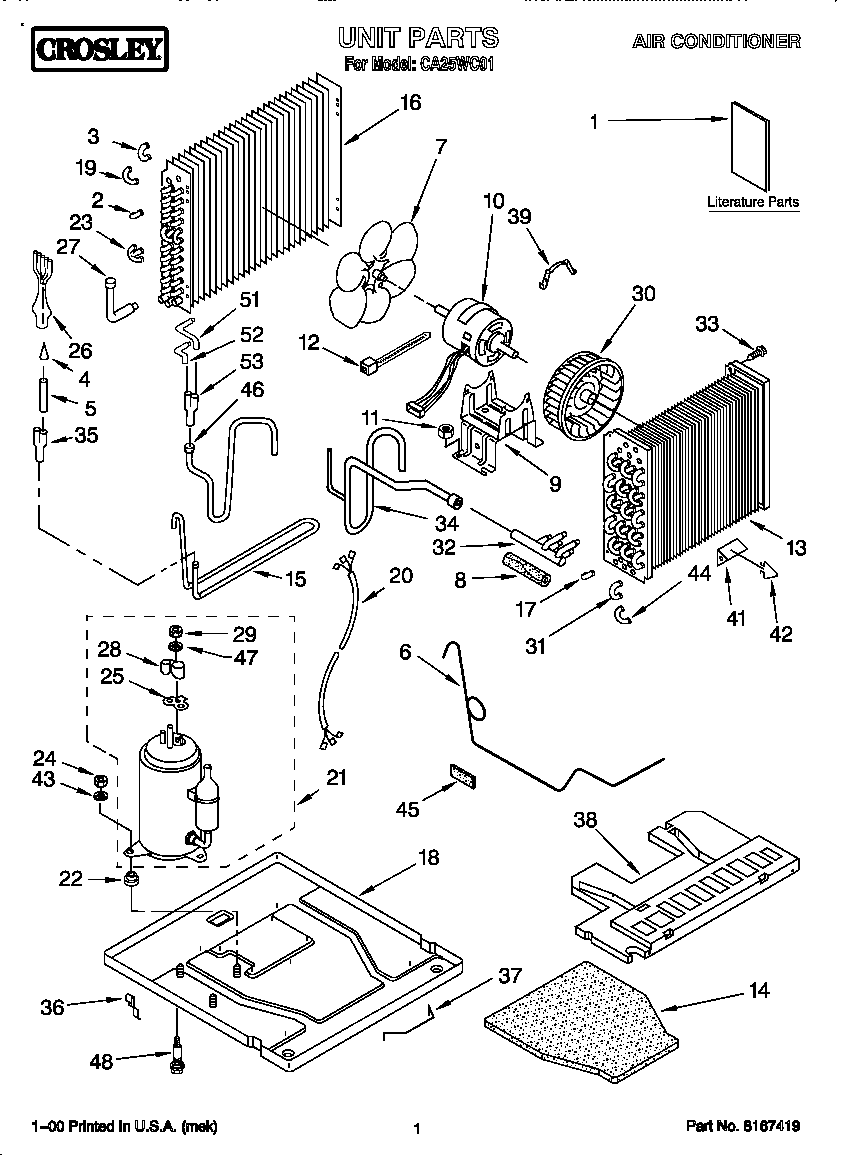

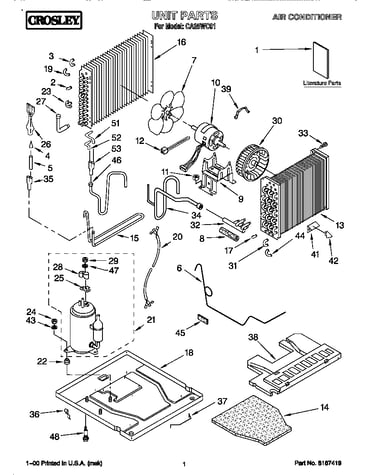

Unit diagram

Washer

Part #1160880

Replaced by #W11236646

?
Manufacturer substitution
This part replaces 1160880. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Valve Kit 978026
#6C

Optional diagram

Valve kit

Part #978026

Replaced by #978026

?
Manufacturer substitution
This part replaces 978026. Substitute parts can look different from the original.
$34.19 |
13% OFF Phone Price : $39.19
In Stock
Refrigerator Screw 1157158
Refrigerator screw

Part #1157158

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Room Air Conditioner Rotary Switch Knob 8031121
#38

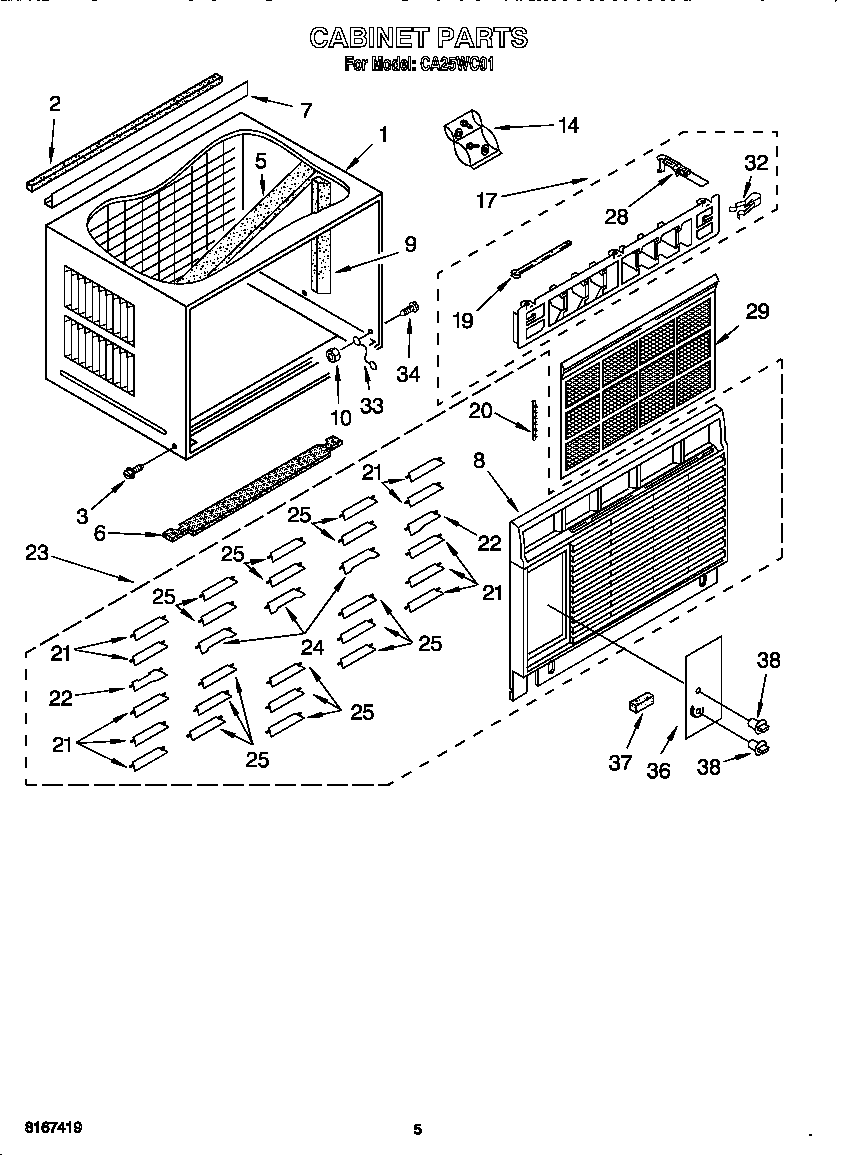

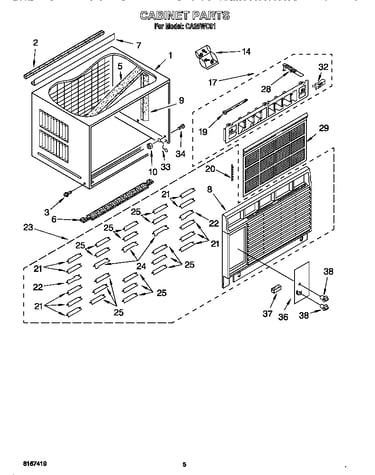

Cabinet diagram

Room air conditioner rotary switch knob

Part #8031121

Replaced by #WP8031121

?
Manufacturer substitution
This part replaces 8031121. Substitute parts can look different from the original.
$35.94 |
12% OFF Phone Price : $40.94
In Stock
Wire Tie 602851
#12

Unit diagram

Wire tie

Part #602851

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 602851. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Wire Tie 1159130
#18

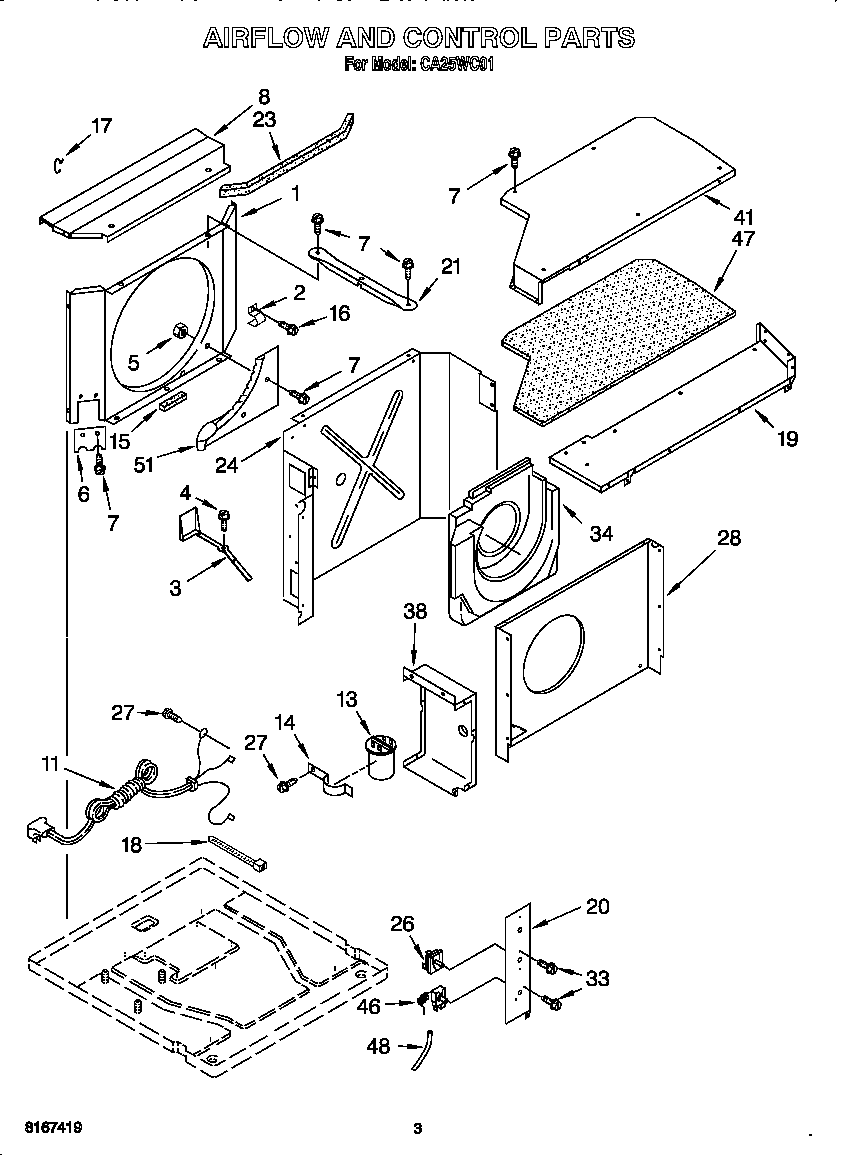

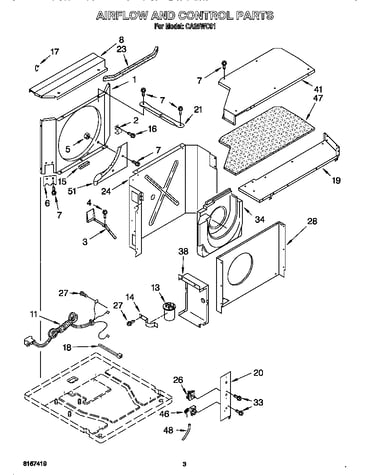

Airflow and control diagram

Wire tie

Part #1159130

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 1159130. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerant Access Valve, 5/8-in 978029
#6F

Optional diagram

Refrigerant access valve, 5/8-in

Part #978029

Replaced by #978029

?
Manufacturer substitution
This part replaces 978029. Substitute parts can look different from the original.
$41.18
In Stock
