Model # 11312630 Official Craftsman 3/4-hp ac motor

Here are the diagrams and repair parts for Official Craftsman 11312630 3/4-hp ac motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Screw 64372
#11

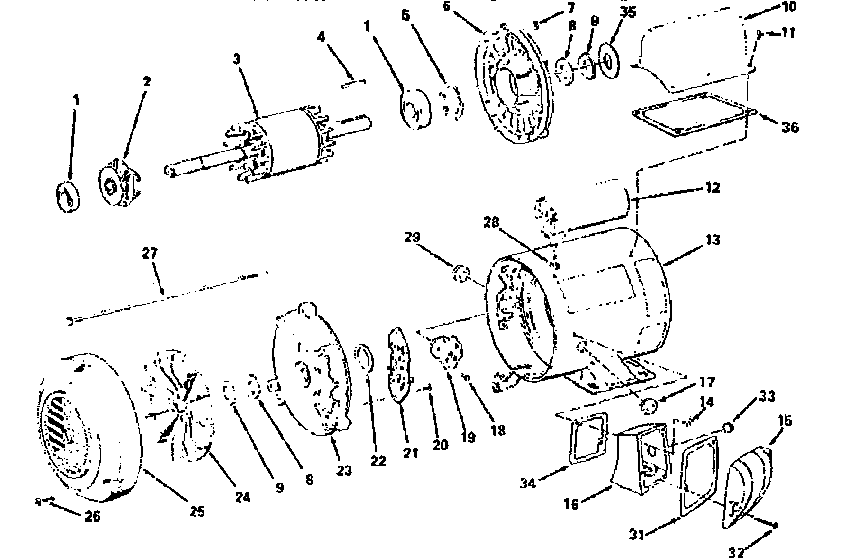

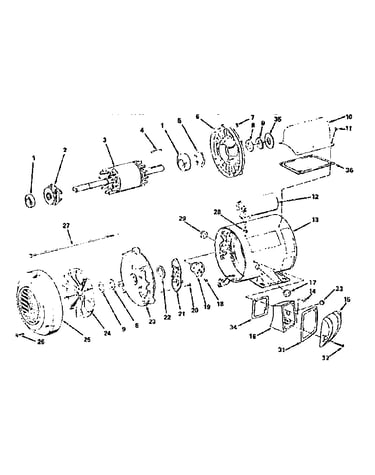

Unit diagram

Screw

Part #64372

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Washer 63465
#5

Unit diagram

Table saw washer

Part #63465

The manufacturer no longer makes this part, and there's no substitute part

Cap Cover 37619
#10

Unit diagram

Cap cover

Part #37619

The manufacturer no longer makes this part, and there's no substitute part

Washer 64422
#35

Unit diagram

Washer

Part #64422

The manufacturer no longer makes this part, and there's no substitute part

Screw 64528
#32

Unit diagram

Screw

Part #64528

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 64358
#12

Unit diagram

Capacitor

Part #64358

The manufacturer no longer makes this part, and there's no substitute part

Screw 448011
#20

Unit diagram

Screw

Part #448011

The manufacturer no longer makes this part, and there's no substitute part

Rotor Asm. 64534
#3

Unit diagram

Rotor asm.

Part #64534

The manufacturer no longer makes this part, and there's no substitute part

Protector 64529
#19

Unit diagram

Protector

Part #64529

The manufacturer no longer makes this part, and there's no substitute part

Gasket 64420
#31

Unit diagram

Gasket

Part #64420

The manufacturer no longer makes this part, and there's no substitute part
