Gibson
Room Air Conditioner

Model # AK18E7RYA Official Gibson room air conditioner - lg34090140

Here are the diagrams and repair parts for Official Gibson AK18E7RYA room air conditioner - lg34090140, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Spacer 5303211009
#8

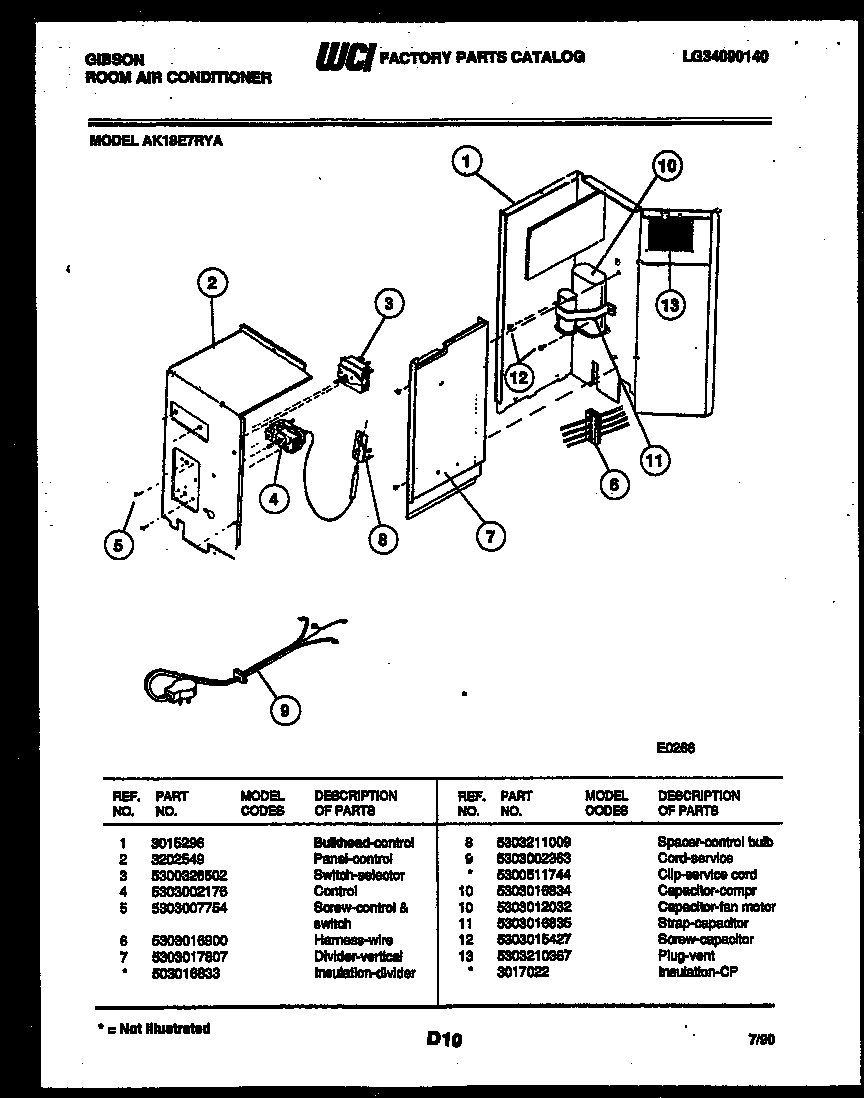

Electrical parts diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Room Air Conditioner Filter Dryer 5300265301

#NI

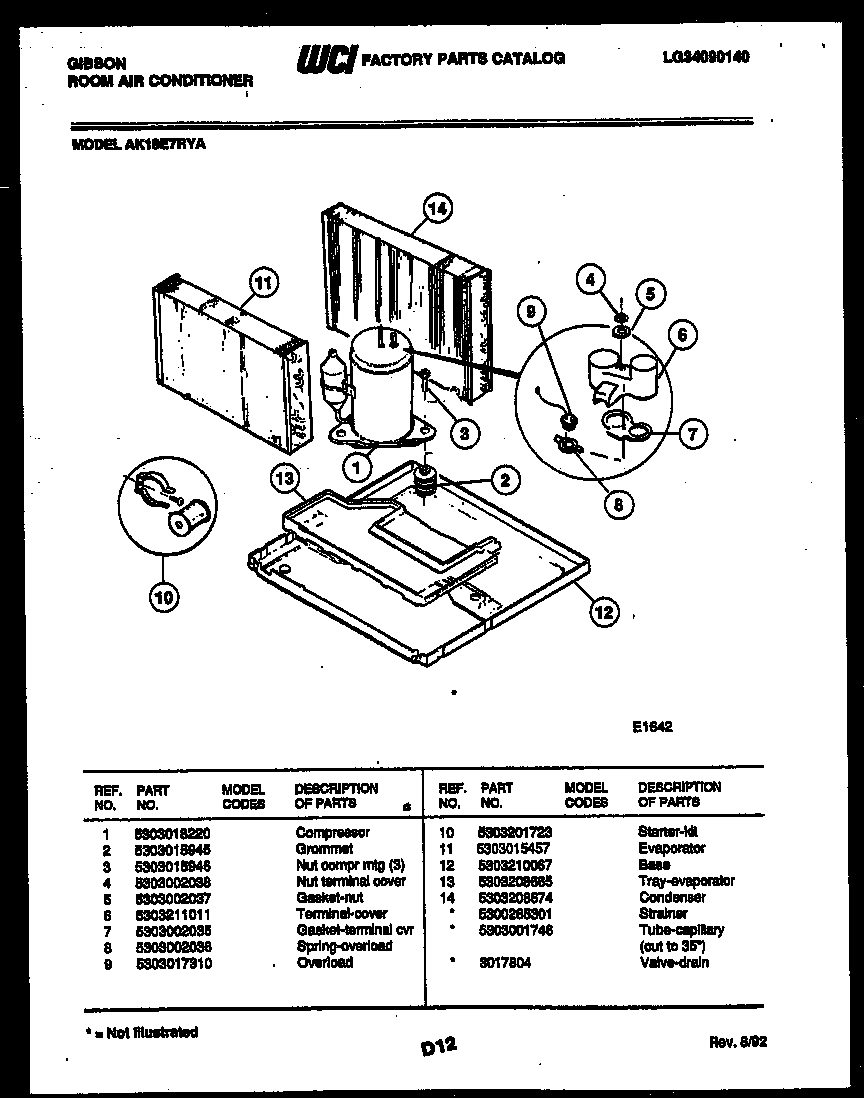

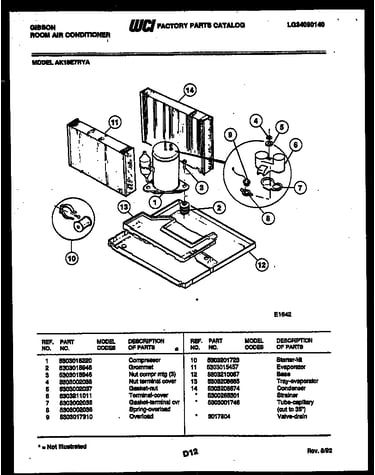

All parts diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Gasket 5303001820
#4

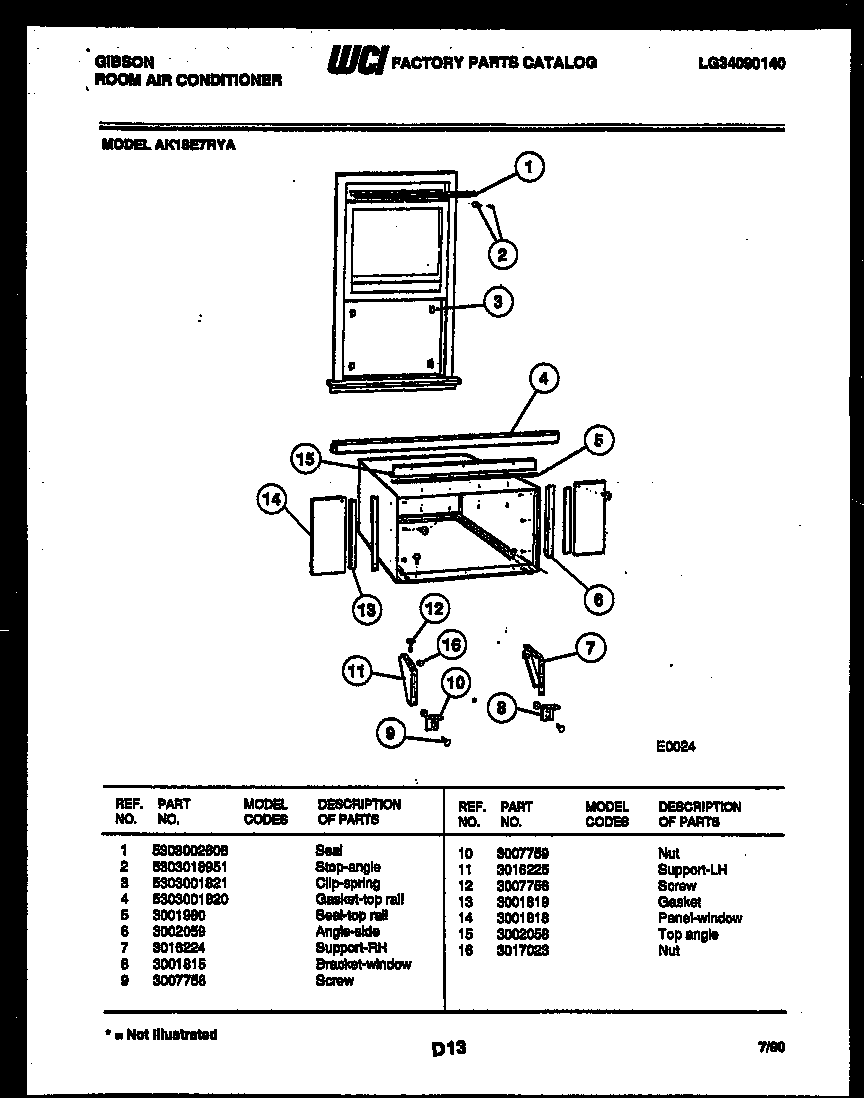

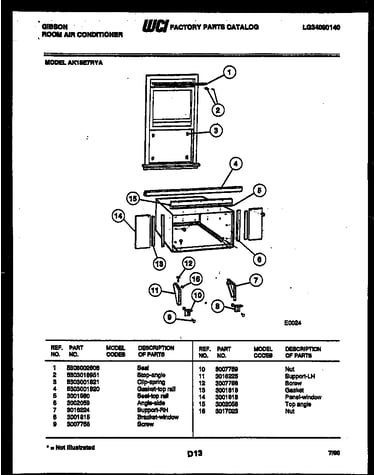

Cabinet and installation parts diagram

Gasket

Part #5303001820

Replaced by #5303302764

?
Manufacturer substitution
This part replaces 5303001820. Substitute parts can look different from the original.
$9.99
In Stock
Screw 3202975
#2

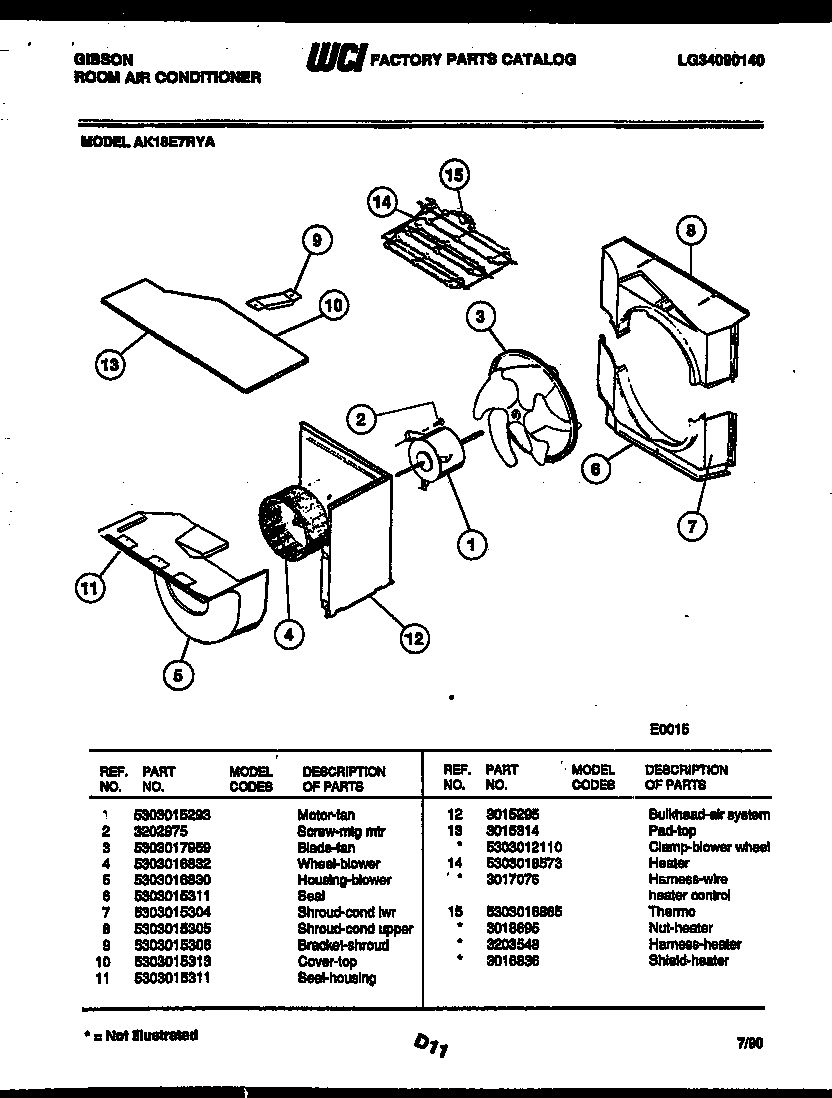

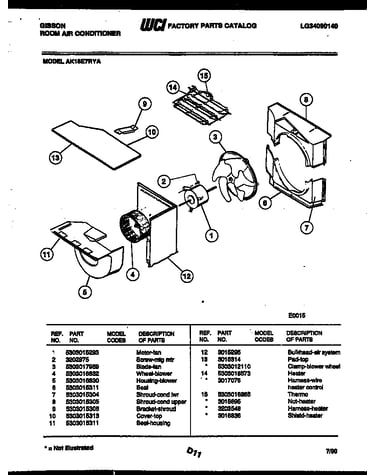

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Nut-hex 3017023
#16

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Gasket 3001819
#13

Cabinet and installation parts diagram

Gasket

Part #3001819

Replaced by #5303302765

?
Manufacturer substitution
This part replaces 3001819. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Angle 3002059
#6

Cabinet and installation parts diagram

Angle

Part #3002059

The manufacturer no longer makes this part, and there's no substitute part

Louver 3017302
#3

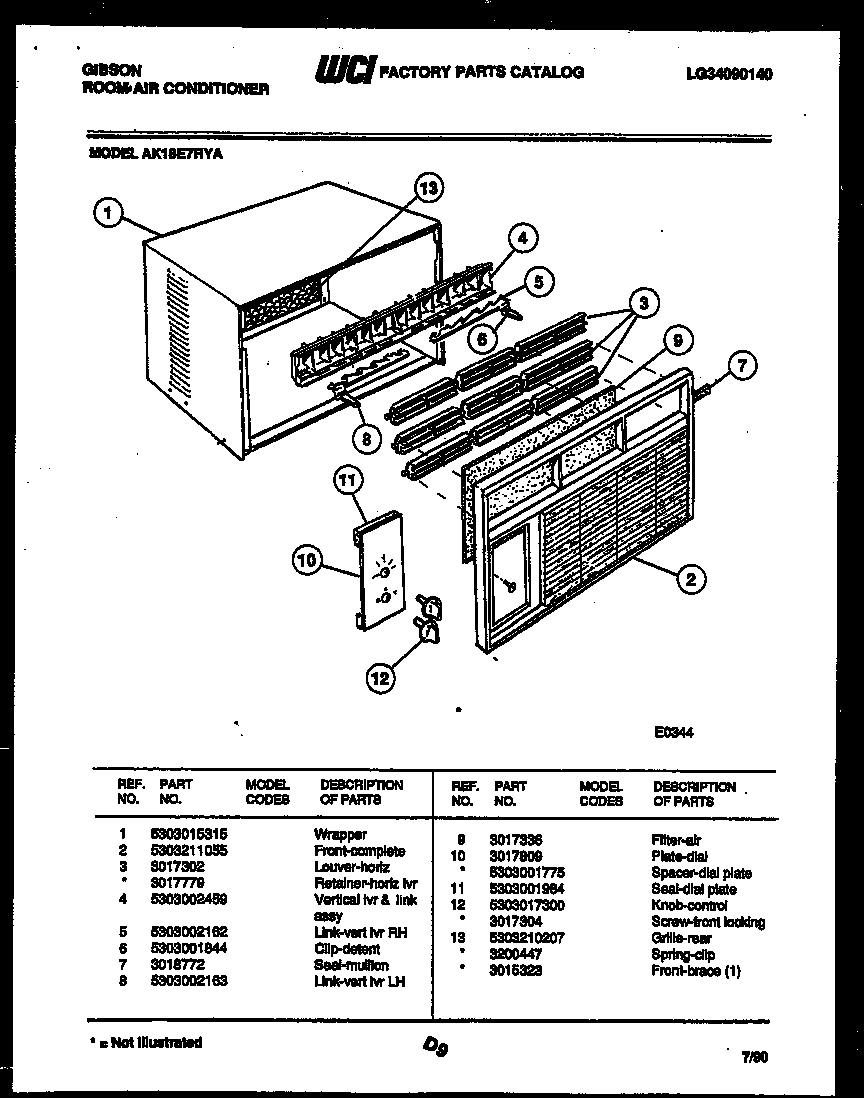

Cabinet parts diagram

Louver

Part #3017302

The manufacturer no longer makes this part, and there's no substitute part

Switch 5300326502
#3

Electrical parts diagram

Switch

Part #5300326502

The manufacturer no longer makes this part, and there's no substitute part
