Model # 6461099 Official Craftsman floor polisher

Here are the diagrams and repair parts for Official Craftsman 6461099 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Bearing BRG002
#13

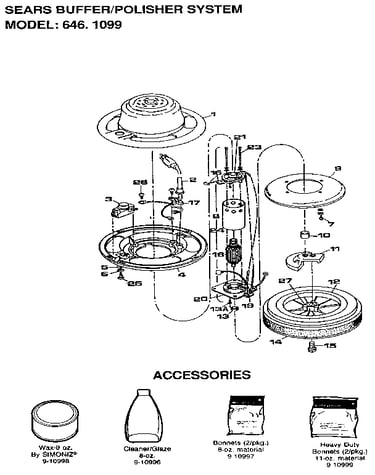

Buffer/polisher system diagram

Bearing

Part #BRG002

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly CSA115
#2

Buffer/polisher system diagram

Cord assembly

Part #CSA115

The manufacturer no longer makes this part, and there's no substitute part

Armature WMA001
#18

Buffer/polisher system diagram

Armature

Part #WMA001

The manufacturer no longer makes this part, and there's no substitute part

Brush Set BRU001
#16

Buffer/polisher system diagram

Brush set

Part #BRU001

The manufacturer no longer makes this part, and there's no substitute part

Guard PHG005
#9

Buffer/polisher system diagram

Guard

Part #PHG005

The manufacturer no longer makes this part, and there's no substitute part

Bottom PBH005
#4

Buffer/polisher system diagram

Bottom

Part #PBH005

The manufacturer no longer makes this part, and there's no substitute part

Switch SWH001
#3

Buffer/polisher system diagram

Switch

Part #SWH001

The manufacturer no longer makes this part, and there's no substitute part

Holder Assembly PHA001
#12

Buffer/polisher system diagram

Holder assembly

Part #PHA001

The manufacturer no longer makes this part, and there's no substitute part

Yoke Assembly MYA001
#24

Buffer/polisher system diagram

Yoke assembly

Part #MYA001

The manufacturer no longer makes this part, and there's no substitute part

Counterweight CWT001
#11

Buffer/polisher system diagram

Counterweight

Part #CWT001

The manufacturer no longer makes this part, and there's no substitute part
