Maytag MMW5530DAB20 30" built-in microwave combo Parts

Here are the diagrams and repair parts for Maytag MMW5530DAB20 30" built-in microwave combo, as well as links to manuals and error code tables, if available.

Maytag MMW5530DAB20 30" built-in microwave combo
By Schematic
By Part

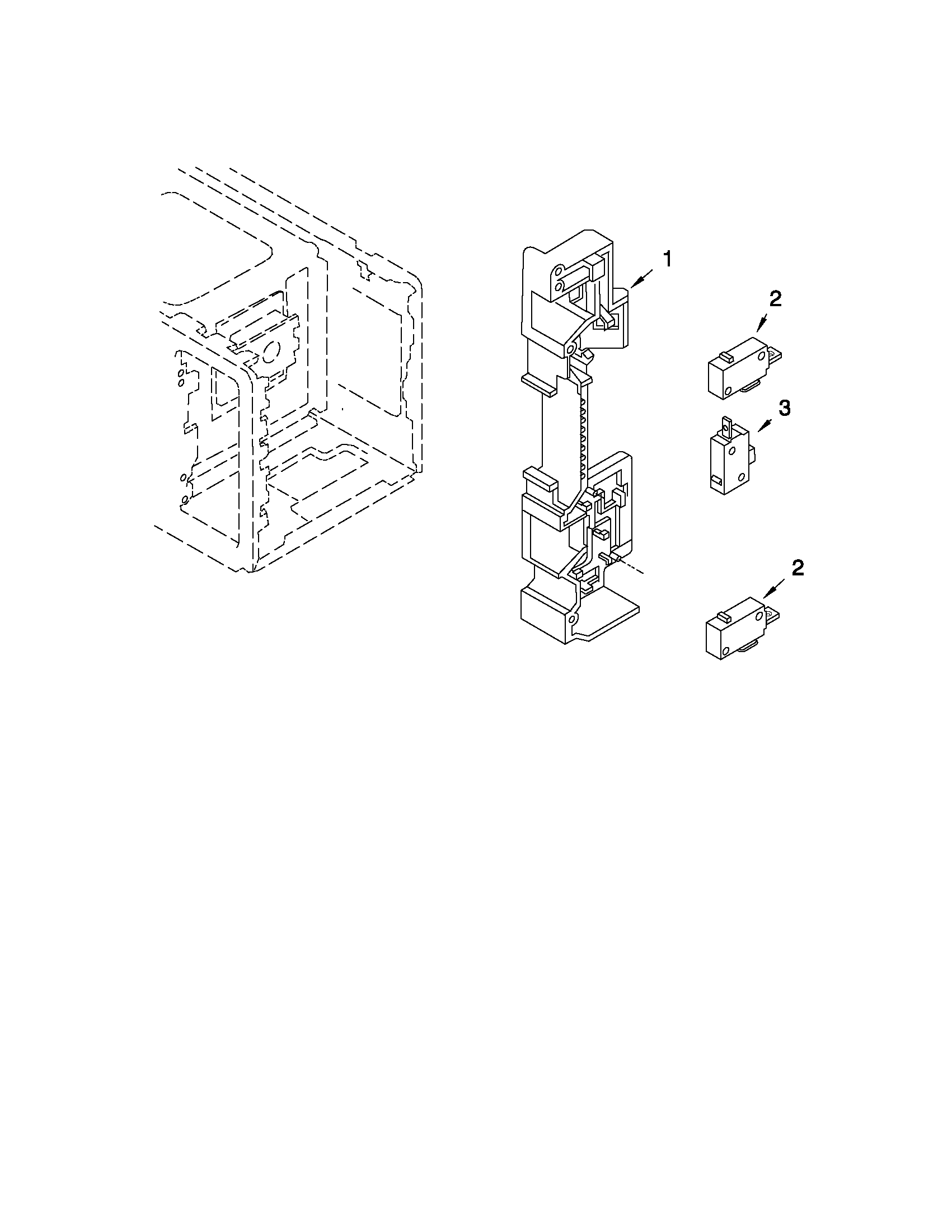

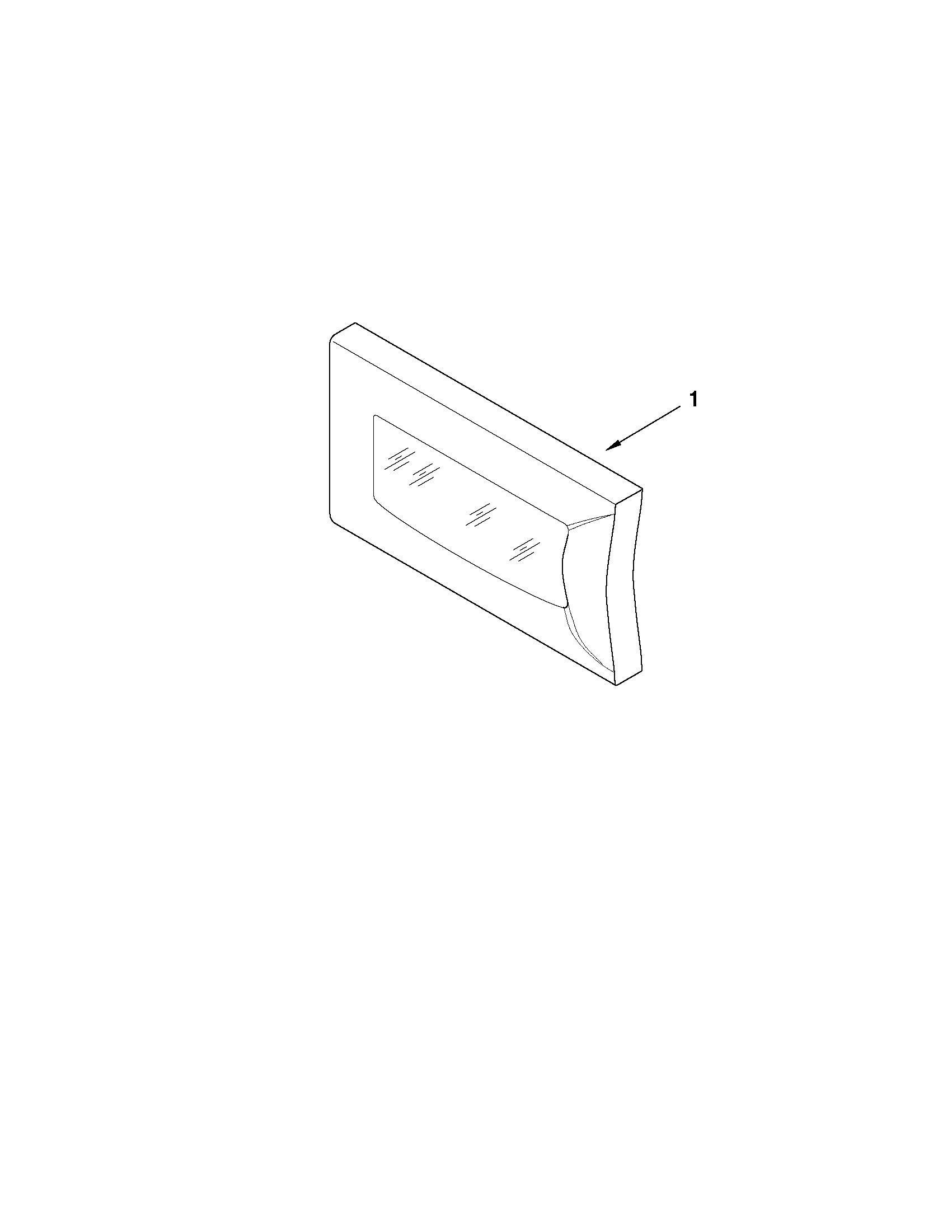

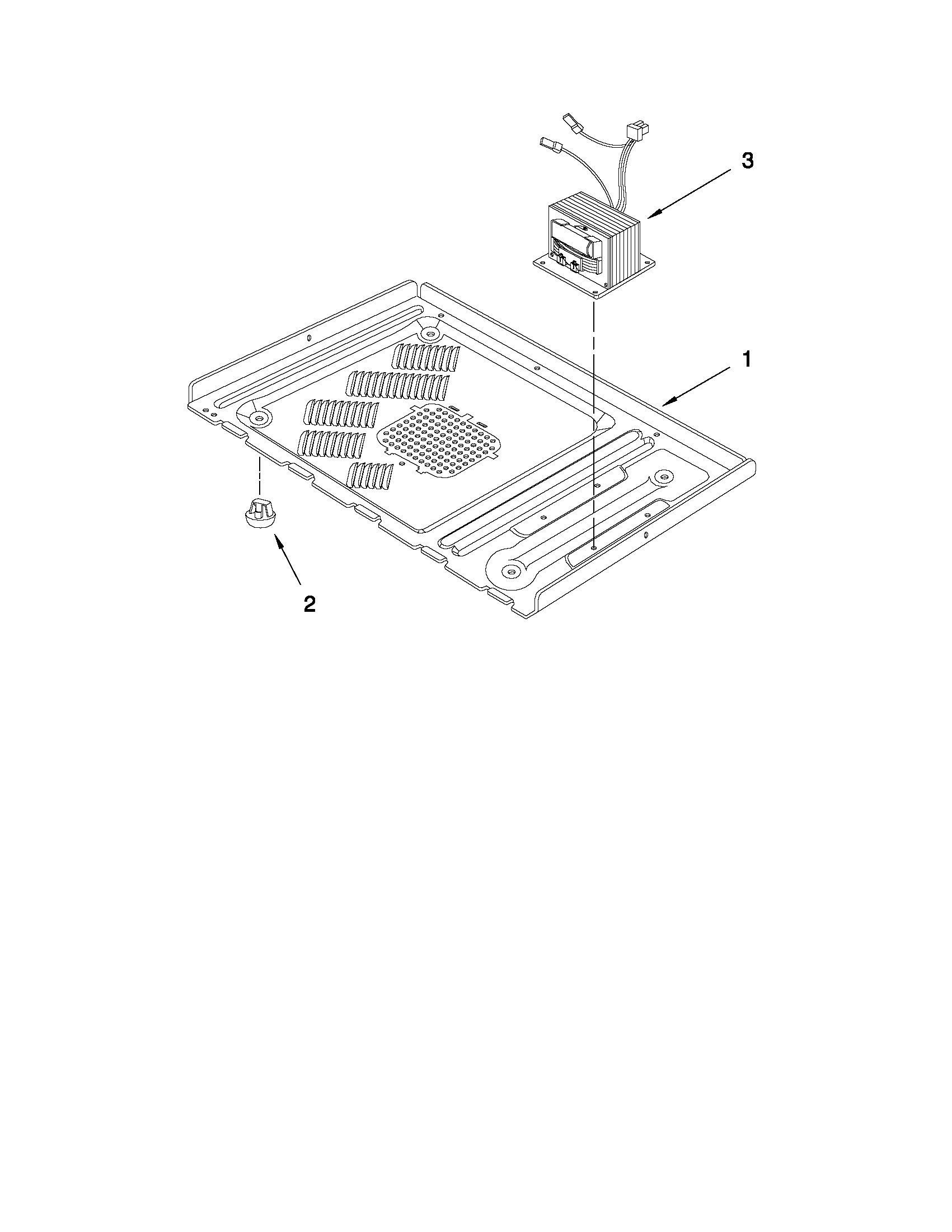

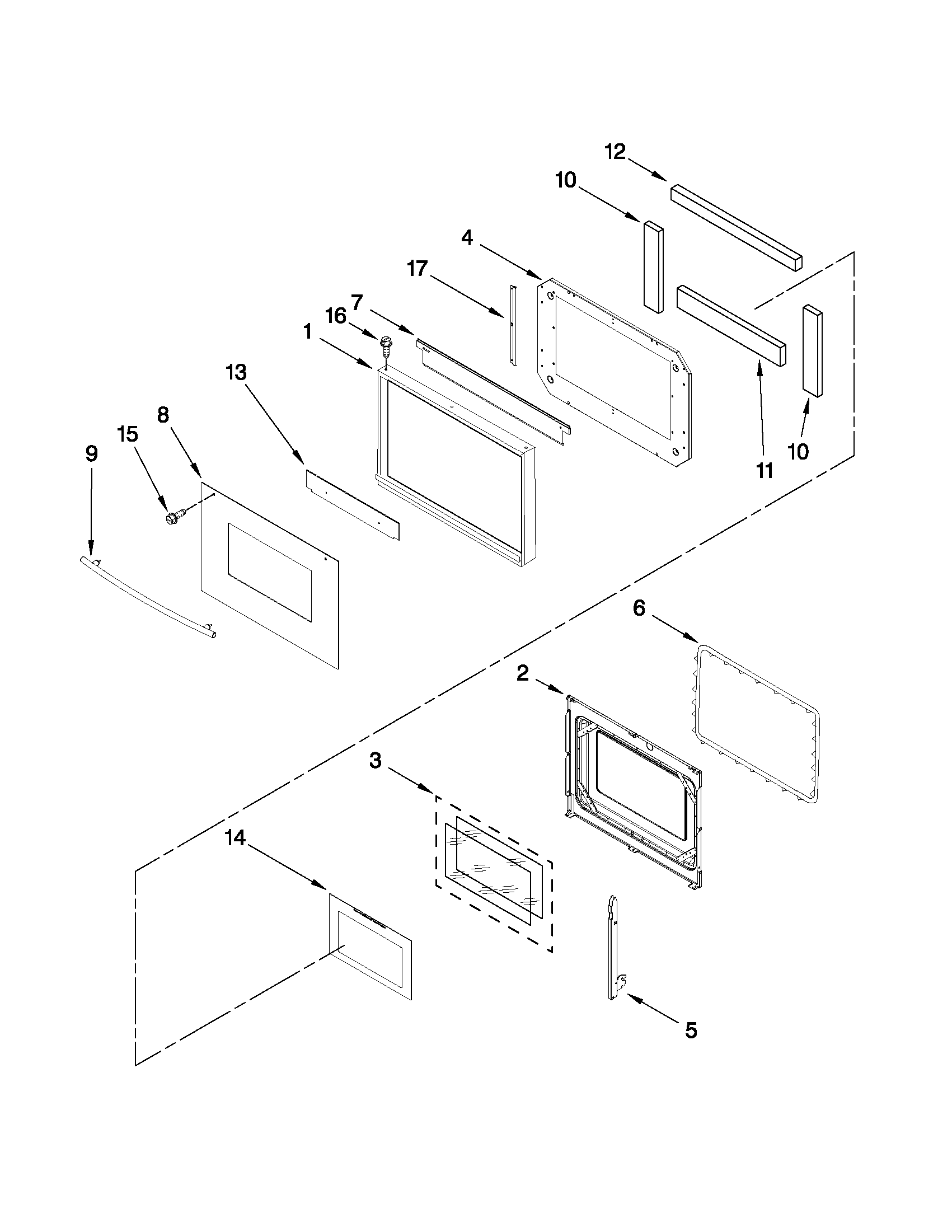

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MMW5530DAB20 30" Built-In Microwave Combo

  • Appliance Silicone Sealant for Maytag MMW5530DAB20 - Part WP482338

    Optional parts diagram

    Adhesive

    Part #482338

    Replaced by #WP482338

    Info Icon
    Manufacturer substitution
    This part replaces 482338. Substitute parts can look different from the original.
    In Stock
    $24.46
    27% OFF Was : $33.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for Maytag MMW5530DAB20 - Part WPW10126794

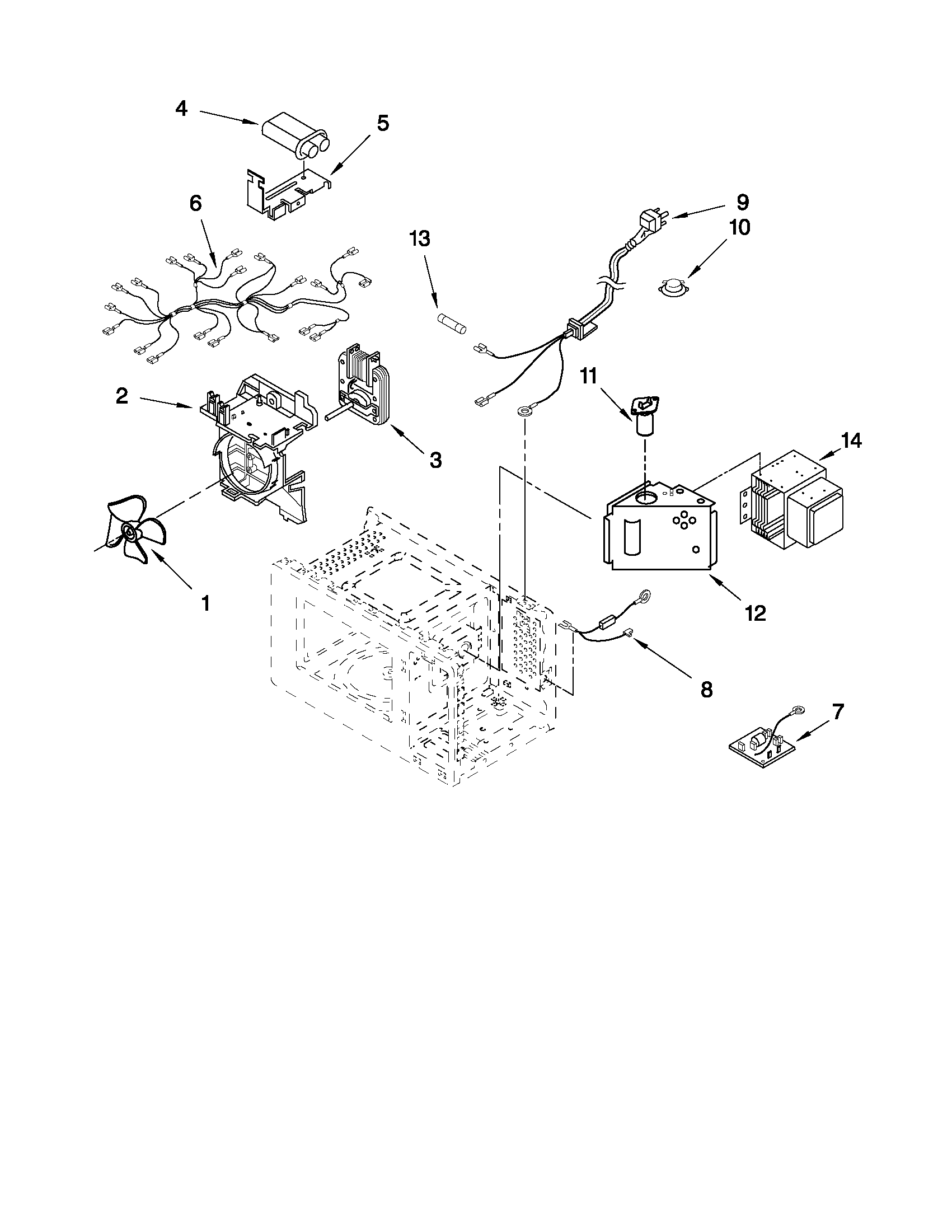

    Microwave interior parts diagram

    Microwave Magnetron

    Part #W10126794

    Replaced by #WPW10126794

    Info Icon
    Manufacturer substitution
    This part replaces W10126794. Substitute parts can look different from the original.
    In Stock
    $183.30
    6% OFF Phone Price : $195.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Glass Turntable Tray for Maytag MMW5530DAB20 - Part DE74-00023A

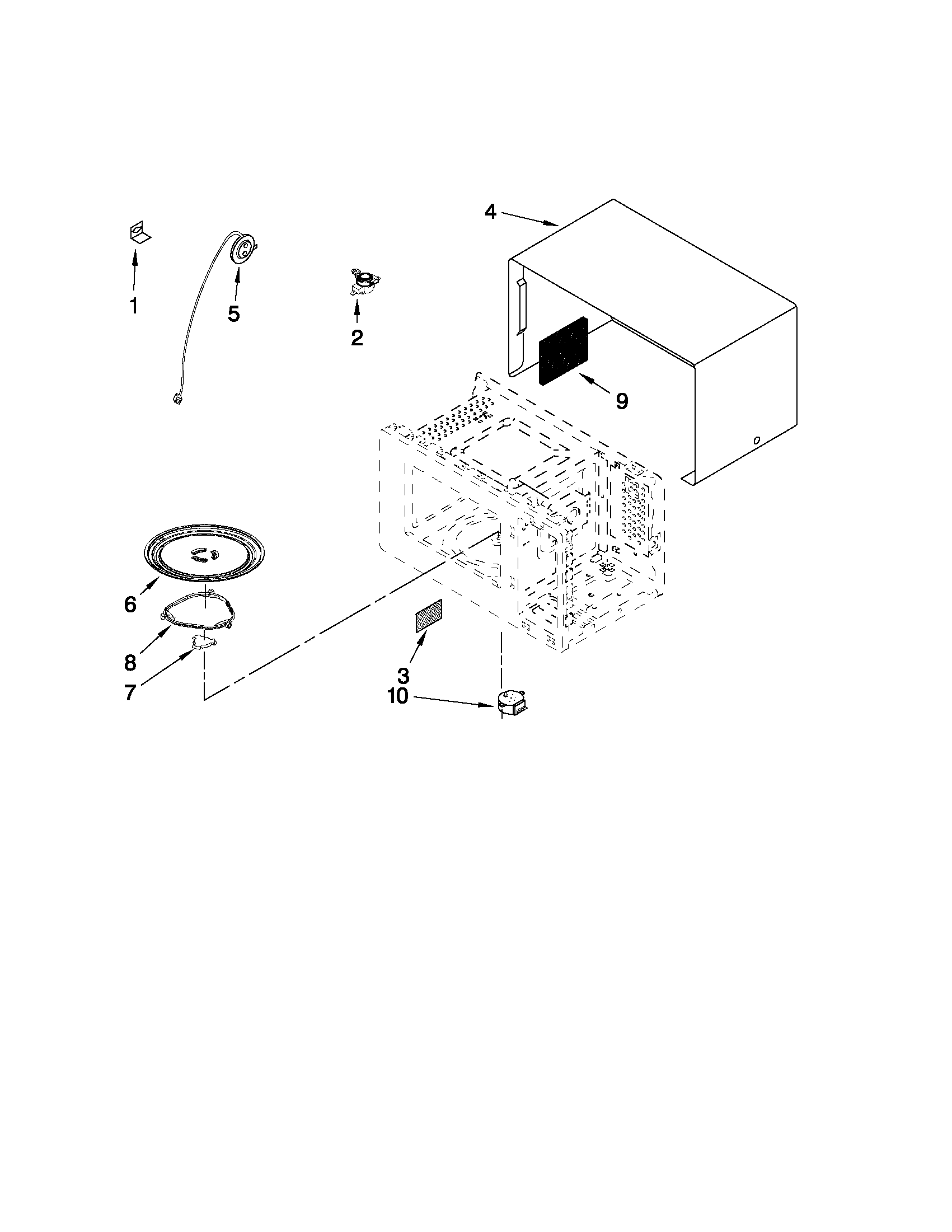

    Microwave oven cavity parts diagram

    Microwave Glass Turntable Tray

    Part #DE74-20002C

    Replaced by #DE74-00023A

    Info Icon
    Manufacturer substitution
    This part replaces DE74-20002C. Substitute parts can look different from the original.
    In Stock
    $91.16
    6% OFF Phone Price : $97.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Machine Screw for Maytag MMW5530DAB20 - Part STD510805

    Machine Screw

    Part #STD510805

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulation, Rear for Maytag MMW5530DAB20 - Part 7002P251-60

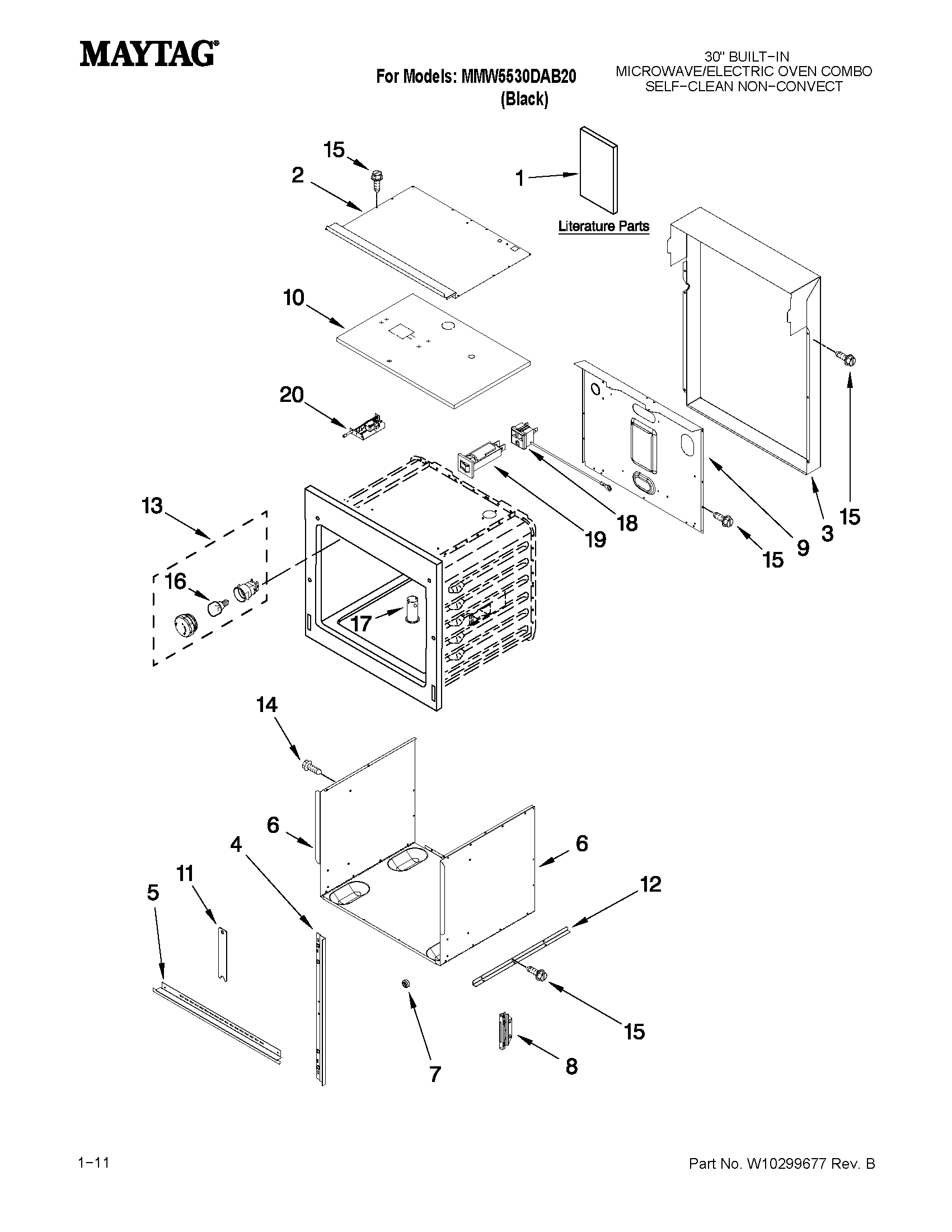

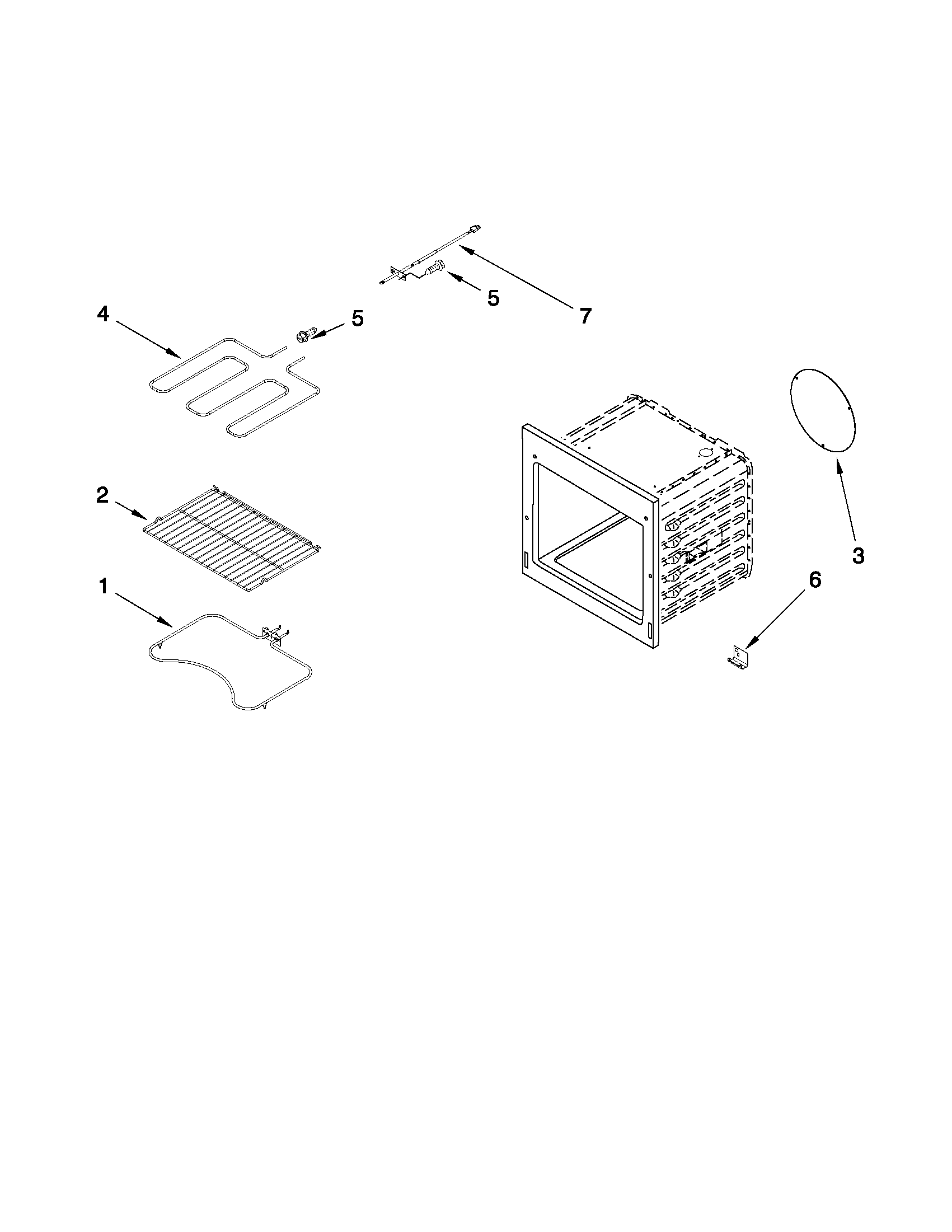

    Oven parts diagram

    Insulation, Rear

    Part #7002P251-60

    The manufacturer no longer makes this part, and there's no substitute part

  • Filter for Maytag MMW5530DAB20 - Part DE96-00399B

    Microwave interior parts diagram

    Filter

    Part #DE96-00399B

    The manufacturer no longer makes this part, and there's no substitute part

  • Mounting Bracket for Maytag MMW5530DAB20 - Part 3801F936-51

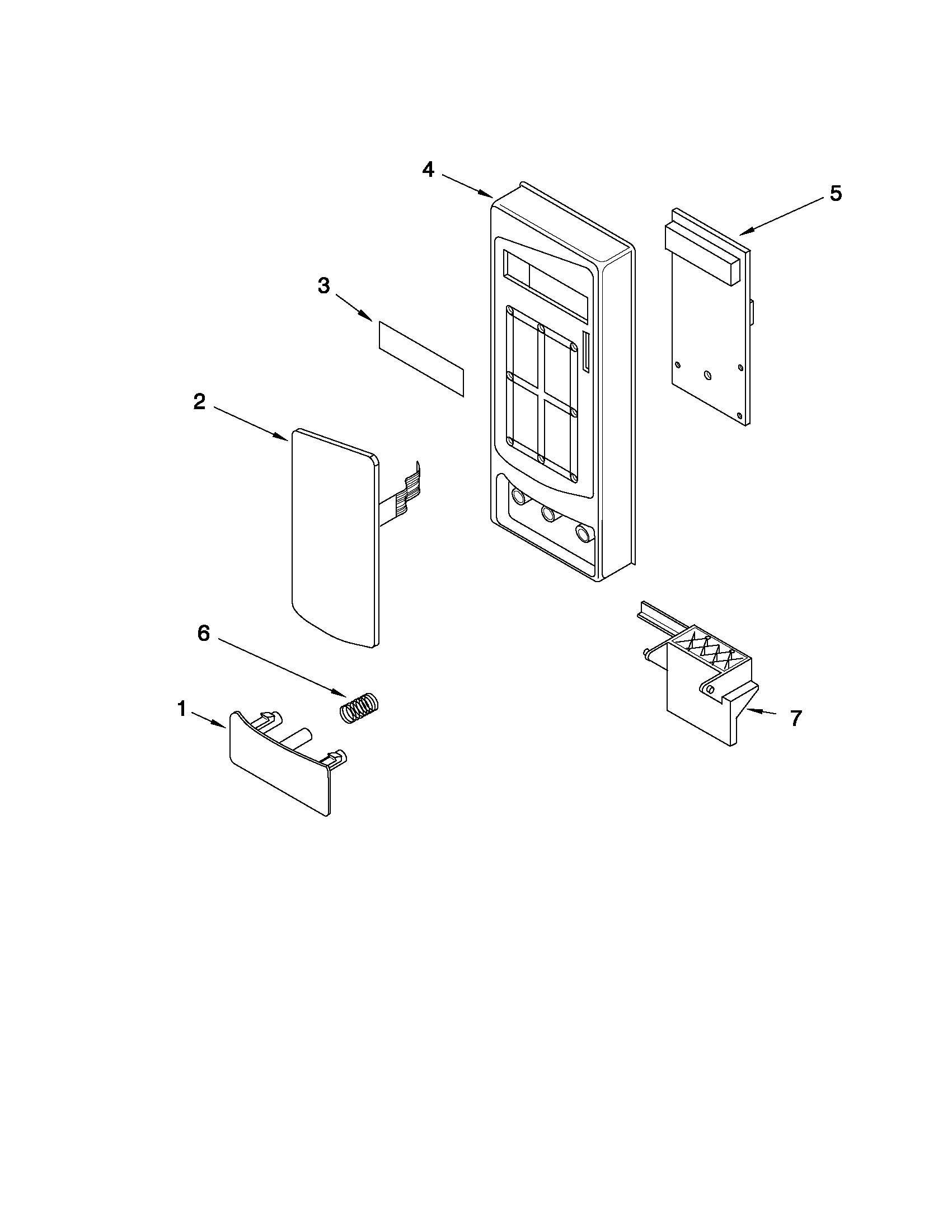

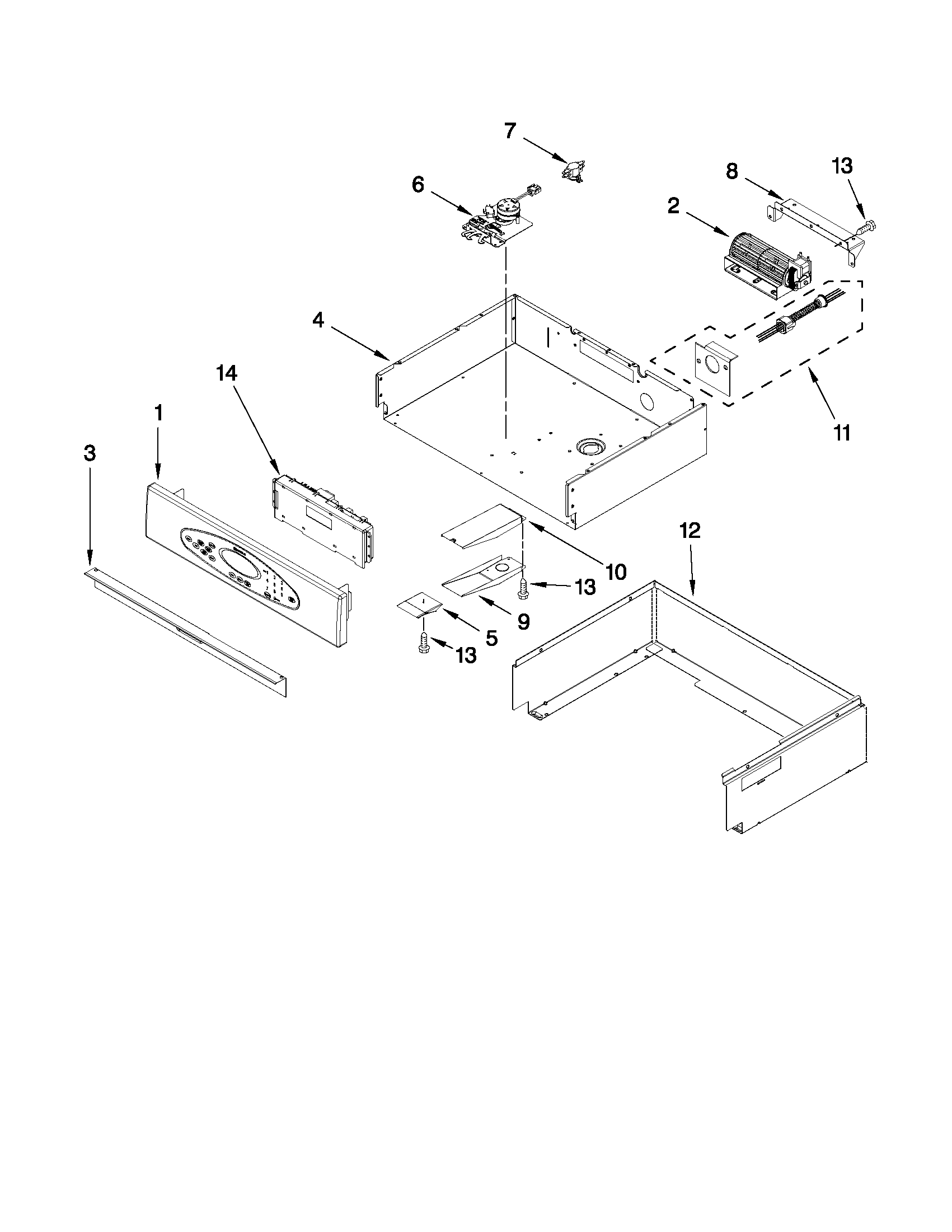

    Control panel parts diagram

    Mounting Bracket

    Part #3801F936-51

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket for Maytag MMW5530DAB20 - Part 3807F745-51

    Control panel parts diagram

    Bracket

    Part #3807F745-51

    The manufacturer no longer makes this part, and there's no substitute part

  • H.v.c Bracket for Maytag MMW5530DAB20 - Part DE61-50170A

    Microwave interior parts diagram

    H.v.c Bracket

    Part #DE61-50170A

    The manufacturer no longer makes this part, and there's no substitute part

  • Wall Oven Wire Harness for Maytag MMW5530DAB20 - Part 5171P264-60

    Optional parts diagram

    Wall Oven Wire Harness

    Part #5171P264-60

    The manufacturer no longer makes this part, and there's no substitute part
