Amana 10C2MD/P1177805R compact room air conditioner Parts
Here are the diagrams and repair parts for Amana 10C2MD/P1177805R compact room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 10C2MD/P1177805R Compact Room Air Conditioner

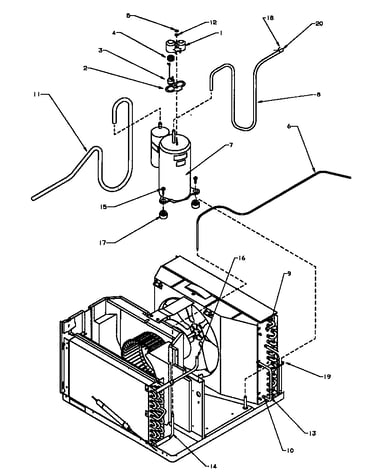

Compressor & tubing diagram
Elbow
Part #A4083933
The manufacturer no longer makes this part, and there's no substitute part

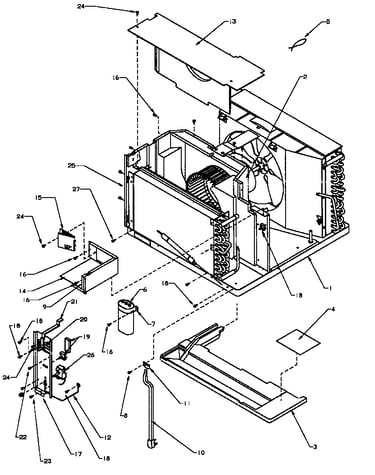

Control panel & misc chassis parts diagram
Use 10680501
Part #D6977701
The manufacturer no longer makes this part, and there's no substitute part
Control panel & misc chassis parts diagram
Lock Nut, Rotary Switch
Part #M0289601
The manufacturer no longer makes this part, and there's no substitute part

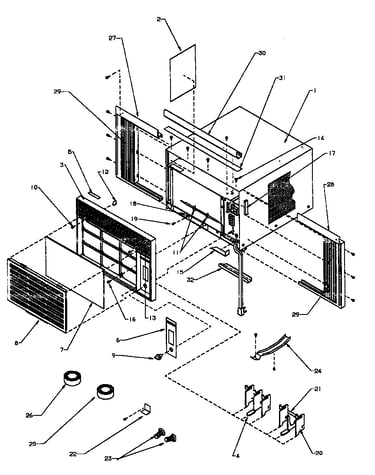

Front & outer case assembly diagram
Use D9969905
Part #D9969901
The manufacturer no longer makes this part, and there's no substitute part
Compressor & tubing diagram
Strainer
Part #B1394401
The manufacturer no longer makes this part, and there's no substitute part

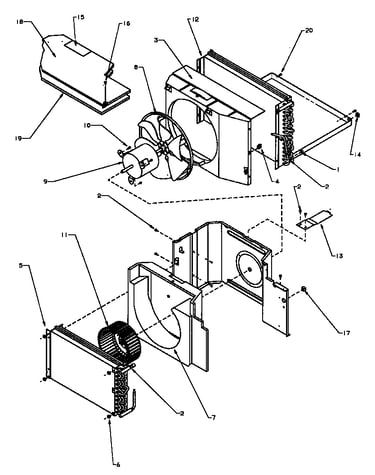

Evaporator, condenser & air flow diagram
Fan Blade
Part #C6400102
The manufacturer no longer makes this part, and there's no substitute part
Evaporator, condenser & air flow diagram
Use D9892003
Part #D9892003
The manufacturer no longer makes this part, and there's no substitute part
Front & outer case assembly diagram
Air Baffle
Part #C6444102
The manufacturer no longer makes this part, and there's no substitute part
Compressor & tubing diagram
Capillary Tube
Part #10069601
The manufacturer no longer makes this part, and there's no substitute part
Evaporator, condenser & air flow diagram
Evaporator
Part #D9878702
The manufacturer no longer makes this part, and there's no substitute part
