Model # 344363401 Official Kenmore fan-forced electric heater

Here are the diagrams and repair parts for Official Kenmore 344363401 fan-forced electric heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Thermostat 10481117
#15

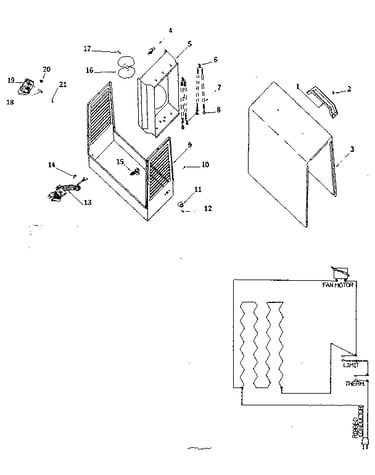

Replacement parts diagram

Thermostat

Part #10481117

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 1004249001
#16

Replacement parts diagram

Fan blade

Part #1004249001

The manufacturer no longer makes this part, and there's no substitute part

Element 10409000
#7

Replacement parts diagram

Element

Part #10409000

The manufacturer no longer makes this part, and there's no substitute part

Limiter 10470057
#4

Replacement parts diagram

Limiter

Part #10470057

The manufacturer no longer makes this part, and there's no substitute part

Screw 2490177000
#10

Replacement parts diagram

Screw

Part #2490177000

The manufacturer no longer makes this part, and there's no substitute part

Knob 1003971005
#11

Replacement parts diagram

Knob

Part #1003971005

The manufacturer no longer makes this part, and there's no substitute part

Fact Tag 1004944000

#NI

All parts diagram

Fact tag

Part #1004944000

The manufacturer no longer makes this part, and there's no substitute part

Spacer 26644022
#18

Replacement parts diagram

Spacer

Part #26644022

The manufacturer no longer makes this part, and there's no substitute part

Washer 138473000
#21

Replacement parts diagram

Washer

Part #138473000

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 10599011
#13

Replacement parts diagram

Cord assembly

Part #10599011

The manufacturer no longer makes this part, and there's no substitute part
