Model # 218-5K/P67535-7R Official Amana room air conditioner

Here are the diagrams and repair parts for Official Amana 218-5K-P67535-7R room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

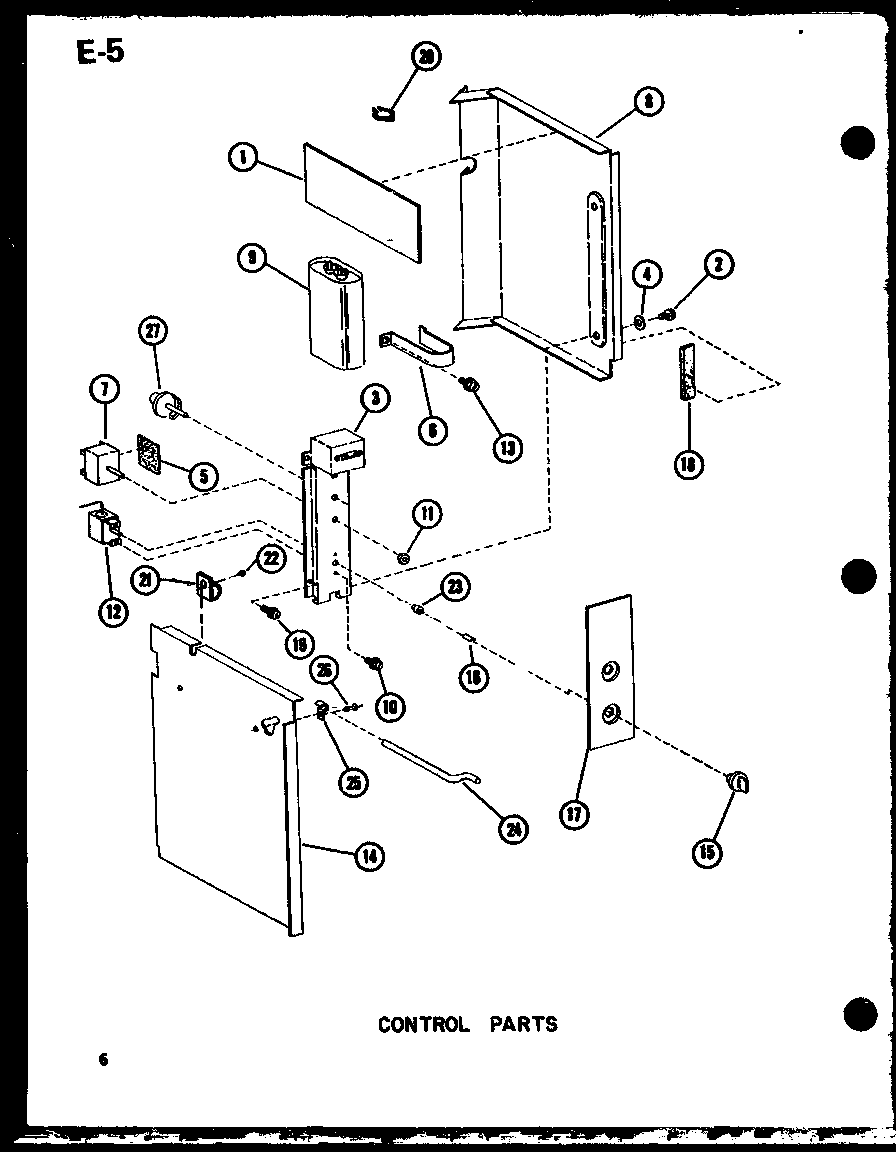

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Screw M0211217
Screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw M0211543
#4

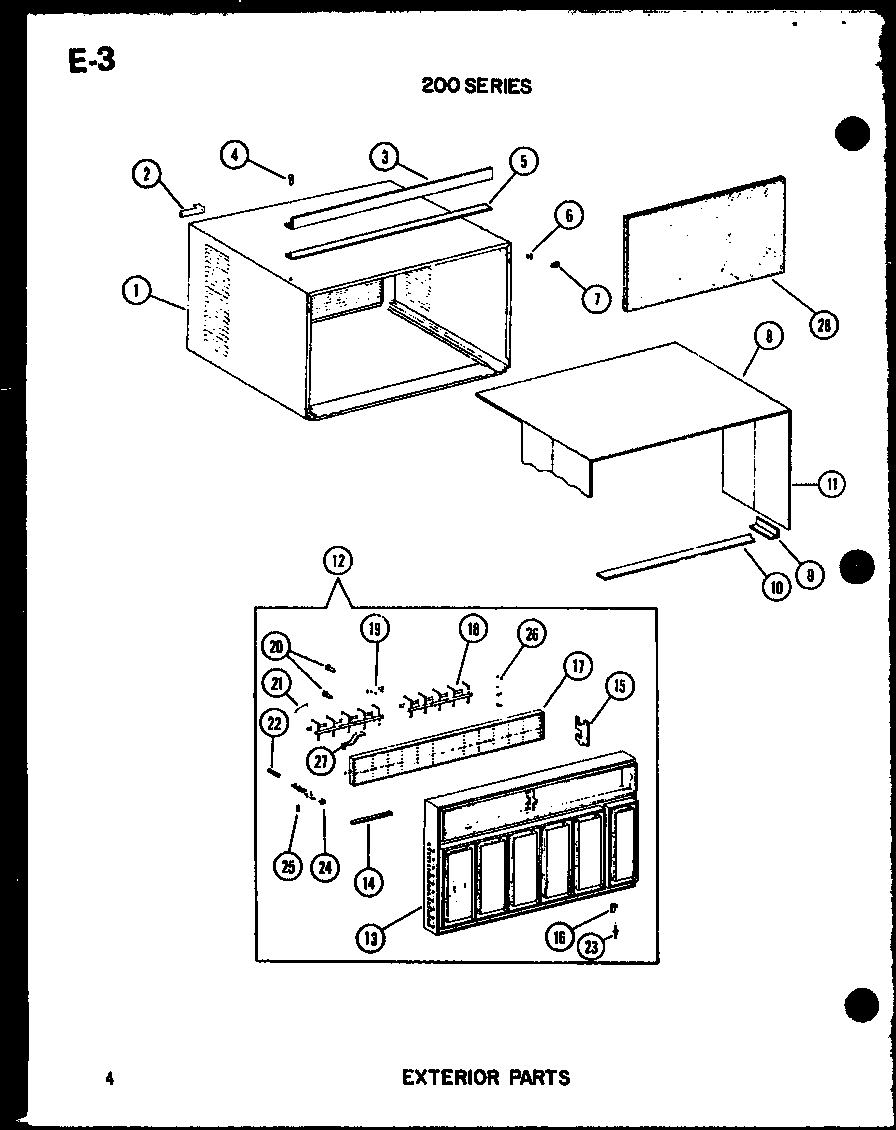

Exterior parts diagram

Screw

Part #M0211543

Replaced by #WP1163839

?
Manufacturer substitution
This part replaces M0211543. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0211017
#21

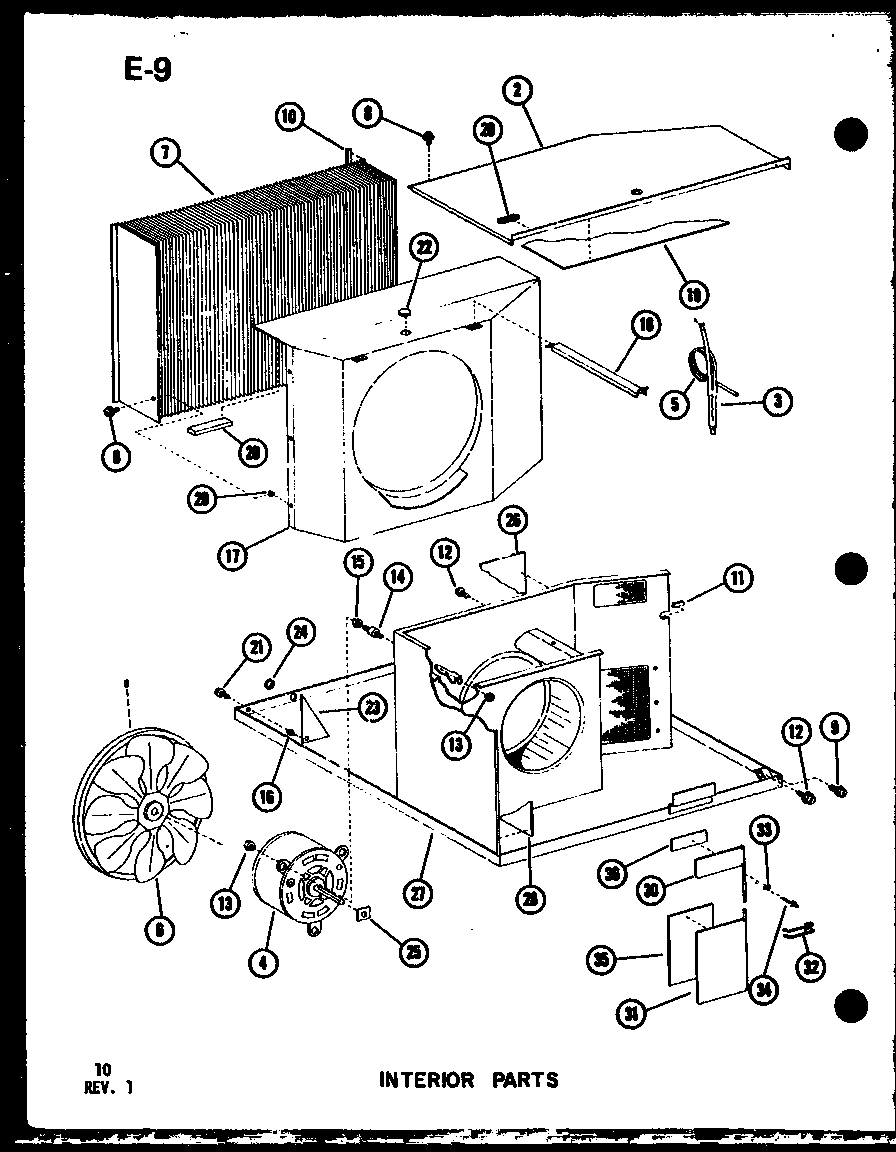

Interior parts diagram

Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Use M2820-15 M0282013
#13

Interior parts diagram

Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer M0274008
#8

Compressor diagram

Washer

Part #M0274008

The manufacturer no longer makes this part, and there's no substitute part

Pop Rivet A4539601
Pop rivet

Part #A4539601

The manufacturer no longer makes this part, and there's no substitute part

Capillary Pr D6806901
#5

Interior parts diagram

Capillary pr

Part #D6806901

The manufacturer no longer makes this part, and there's no substitute part

Angle Support C5872104
#2B

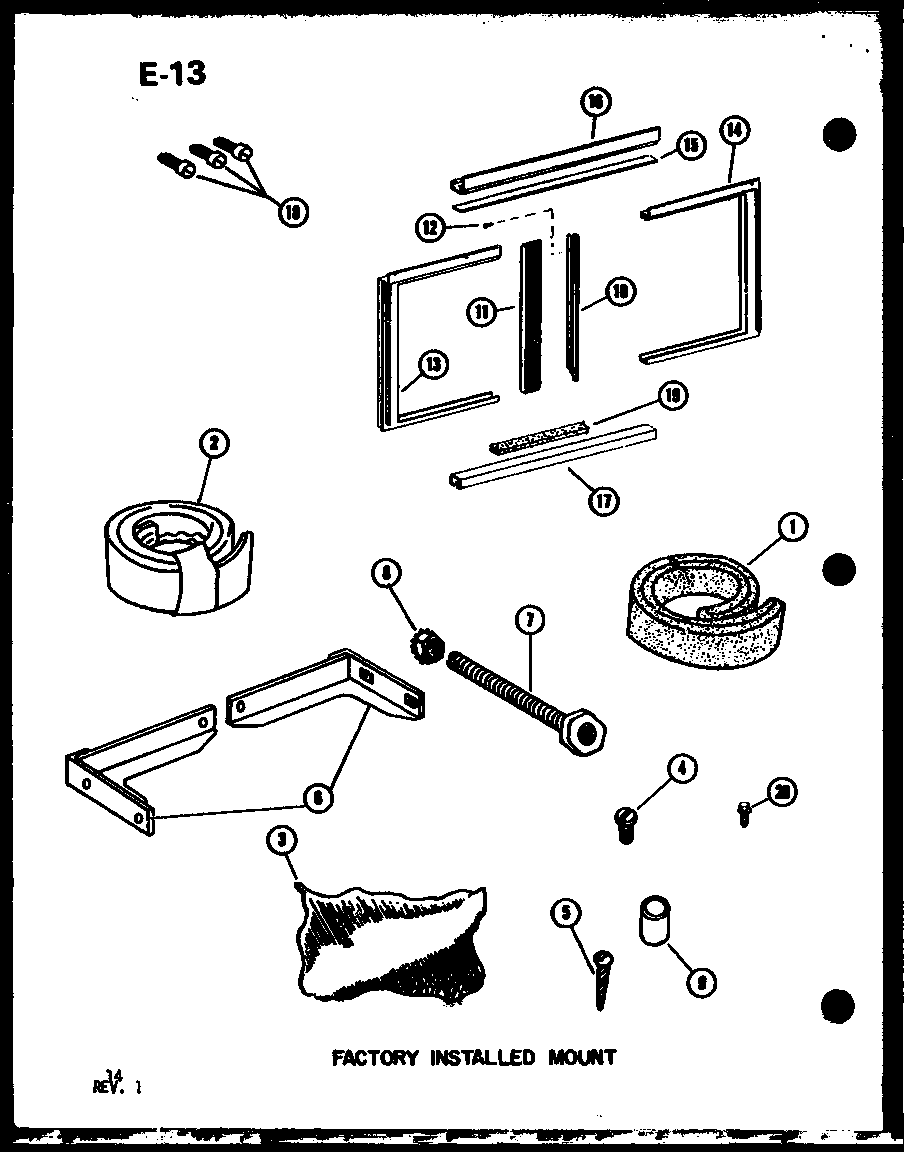

Factory installed mount diagram

Angle support

Part #C5872104

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Cover D6755101
#14

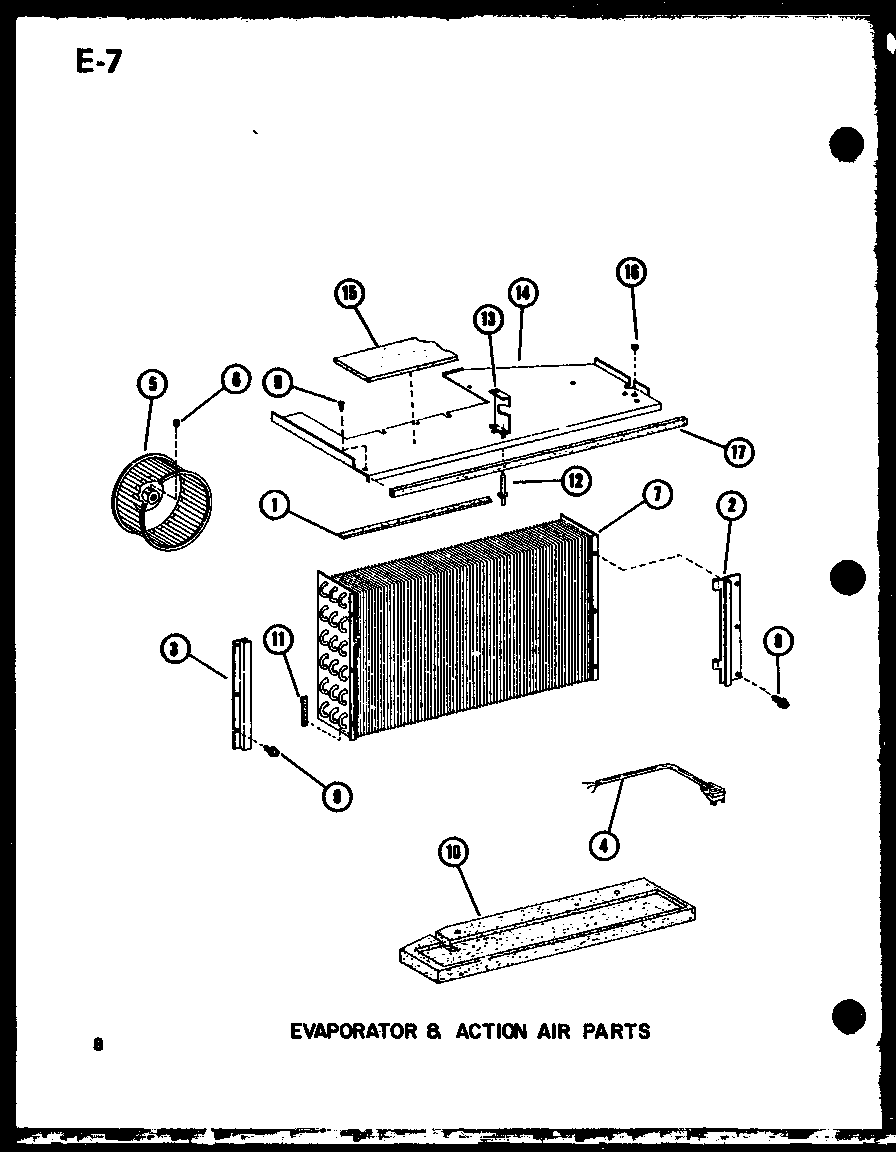

Evaporator & action air parts diagram

Evaporator cover

Part #D6755101

The manufacturer no longer makes this part, and there's no substitute part
