Model # 75618835 Official Craftsman commercial 1/2" heavy-duty air impact wrench

Here are the diagrams and repair parts for Official Craftsman 75618835 commercial 1/2" heavy-duty air impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

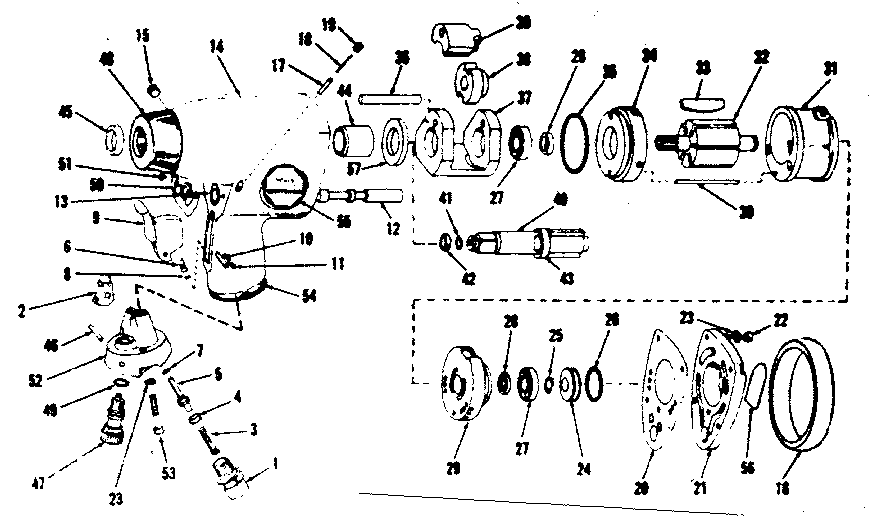

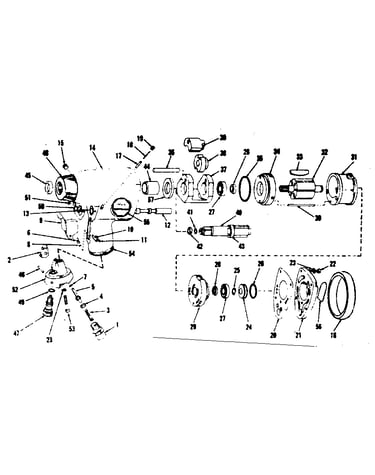

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Block Gasket 20699895
#54

Parts diagram

Block gasket

Part #20699895

The manufacturer no longer makes this part, and there's no substitute part

Pipe Plug 20289953
#15

Parts diagram

Pipe plug

Part #20289953

The manufacturer no longer makes this part, and there's no substitute part

Socket Retainer 20688097
#42

Parts diagram

Socket retainer

Part #20688097

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 20291250
#23

Parts diagram

Lock washer

Part #20291250

The manufacturer no longer makes this part, and there's no substitute part

Dog Pin 20688864
#36

Parts diagram

Dog pin

Part #20688864

The manufacturer no longer makes this part, and there's no substitute part

Trigger Pin 20214764
#10

Parts diagram

Trigger pin

Part #20214764

The manufacturer no longer makes this part, and there's no substitute part

Thrttl Valve 20699901
#5

Parts diagram

Thrttl valve

Part #20699901

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 20687513
#28

Parts diagram

Oil seal

Part #20687513

The manufacturer no longer makes this part, and there's no substitute part

Trigger 20699927
#9

Parts diagram

Trigger

Part #20699927

The manufacturer no longer makes this part, and there's no substitute part

Exhst Dflctr 20699897
#50

Parts diagram

Exhst dflctr

Part #20699897

The manufacturer no longer makes this part, and there's no substitute part
