Model # 32LE30Q Official Element lcd television

Here are the diagrams and repair parts for Official Element 32LE30Q lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

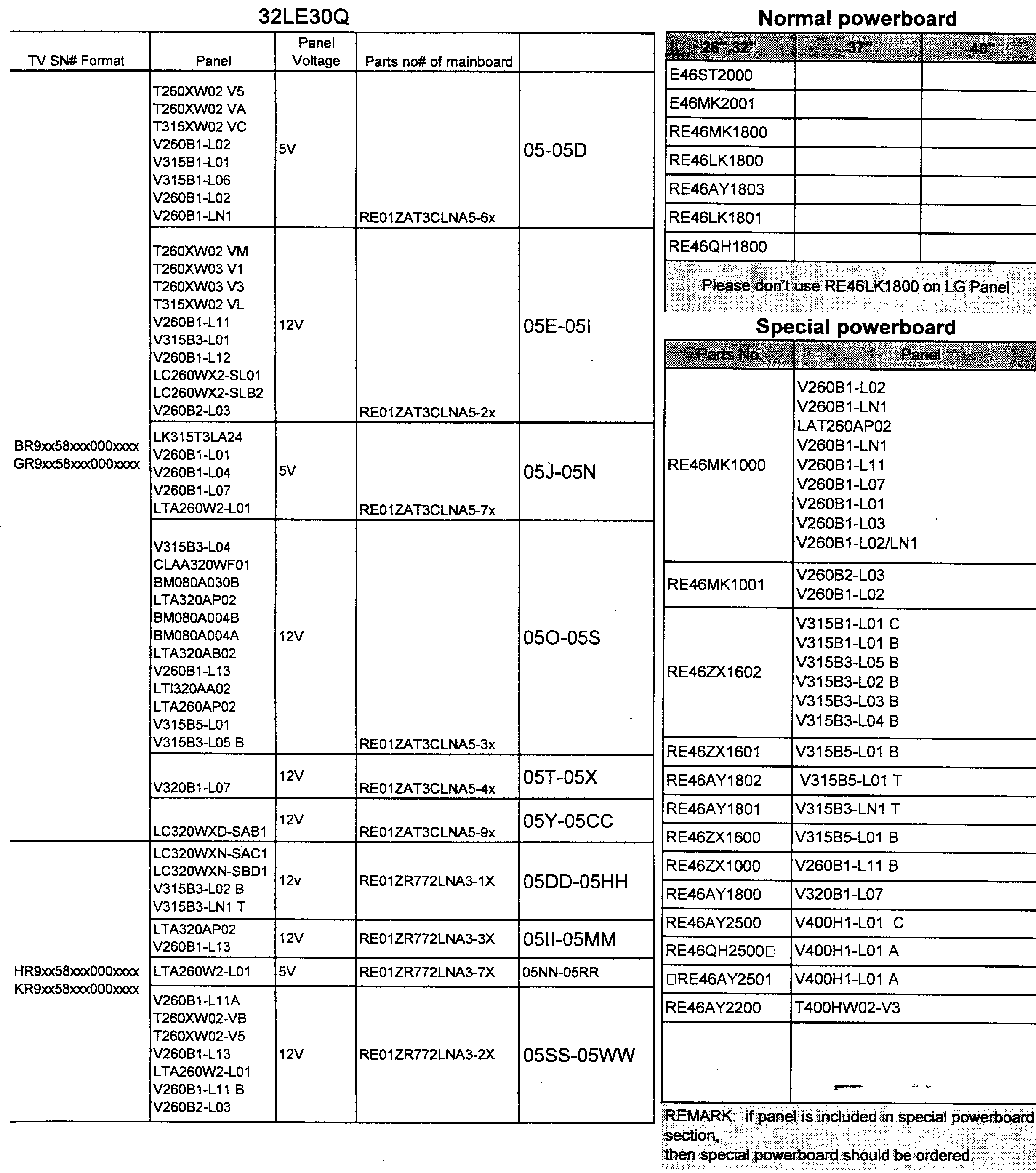

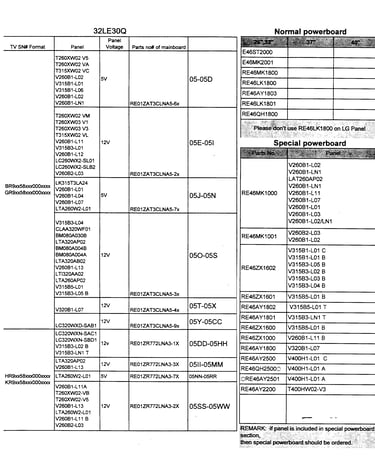

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Television Power Supply Board RE46AY1803
Television power supply board

Part #RE46AY1803

The manufacturer no longer makes this part, and there's no substitute part

Television Power Supply Board RE46MK1800
Television power supply board

Part #RE46MK1800

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb E46ST2000
Power pcb

Part #E46ST2000

The manufacturer no longer makes this part, and there's no substitute part

Pcb,main Board RE01ZAT3CLNA5-25
#5I

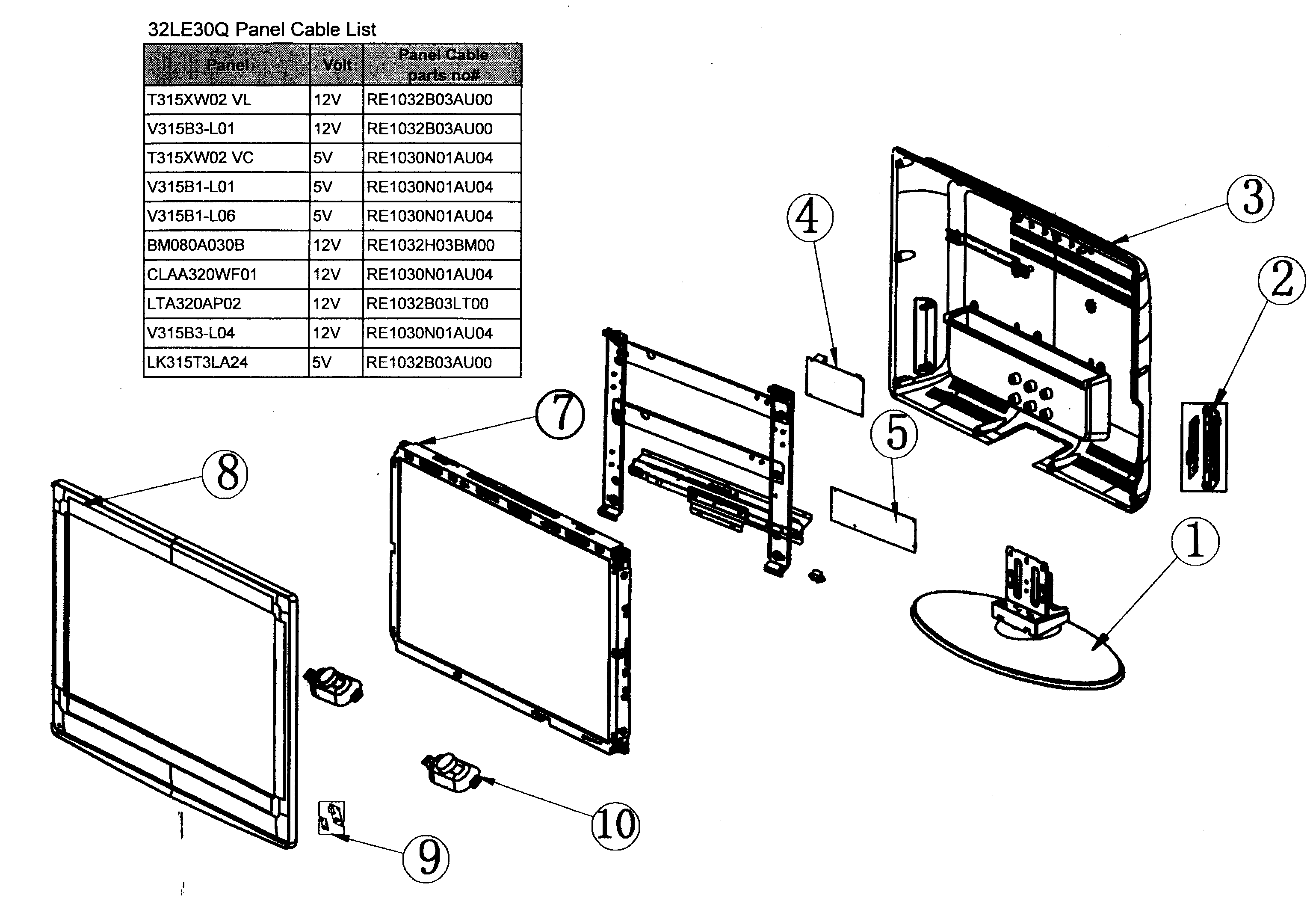

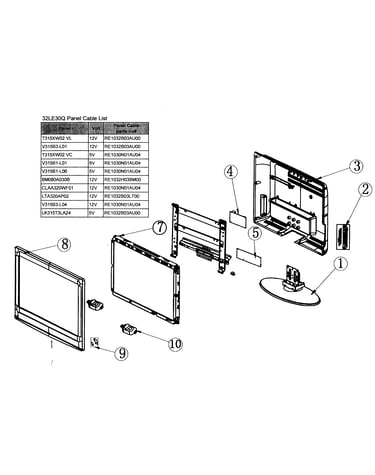

Cabinet parts diagram

Pcb,main board

Part #RE01ZAT3CLNA5-25

The manufacturer no longer makes this part, and there's no substitute part

Pcb,main Board RE01ZAT3CLNA5-24
#5H

Cabinet parts diagram

Pcb,main board

Part #RE01ZAT3CLNA5-24

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb RE01ZR772LNA3-34
#5LL

Cabinet parts diagram

Main pcb

Part #RE01ZR772LNA3-34

The manufacturer no longer makes this part, and there's no substitute part

Pcb,main Board RE01ZAT3CLNA5-35
#5S

Cabinet parts diagram

Pcb,main board

Part #RE01ZAT3CLNA5-35

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb RE46LK1801
Power pcb

Part #RE46LK1801

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb RE01ZAT3CLNA5-22
#5F

Cabinet parts diagram

Main pcb

Part #RE01ZAT3CLNA5-22

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD863408
#NI

Cabinet parts diagram

Machine screw

Part #STD863408

The manufacturer no longer makes this part, and there's no substitute part
