Model # PWP125(5NCC) Official Smith Corona word processor

Here are the diagrams and repair parts for Official Smith Corona PWP1255NCC word processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

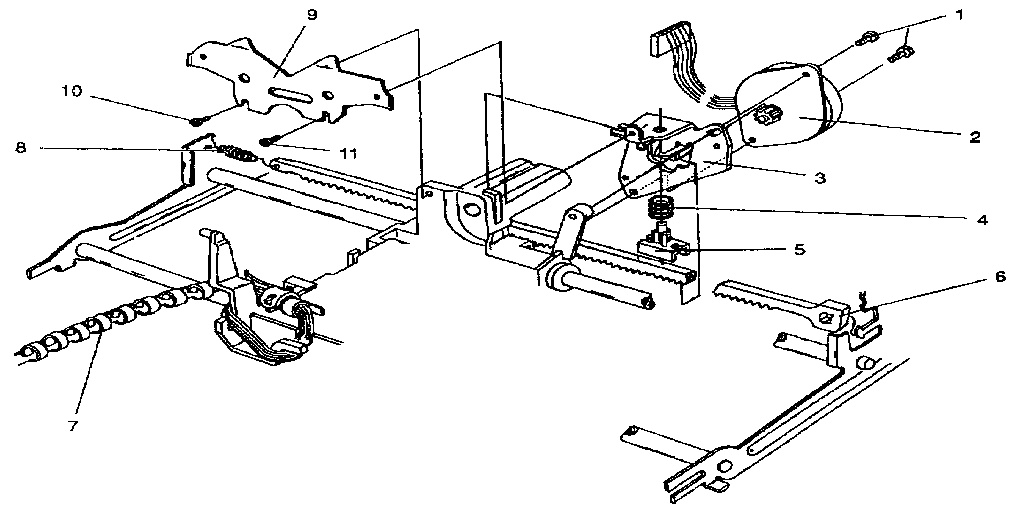

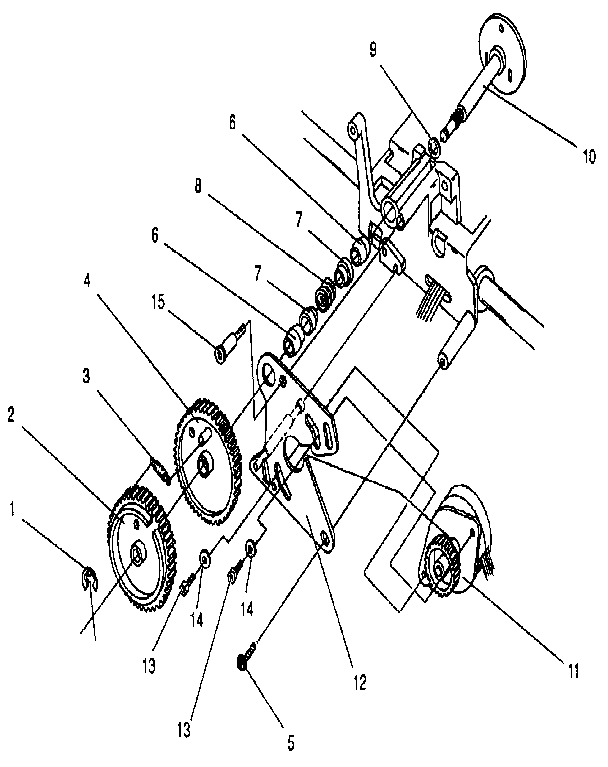

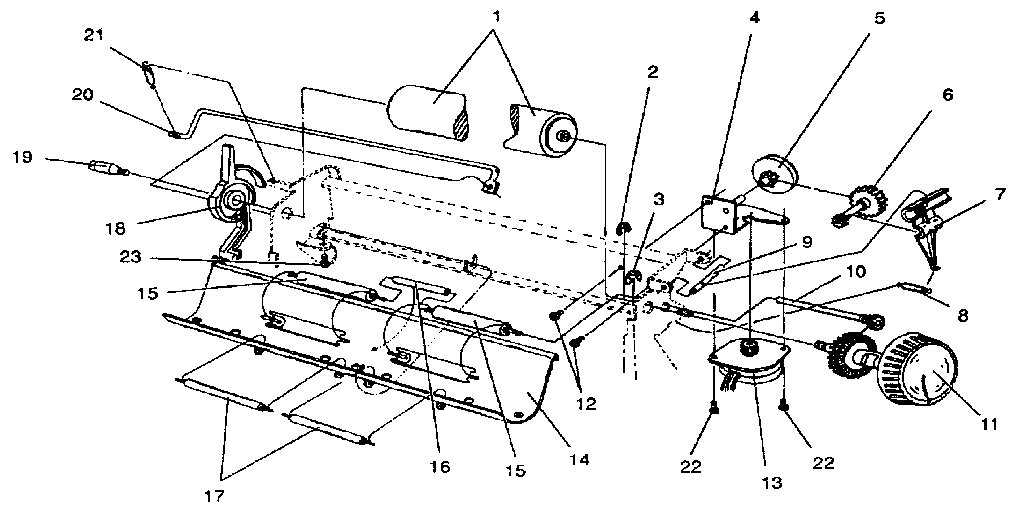

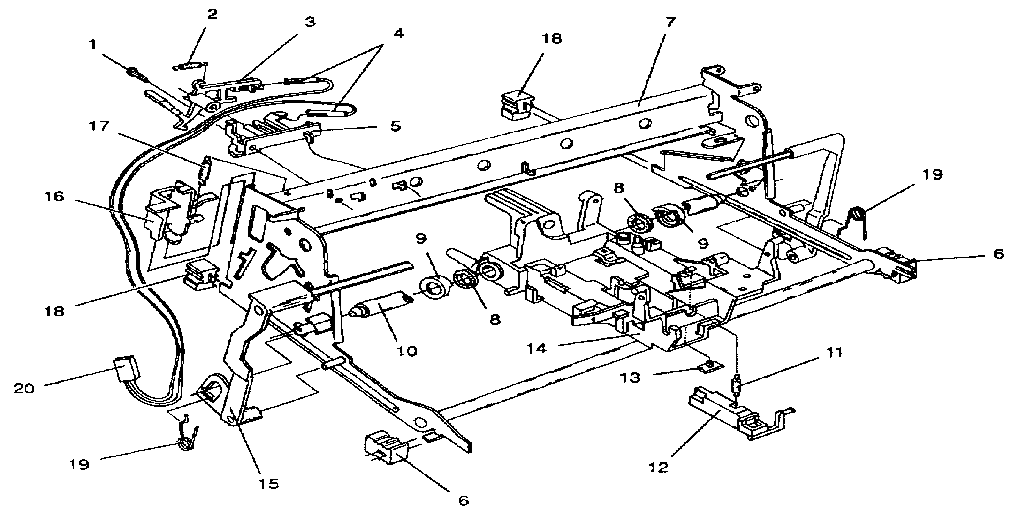

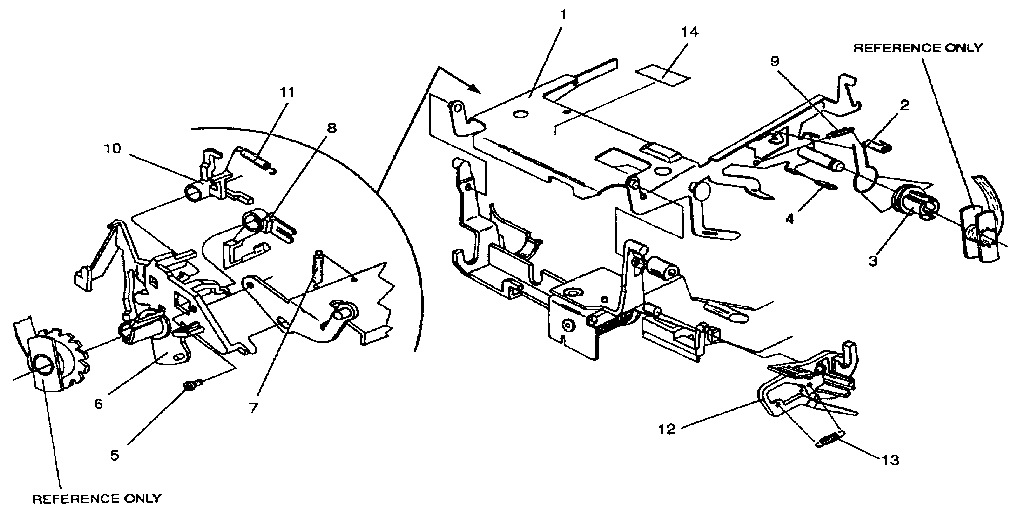

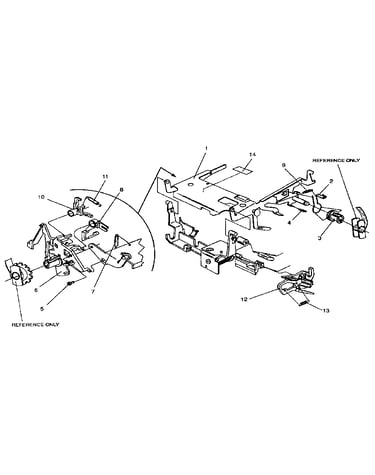

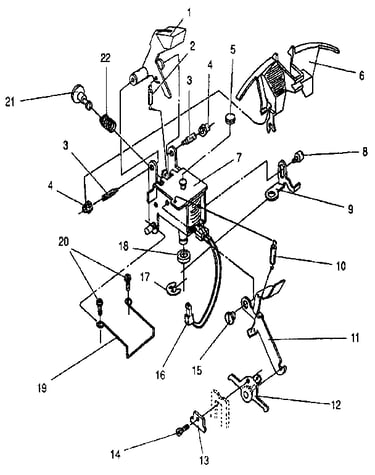

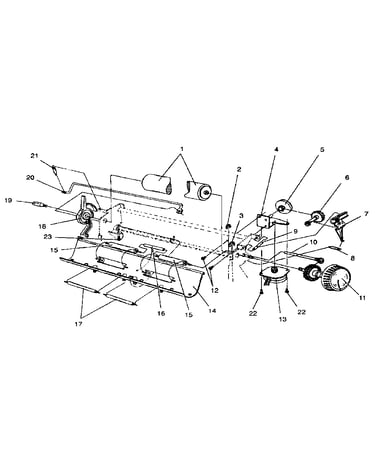

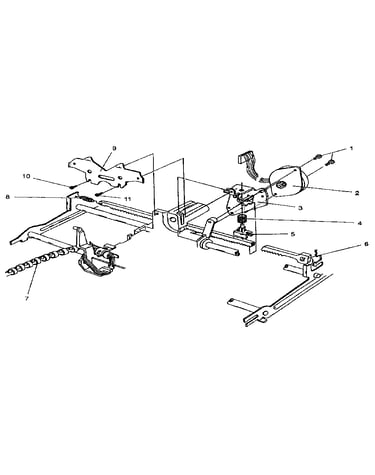

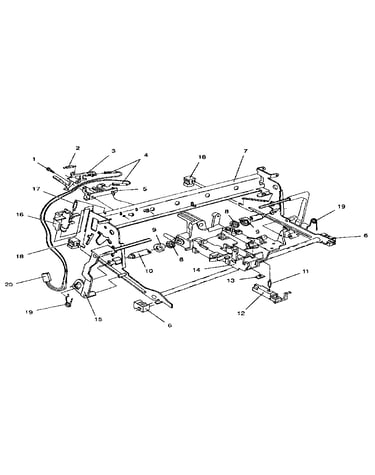

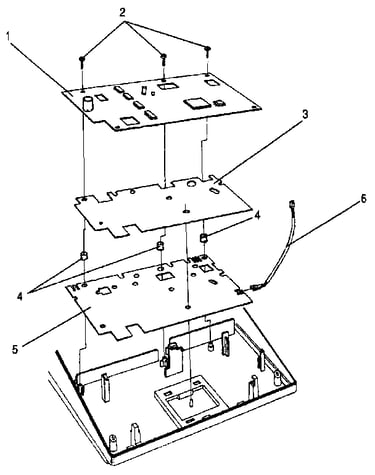

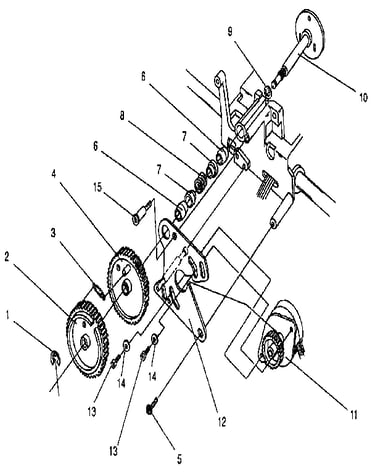

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |

Lift-off 59048

#NI

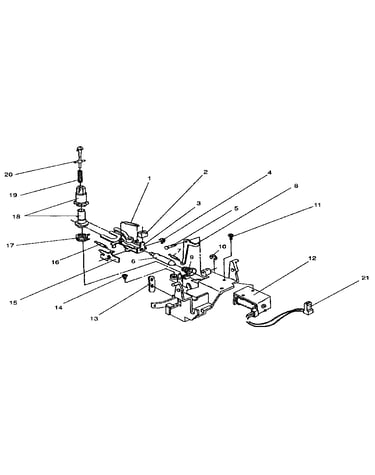

All parts diagram

Lift-off

Part #59048

The manufacturer no longer makes this part, and there's no substitute part

Cvr Up Rbbn 59055

#NI

All parts diagram

Cvr up rbbn

Part #59055

The manufacturer no longer makes this part, and there's no substitute part

Spring 740111
Spring

Part #740111

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 900240
#11

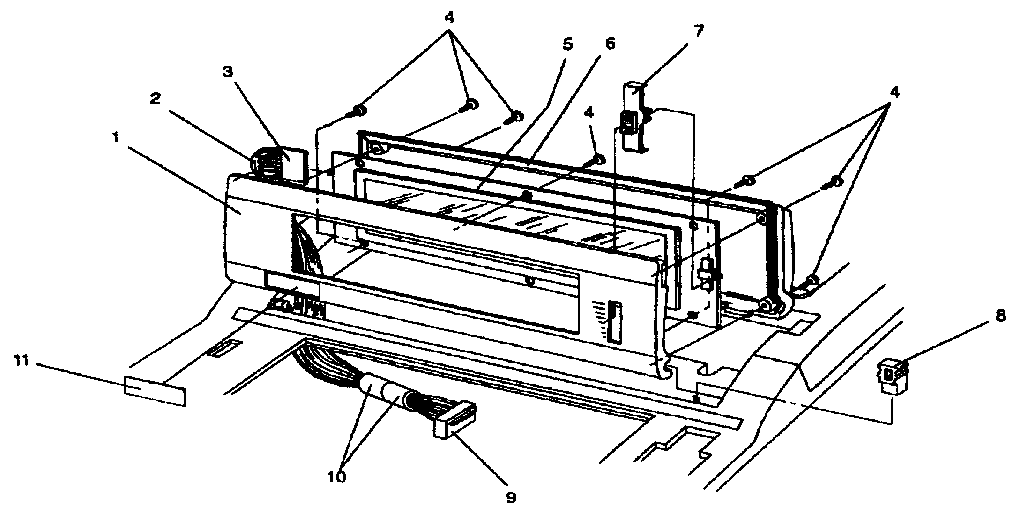

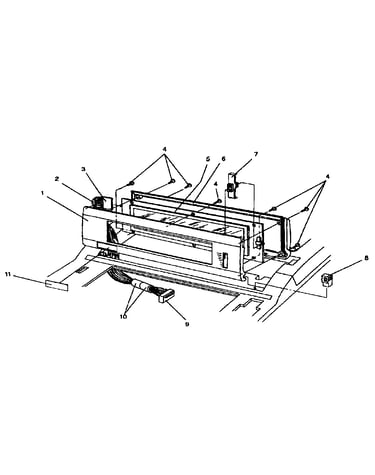

Lcd assembly diagram

Nameplate

Part #900240

The manufacturer no longer makes this part, and there's no substitute part

Switch 778814
#5

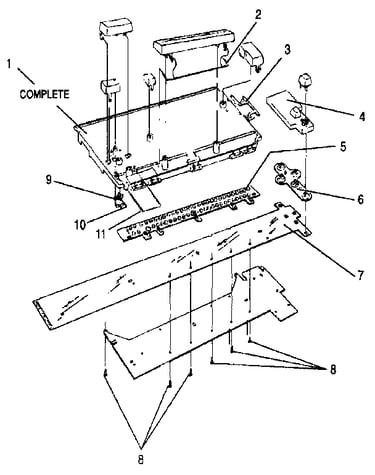

Keyboard diagram

Switch

Part #778814

The manufacturer no longer makes this part, and there's no substitute part

Screw 782219
#6

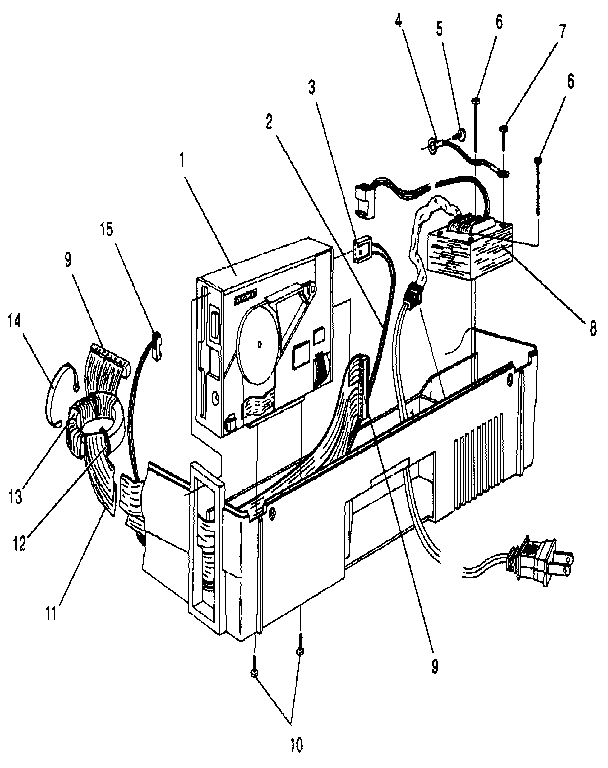

Disk drive and transformer diagram

Screw

Part #782219

The manufacturer no longer makes this part, and there's no substitute part

Electrc Lead 776575
#11

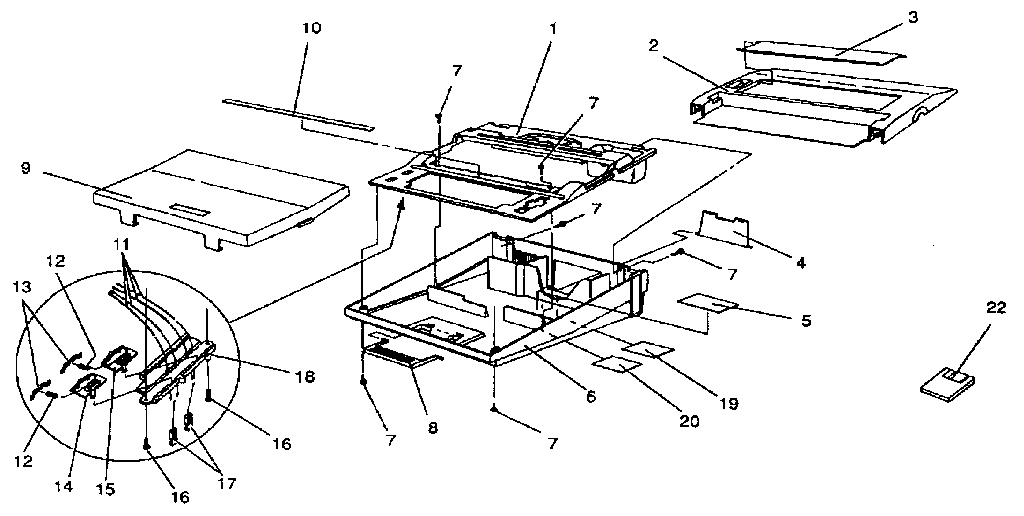

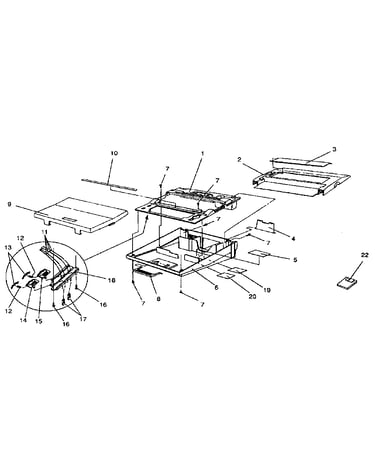

Jackets diagram

Electrc lead

Part #776575

The manufacturer no longer makes this part, and there's no substitute part

Label 774465
#19

Jackets diagram

Label

Part #774465

The manufacturer no longer makes this part, and there's no substitute part

Key, 6 779506
#7

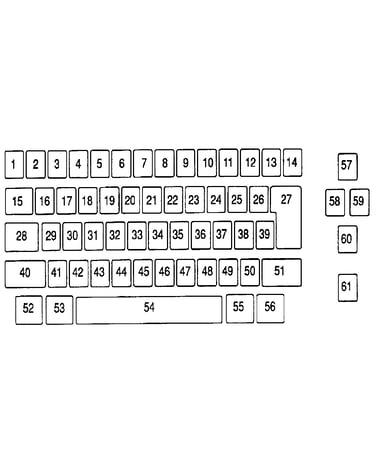

Keybutton reference chart diagram

Key, 6

Part #779506

The manufacturer no longer makes this part, and there's no substitute part

Correctable Ribbon 27128

#NI

All parts diagram

Correctable ribbon

Part #27128

The manufacturer no longer makes this part, and there's no substitute part
