Model # 167430585 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 167430585 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

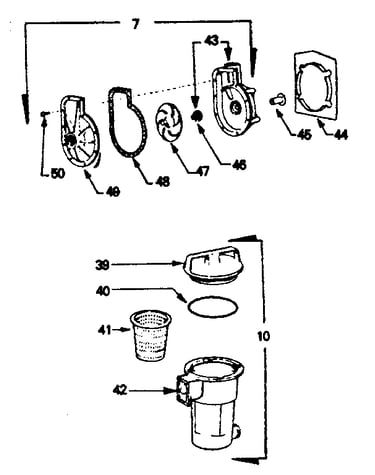

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Clamp 066-6217
#15

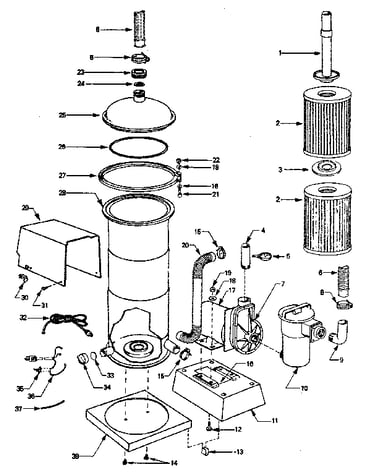

Replacement parts diagram

Clamp

Part #066-6217

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 066-6216
#8

Replacement parts diagram

Hose clamp

Part #066-6216

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 052-3701
#18

Replacement parts diagram

Flat washer

Part #052-3701

The manufacturer no longer makes this part, and there's no substitute part

Teflon Tape 089-6713

#NI

All parts diagram

Teflon tape

Part #089-6713

The manufacturer no longer makes this part, and there's no substitute part

Filter Cover 098-7386
#25

Replacement parts diagram

Filter cover

Part #098-7386

The manufacturer no longer makes this part, and there's no substitute part

Adapter 098-7123
#9

Replacement parts diagram

Adapter

Part #098-7123

The manufacturer no longer makes this part, and there's no substitute part

Hose 102-7025
#20

Replacement parts diagram

Hose

Part #102-7025

The manufacturer no longer makes this part, and there's no substitute part

Drain Cap 098-7007
#34

Replacement parts diagram

Drain cap

Part #098-7007

The manufacturer no longer makes this part, and there's no substitute part

Grommet 099-6945
#30

Replacement parts diagram

Grommet

Part #099-6945

The manufacturer no longer makes this part, and there's no substitute part

Pump 09-1026
Pump

Part #09-1026

The manufacturer no longer makes this part, and there's no substitute part
