Amana
Central Air Conditioner

Model # BCEA36T001A/P9846209C Official Amana high-efficiency universal blower unit

Here are the diagrams and repair parts for Official Amana BCEA36T001A-P9846209C high-efficiency universal blower unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

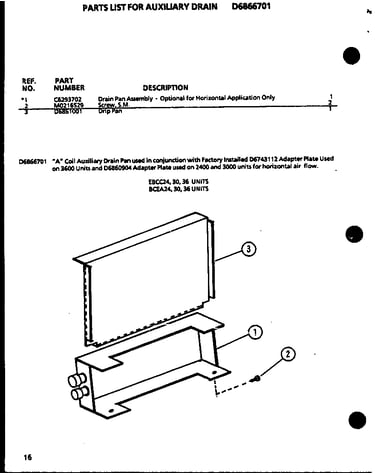

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Screw M0211217
Screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Use M0220617 M0233704
#17

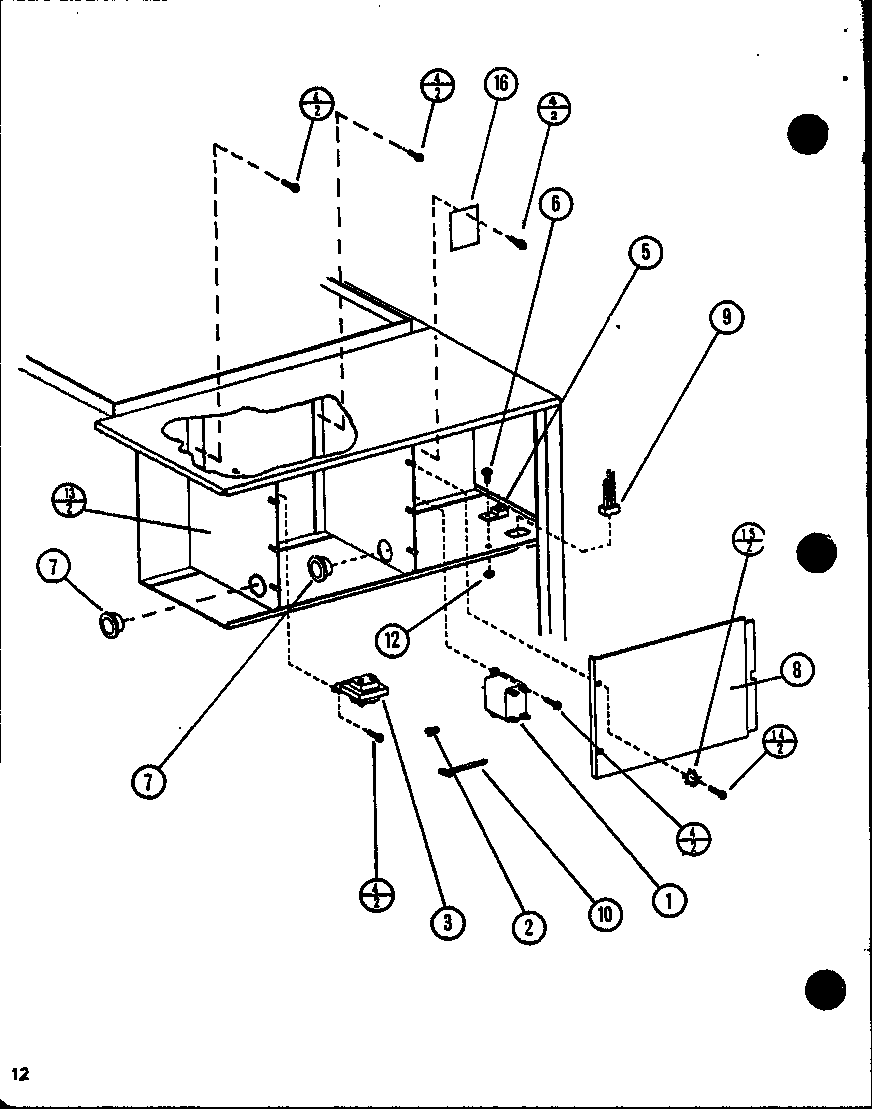

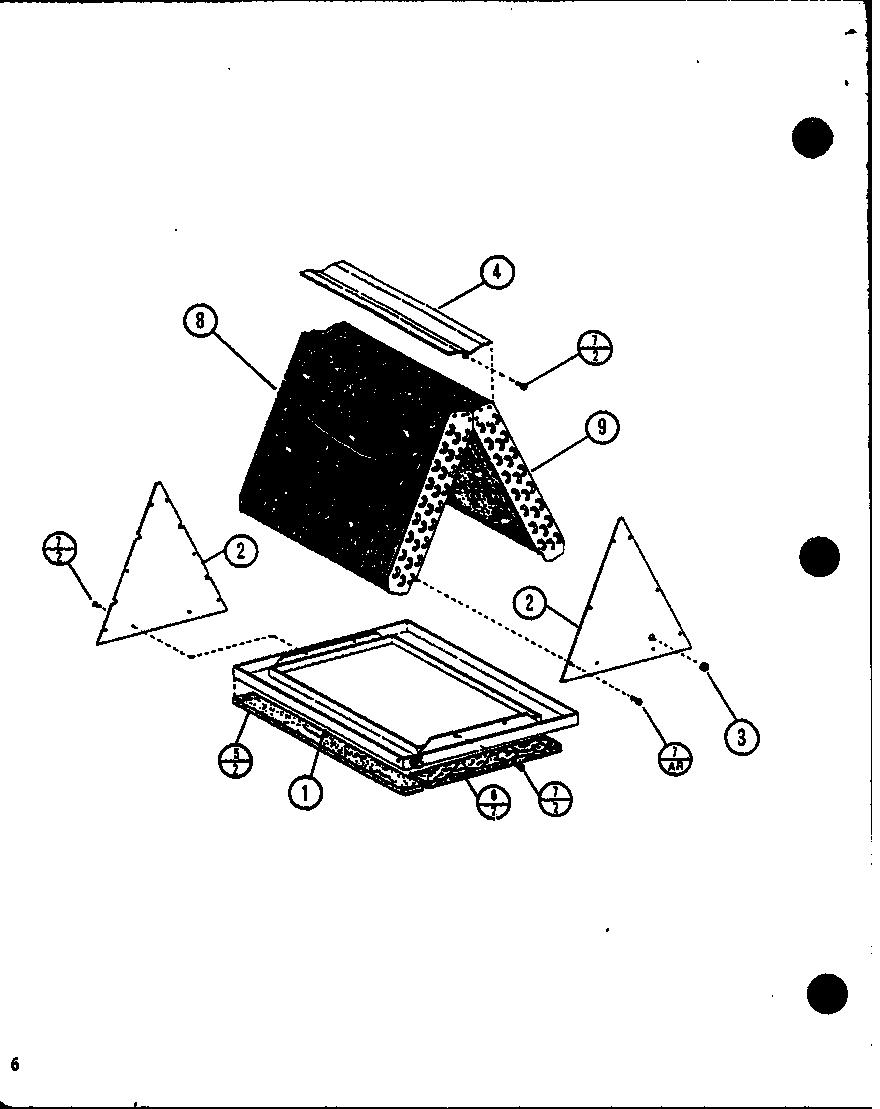

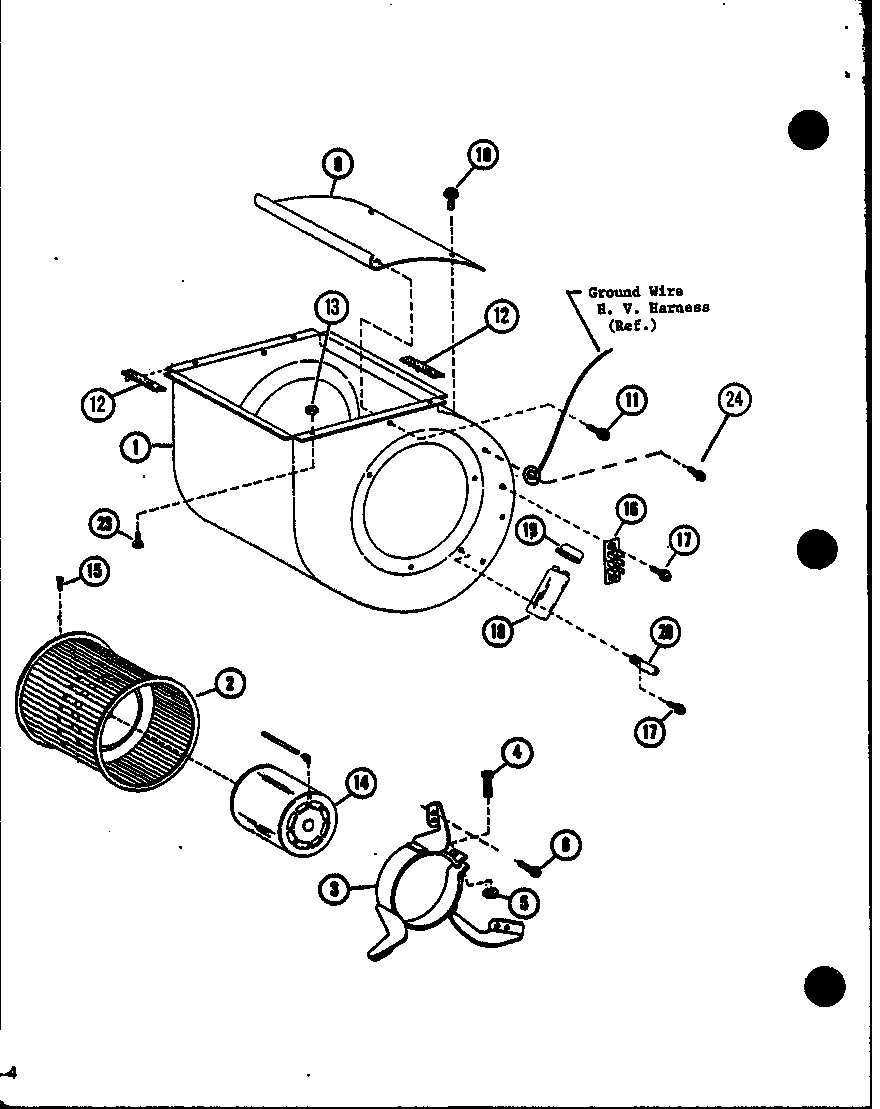

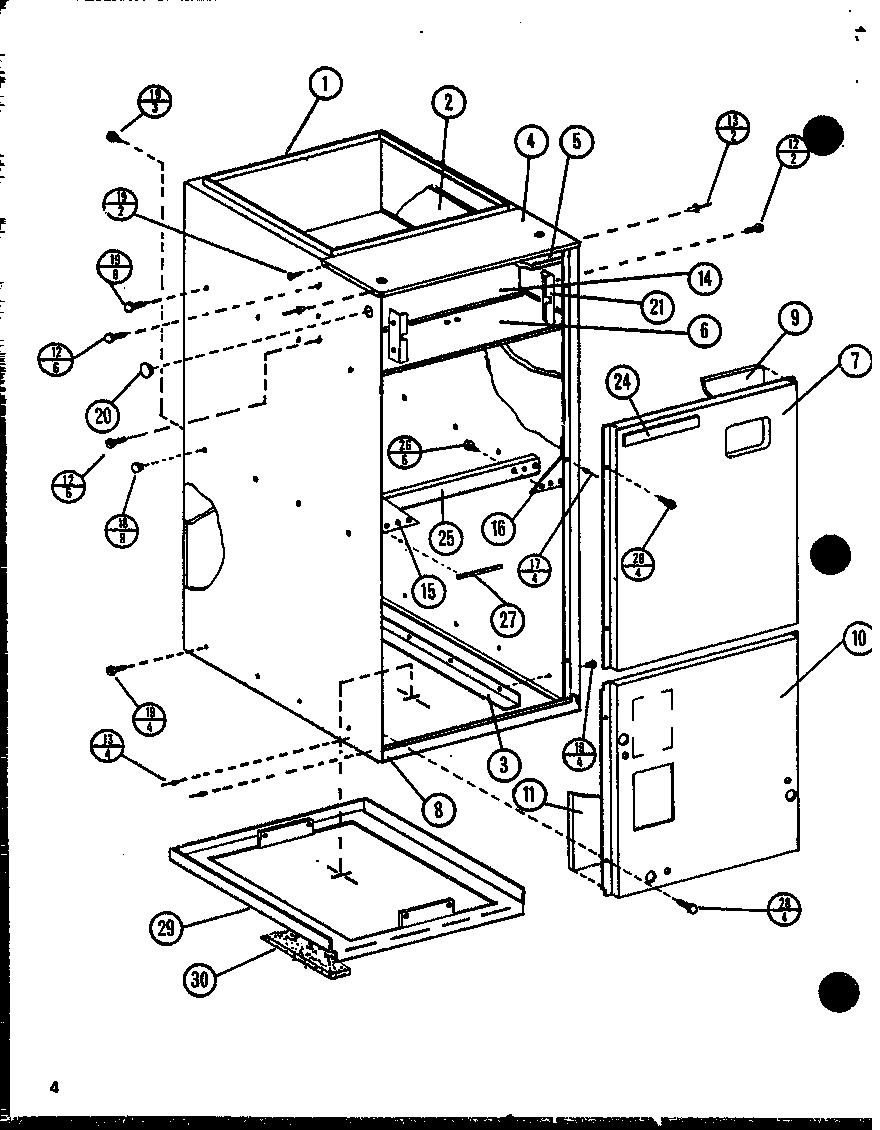

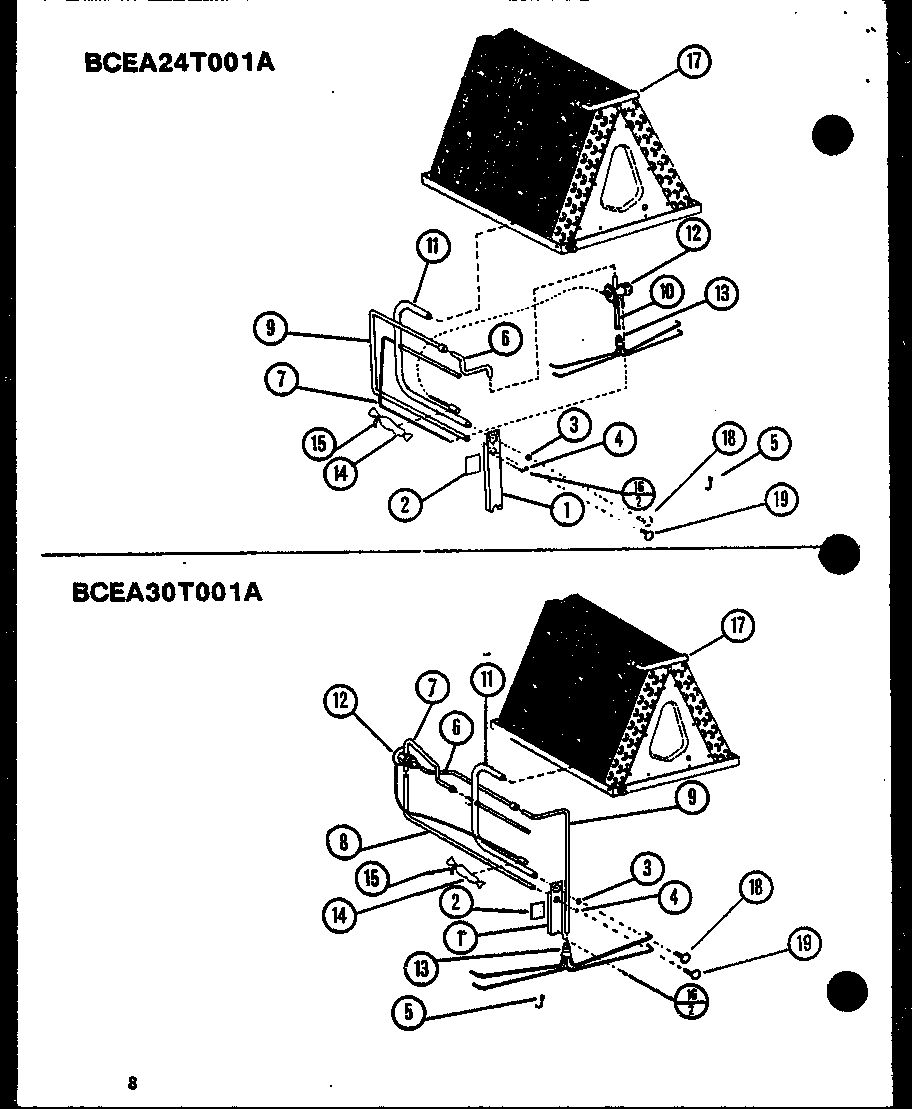

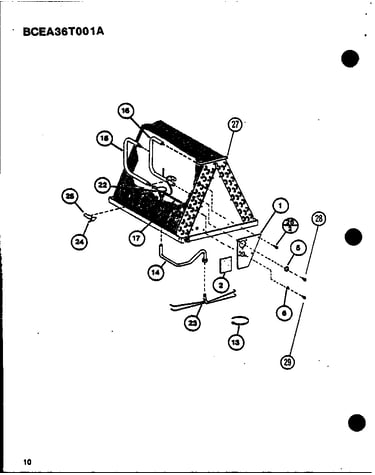

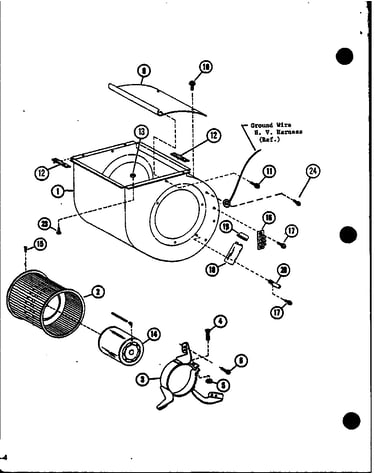

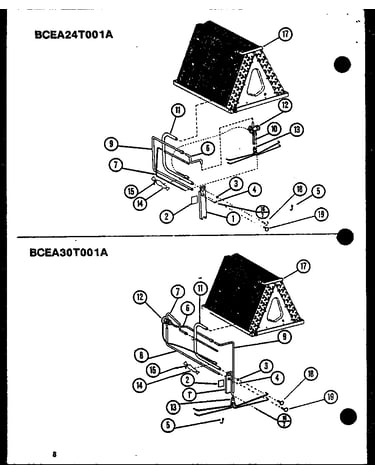

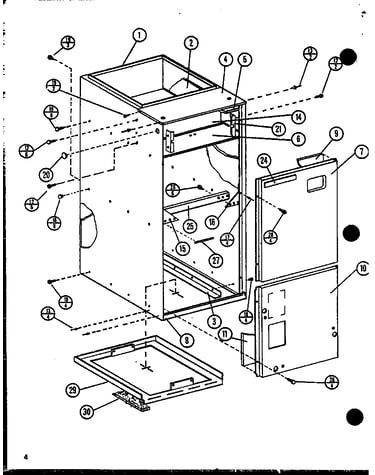

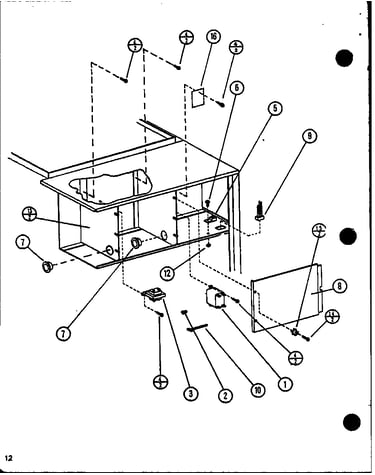

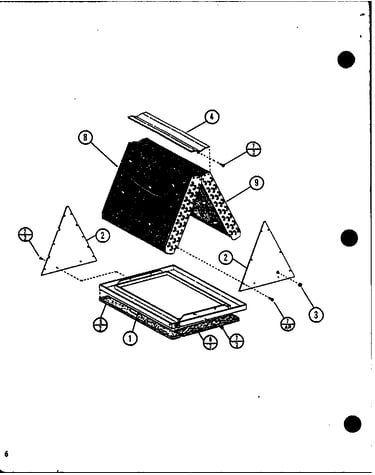

(bcea24t001a/p9846207c) (bcea30t001a/p9846208c) (bcea36t001a/p9846209c) diagram

Use m0220617

Part #M0233704

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0233704. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Tie M0321202
Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw M0267144
#4

(bcea24t001a/p9846207c) (bcea30t001a/p9846208c) (bcea36t001a/p9846209c) diagram

Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
$12.49
In Stock
Nut M0282009
Nut

Part #M0282009

Replaced by #M0282009

?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
$12.49
In Stock
Screw M0211016
#10

(bcea24t001a/p9846207c) (bcea30t001a/p9846208c) (bcea36t001a/p9846209c) diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Felt, 5/8" X 8 1/4" B1136507
#12B

(bcea24t001a/p9846207c) (bcea30t001a/p9846208c) (bcea36t001a/p9846209c) diagram

Felt, 5/8" x 8 1/4"

Part #B1136507

The manufacturer no longer makes this part, and there's no substitute part

Cover, Evaporator Top B1142301
#4B

(bcea24t001a/p9846207c) (bcea30t001a/p9846208c) (bcea36t001a/p9846209c) diagram

Cover, evaporator top

Part #B1142301

The manufacturer no longer makes this part, and there's no substitute part

Cujt-off, Evaporator Blower C6121802
#9A

(bcea24t001a/p9846207c) (bcea30t001a/p9846208c) (bcea36t001a/p9846209c) diagram

Cujt-off, evaporator blower

Part #C6121802

The manufacturer no longer makes this part, and there's no substitute part
