Amana TC10085W2A/PTC10085W2A room air conditioner Parts
Here are the diagrams and repair parts for Amana TC10085W2A/PTC10085W2A room air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for TC10085W2A/PTC10085W2A Room Air Conditioner

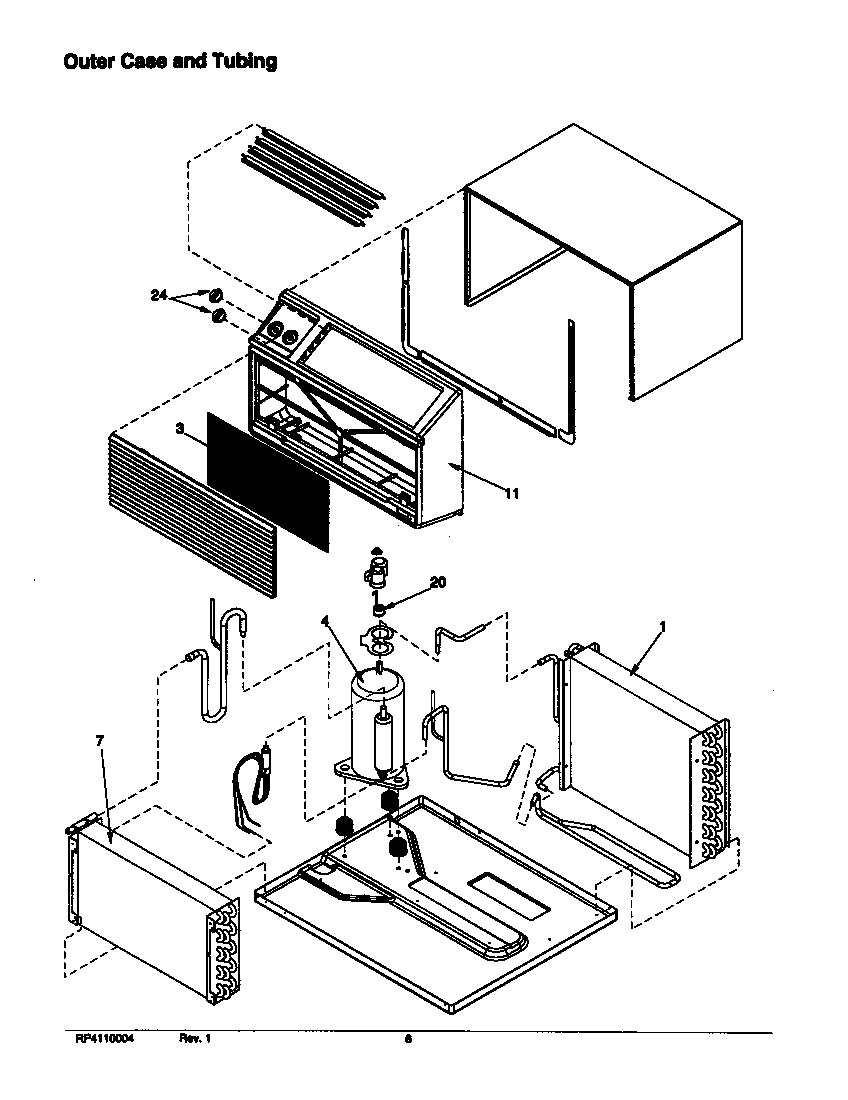

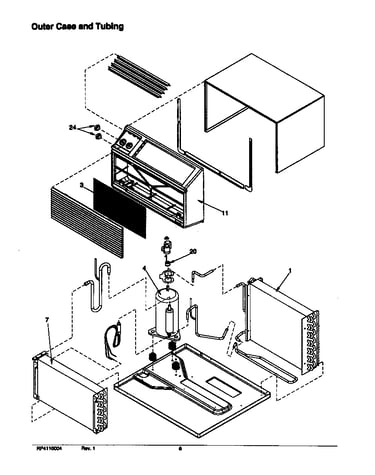

Outer case and tubing diagram
Control Knob
Part #BT3075631Replaced by #WPBT3075631
Manufacturer substitutionThis part replaces BT3075631. Substitute parts can look different from the original.In Stock$56.59
Qty

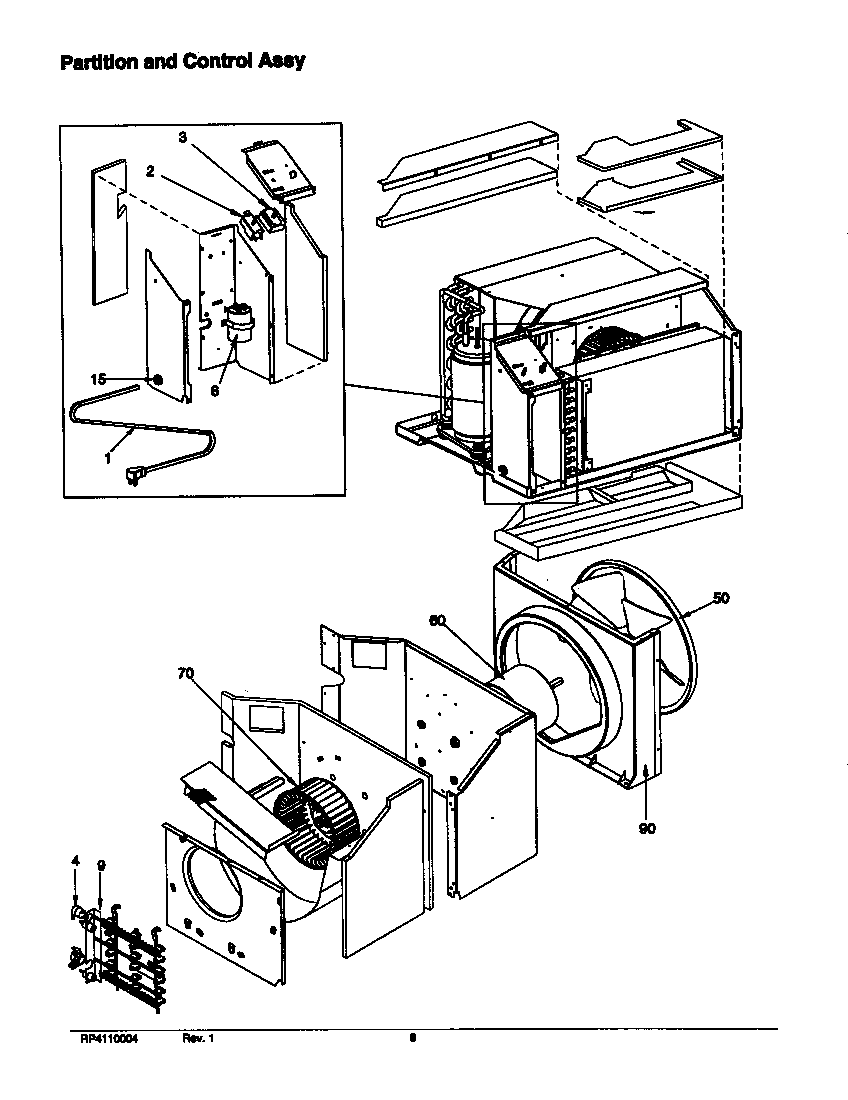

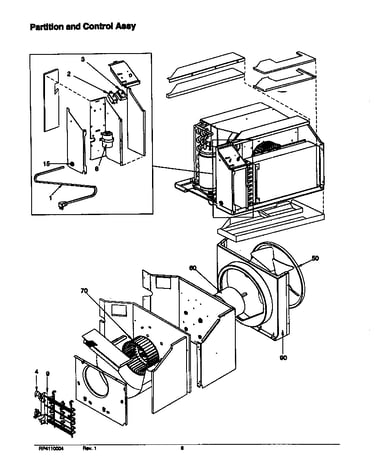

Partition and control assy diagram
Temperature Control
Part #BT1370801Replaced by #BT1370801
Manufacturer substitutionThis part replaces BT1370801. Substitute parts can look different from the original.In Stock$102.50QtyPartition and control assy diagram
Fan Blade
Part #BT1086703
The manufacturer no longer makes this part, and there's no substitute part
Partition and control assy diagram
Limit Switch
Part #BT1243713
The manufacturer no longer makes this part, and there's no substitute part
Partition and control assy diagram
Fan Shroud
Part #BT3311000
The manufacturer no longer makes this part, and there's no substitute part
Outer case and tubing diagram
Condenser Coil Assembly
Part #3396505
The manufacturer no longer makes this part, and there's no substitute part
Outer case and tubing diagram
Compressor
Part #BT9266113S
The manufacturer no longer makes this part, and there's no substitute part
Outer case and tubing diagram
Front Panel Assembly
Part #BT3375003
The manufacturer no longer makes this part, and there's no substitute part
Outer case and tubing diagram
Evaporator Coil Assembly
Part #3396004
The manufacturer no longer makes this part, and there's no substitute part
Outer case and tubing diagram
Overload
Part #BT1243703
The manufacturer no longer makes this part, and there's no substitute part
