Model # MVHP144ME4CA1 Official GE air-conditioner/heat pump

Here are the diagrams and repair parts for Official GE MVHP144ME4CA1 air-conditioner/heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Right Side Panel WP71X26739
#224

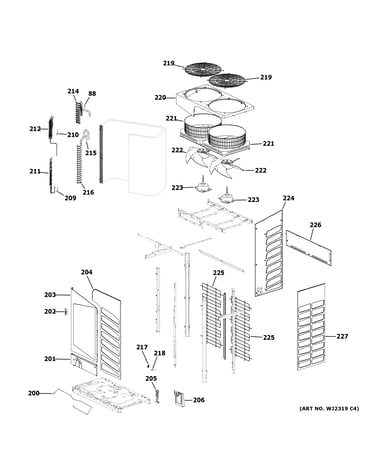

Motor & chassis parts diagram

Right side panel

Part #WP71X26739

$108.10
In Stock
Heat E X Changer To Supercooled Tube 2 WP53X27025
#63

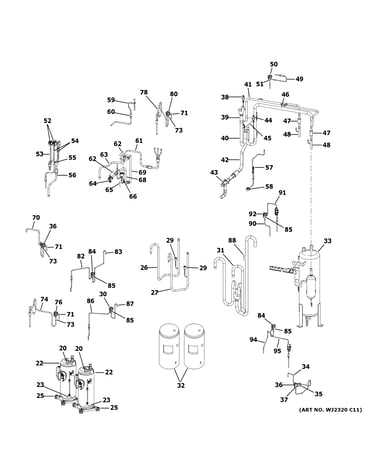

Sealed system diagram

Heat e x changer to supercooled tube 2

Part #WP53X27025

$185.02
In Stock
Top Grille WP71X27014
#219

Motor & chassis parts diagram

Top grille

Part #WP71X27014

$67.00
In Stock
Stop Valve Connection Tube WP53X27026
#68

Sealed system diagram

Stop valve connection tube

Part #WP53X27026

$79.82
In Stock
Lower Front Panel WP71X26746
#201

Motor & chassis parts diagram

Lower front panel

Part #WP71X26746

$32.84
In Stock
Capacitor Board WP26X28238
#107

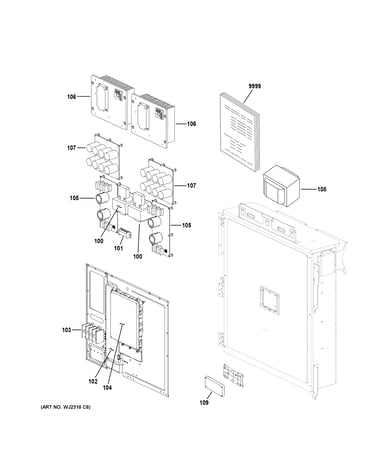

Control parts diagram

Capacitor board

Part #WP26X28238

$445.03
In Stock
Fan Shroud WP76X26025
#221

Motor & chassis parts diagram

Fan shroud

Part #WP76X26025

$99.13
In Stock
Sv9 To Reversing Valve Connection Tube WP53X26995
#87

Sealed system diagram

Sv9 to reversing valve connection tube

Part #WP53X26995

$10.23
In Stock
Solenoid Valve Body WP26X26958
#73

Sealed system diagram

Solenoid valve body

Part #WP26X26958

$8.26
In Stock
Tdef Sensor WP26X26027
#210

Motor & chassis parts diagram

Tdef sensor

Part #WP26X26027

$19.80
In Stock
