Amana EFS-0936-1A/P96220-10F electric furnace Parts

Name: Amana EFS-0936-1A/P96220-10F Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: EFS-0936-1A/P96220-10F
Availability: InStock

Here are the diagrams and repair parts for Amana EFS-0936-1A/P96220-10F electric furnace, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for EFS-0936-1A/P96220-10F Electric Furnace

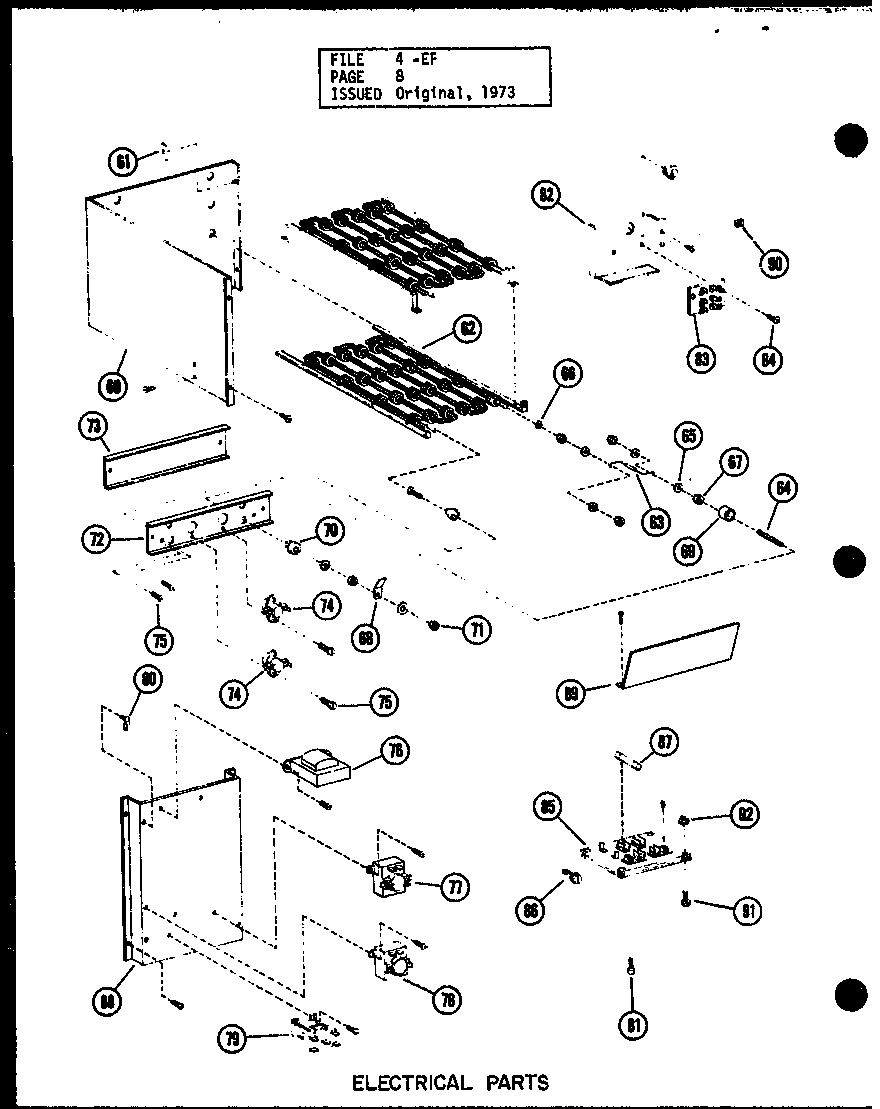

Electrical parts (efs-0919-1a/p96220-15f) (efs-0929-1a/p96220-16f) (efs-0936-1a/p96220-10f) diagram
Heating Element
Part #D9627901
The manufacturer no longer makes this part, and there's no substitute part
(efl-20105-1a/p96224-9f) (efl-20122-1a/p96224-11f) diagram
Insulation, Upper Rear 1 X 17-1/4" X 22-1/2"
Part #A9016808
The manufacturer no longer makes this part, and there's no substitute part
(efl-20105-1a/p96224-9f) (efl-20122-1a/p96224-11f) diagram
Upper Access Door
Part #C9437202
The manufacturer no longer makes this part, and there's no substitute part

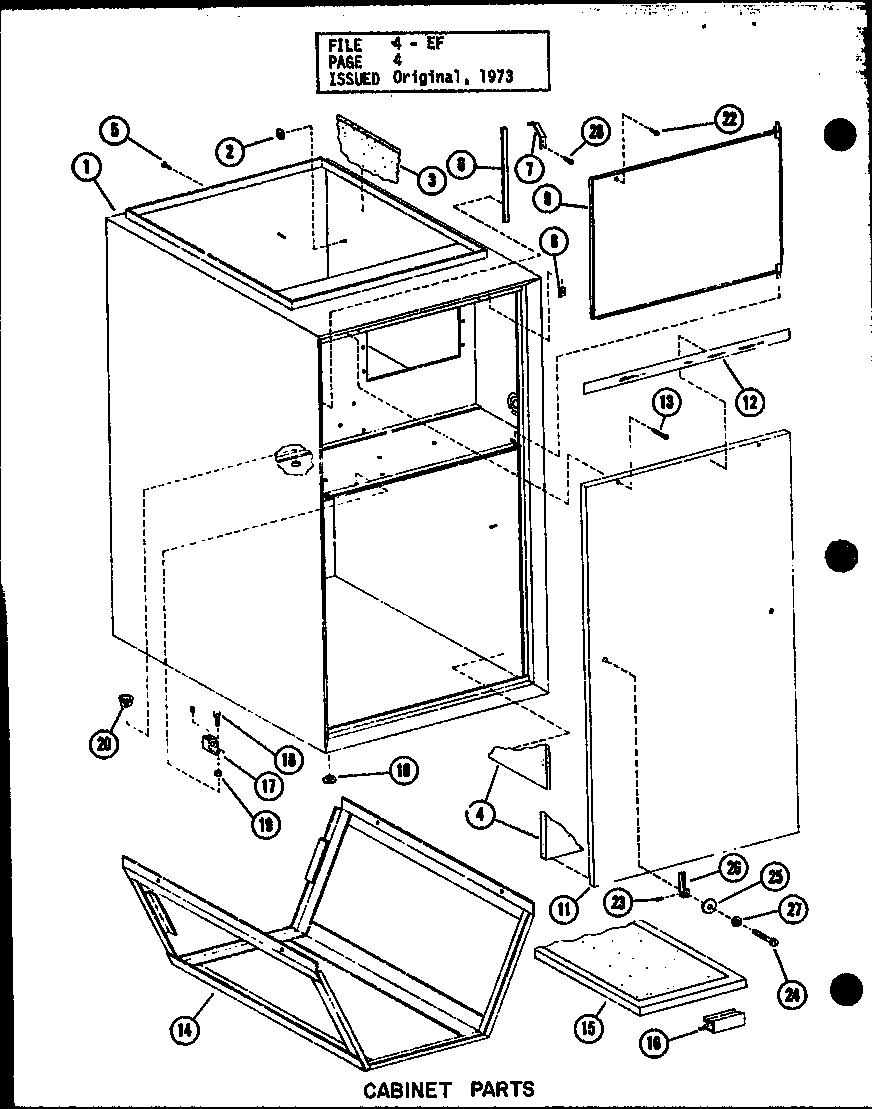

Cabinet parts (efs-0919-1a/p96220-15f) (efs-0929-1a/p96220-16f) (efs-0936-1a/p96220-10f) diagram
Nameplate
Part #C9446805
The manufacturer no longer makes this part, and there's no substitute part

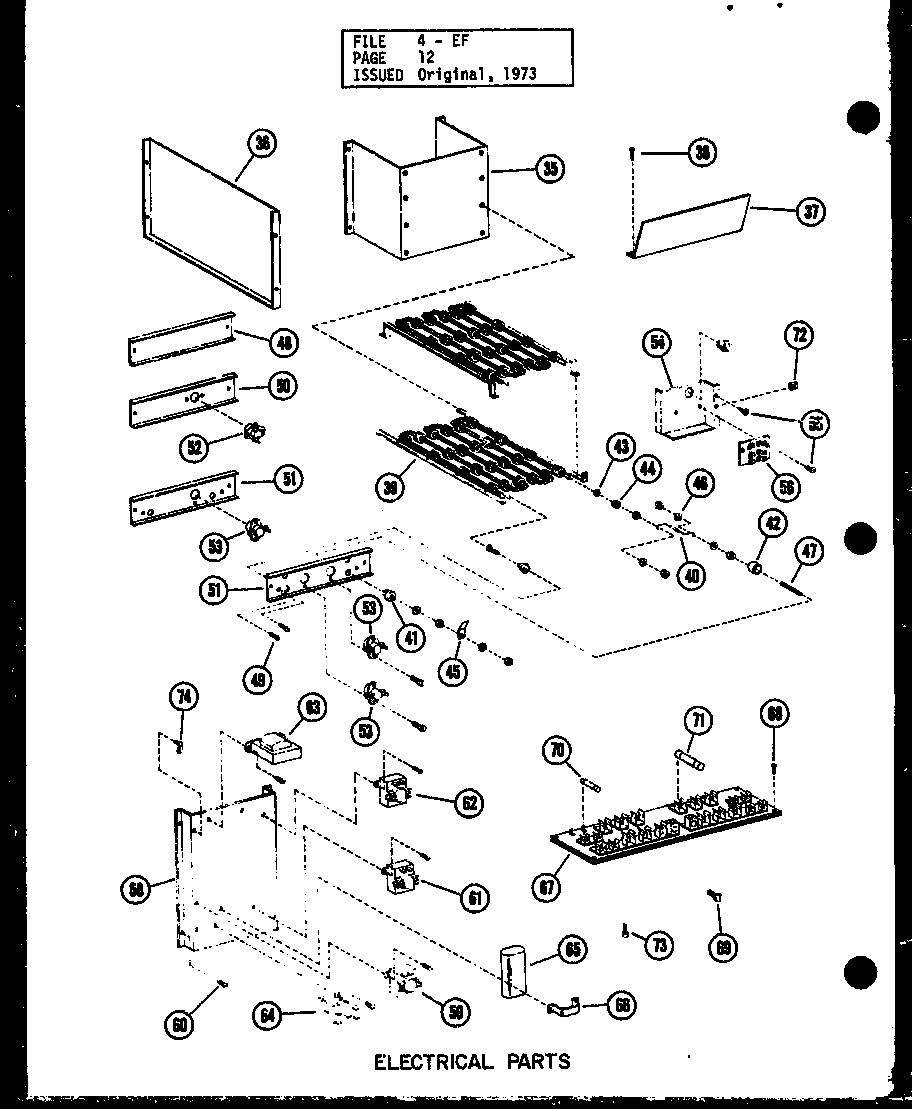

Electric parts (efl-20105-1a/p96224-9f) (efl-20122-1a/p96224-11f) diagram
Fuse Board
Part #D9621401
The manufacturer no longer makes this part, and there's no substitute part

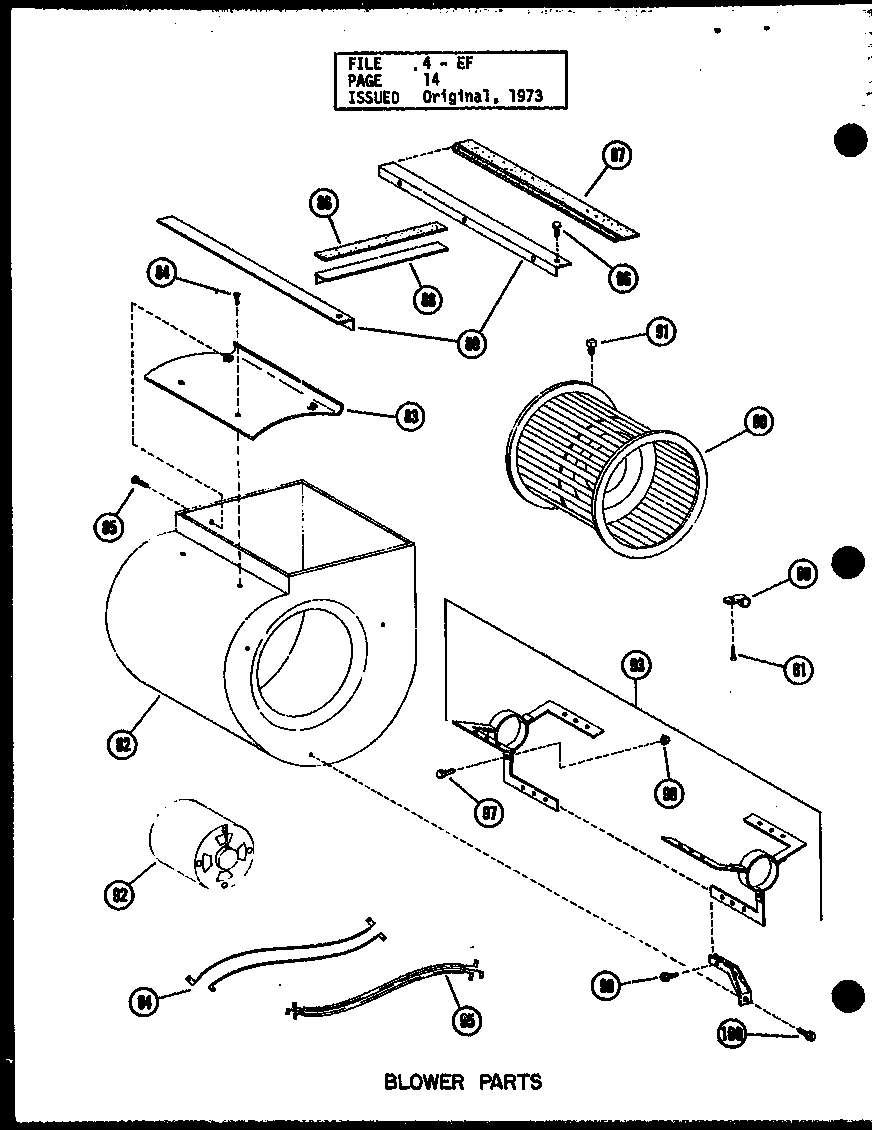

Blower parts (efl-20105-1a/p96224-9f) (efl-20122-1a/p96224-11f) diagram
Wiring Harness, High Voltage Wires
Part #R0164015
The manufacturer no longer makes this part, and there's no substitute part
Electrical parts (efs-0919-1a/p96220-15f) (efs-0929-1a/p96220-16f) (efs-0936-1a/p96220-10f) diagram
Element Support
Part #B9254501
The manufacturer no longer makes this part, and there's no substitute part
Blower parts (efs-0919-1a/p96220-15f) (efs-0929-1a/p96220-16f) (efs-0936-1a/p96220-10f) diagram
Blower Seal
Part #A9008316
The manufacturer no longer makes this part, and there's no substitute part
(efl-20105-1a/p96224-9f) (efl-20122-1a/p96224-11f) diagram
Insulation, 22 1/4 X 26 X 1"
Part #A9016811
The manufacturer no longer makes this part, and there's no substitute part
Blower parts (efl-20105-1a/p96224-9f) (efl-20122-1a/p96224-11f) diagram
Blower Cut-off, 5710000
Part #M0851004
The manufacturer no longer makes this part, and there's no substitute part
