KitchenAid KD100 garbage disposal Parts

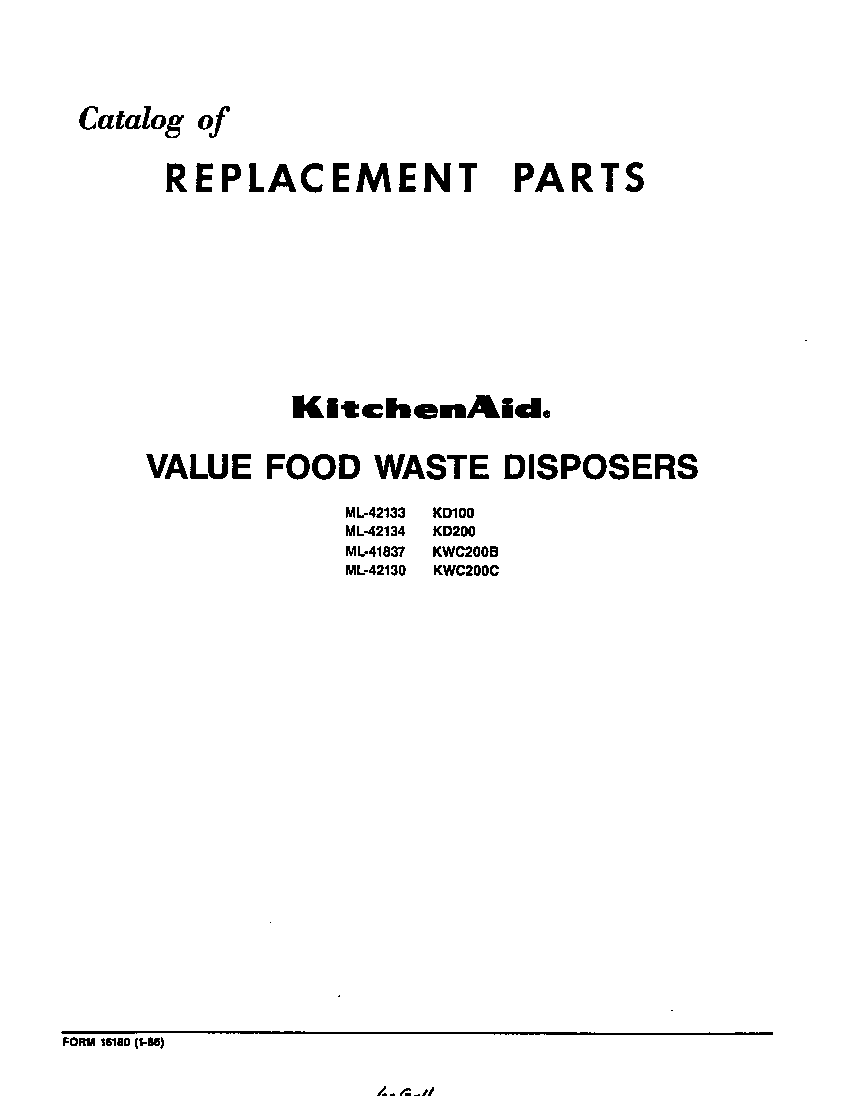

Here are the diagrams and repair parts for KitchenAid KD100 garbage disposal, as well as links to manuals and error code tables, if available.

KitchenAid KD100 garbage disposal
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KD100 Garbage Disposal

  • Home Electronics Connector for KitchenAid KD100 - Part 201424

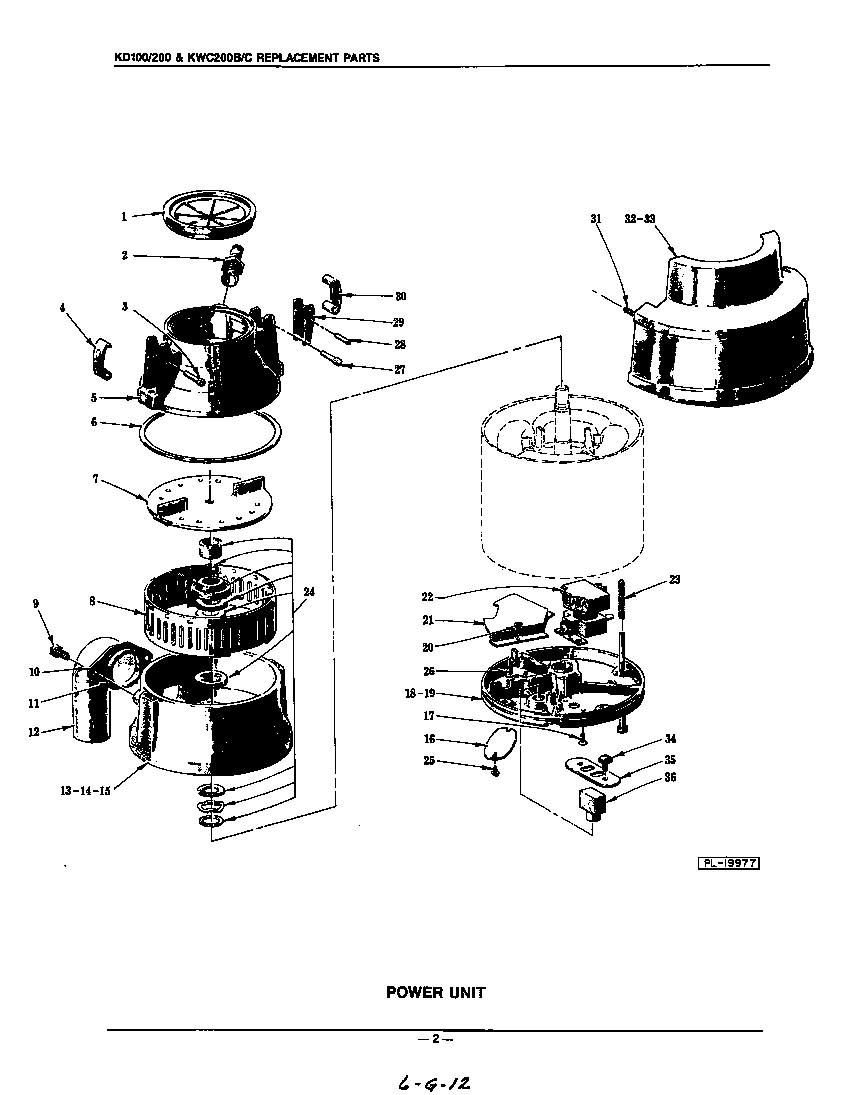

    Power unit diagram

    Home Electronics Connector

    Part #201424

    The manufacturer no longer makes this part, and there's no substitute part

  • Maytag Appliance Hose Clamp for KitchenAid KD100 - Part WP596669

    Power unit diagram

    Hose Clamp

    Part #202515

    Replaced by #WP596669

    Info Icon
    Manufacturer substitution
    This part replaces 202515. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.73
    17% OFF Phone Price : $5.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Laundry Appliance Fill Hose Washer for KitchenAid KD100 - Part 5303161296

    Power unit diagram

    Washer

    Part #121403

    Replaced by #5303161296

    Info Icon
    Manufacturer substitution
    This part replaces 121403. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $13.40
    13% OFF Phone Price : $15.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Connector - Male Hose for KitchenAid KD100 - Part 240758

    Power unit diagram

    Connector - Male Hose

    Part #240758

    The manufacturer no longer makes this part, and there's no substitute part

  • Lower Housing Assy. (gray) (hobart Motor) (kwc200c) for KitchenAid KD100 - Part 110399-25

    Power unit diagram

    Lower Housing Assy. (gray) (hobart Motor) (kwc200c)

    Part #110399-25

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate - Support for KitchenAid KD100 - Part 203160

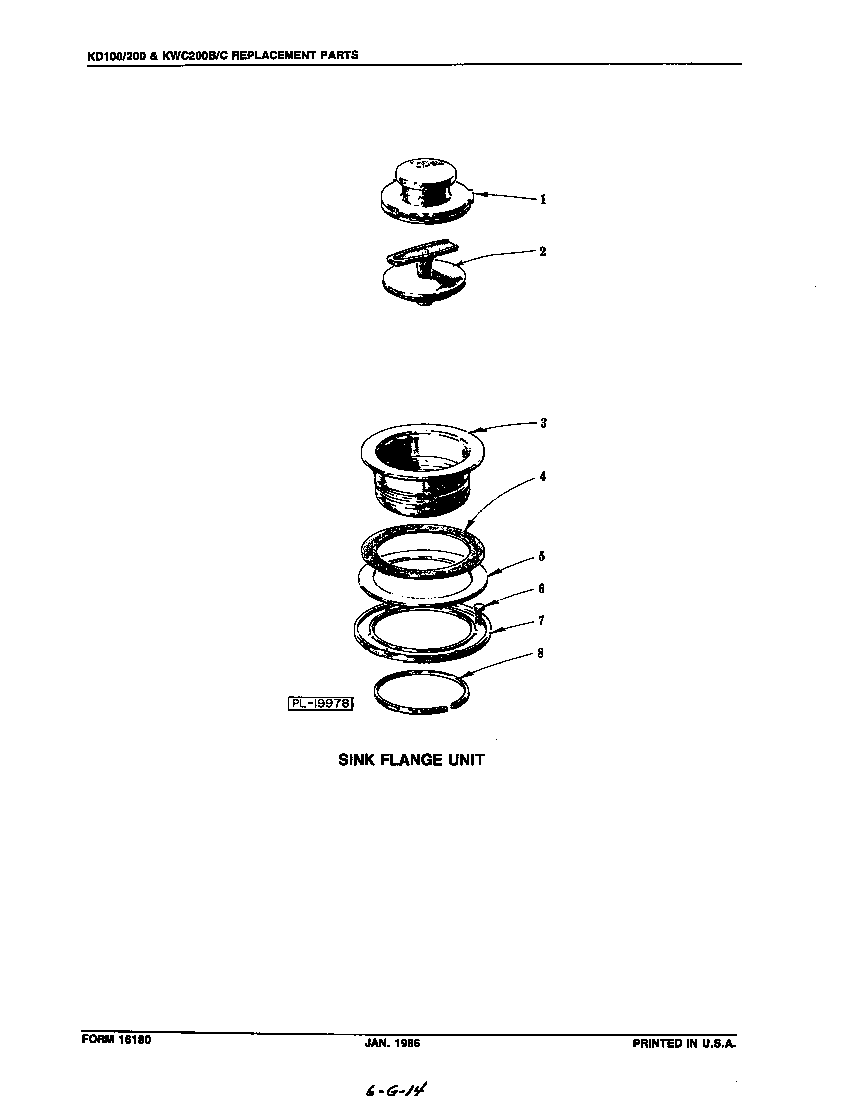

    Sink flange diagram

    Plate - Support

    Part #203160

    The manufacturer no longer makes this part, and there's no substitute part

  • Lower Housing Assy. (g.e. Motor) (kwc200b/c) for KitchenAid KD100 - Part 110399-24

    Power unit diagram

    Lower Housing Assy. (g.e. Motor) (kwc200b/c)

    Part #110399-24

    The manufacturer no longer makes this part, and there's no substitute part

  • Relay (115 V., 60 Hz.) for KitchenAid KD100 - Part 87714-17-1

    Power unit diagram

    Relay (115 V., 60 Hz.)

    Part #87714-17-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw - Machine Grounding for KitchenAid KD100 - Part 202559

    Power unit diagram

    Screw - Machine Grounding

    Part #202559

    The manufacturer no longer makes this part, and there's no substitute part

  • Bearing Bracket Assy. (g.e. Motor) for KitchenAid KD100 - Part 243147-1

    Power unit diagram

    Bearing Bracket Assy. (g.e. Motor)

    Part #243147-1

    The manufacturer no longer makes this part, and there's no substitute part
