Amana 12C3EW/P1177810R room air conditioner

Amana 12C3EW/P1177810R room air conditioner Parts

Here are the diagrams and repair parts for Amana 12C3EW/P1177810R room air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 12C3EW/P1177810R Room Air Conditioner

  • Washer Screw for Amana 12C3EW/P1177810R - Part WP90767

    Screw

    Part #M0216716

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216716. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana 12C3EW/P1177810R - Part WP90767

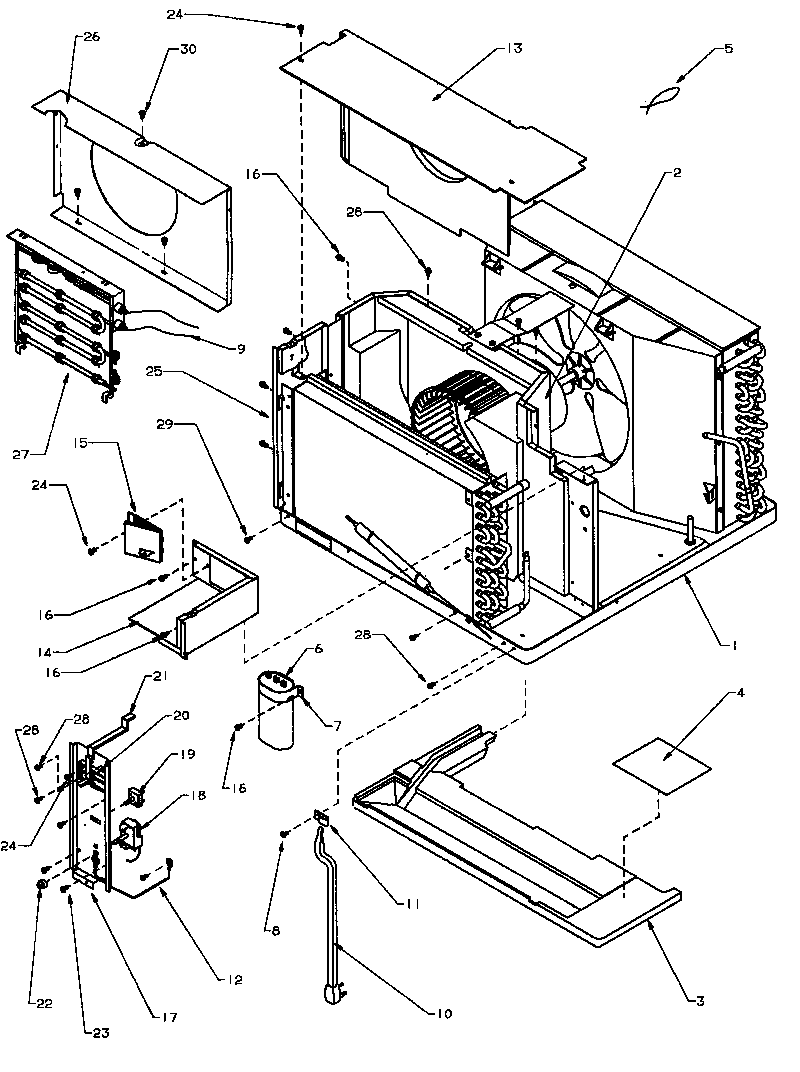

    Interior parts diagram

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Amana 12C3EW/P1177810R - Part WP693995

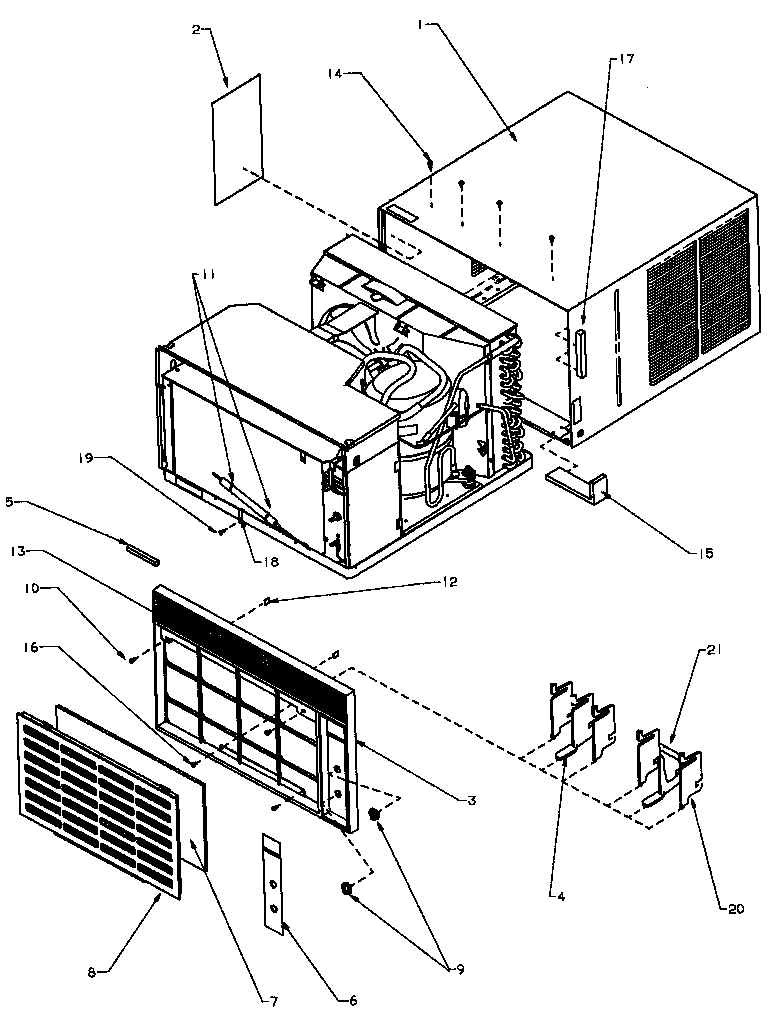

    Exterior parts diagram

    Frame Screw

    Part #M0241116

    Replaced by #WP693995

    Info Icon
    Manufacturer substitution
    This part replaces M0241116. Substitute parts can look different from the original.
    In Stock
    $38.58
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana 12C3EW/P1177810R - Part 67006425

    Interior parts diagram

    Screw

    Part #M0211017

    Replaced by #67006425

    Info Icon
    Manufacturer substitution
    This part replaces M0211017. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw Sm/hex for Amana 12C3EW/P1177810R - Part WP98165

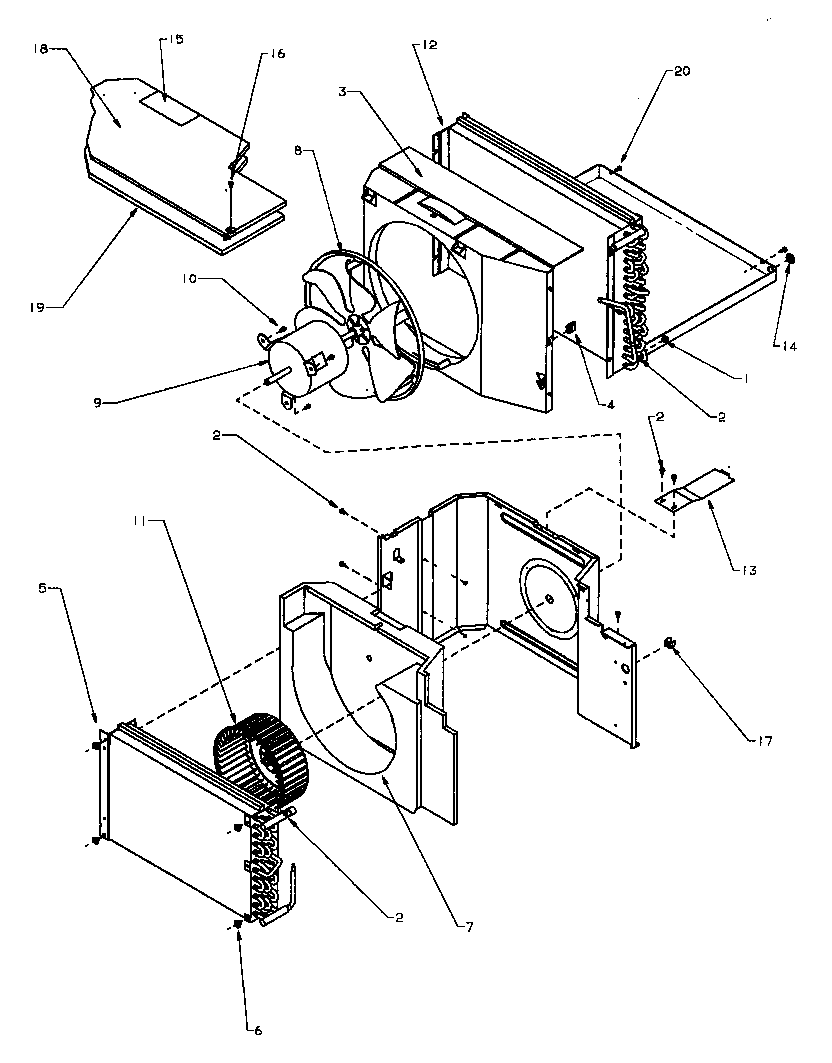

    Evaporator and fan motor diagram

    Screw

    Part #M0211018

    Replaced by #WP98165

    Info Icon
    Manufacturer substitution
    This part replaces M0211018. Substitute parts can look different from the original.
    In Stock
    $28.38
    Minus Item
    Qty
    Plus Item
  • Appliance Cable Tie for Amana 12C3EW/P1177810R - Part WPW10339879

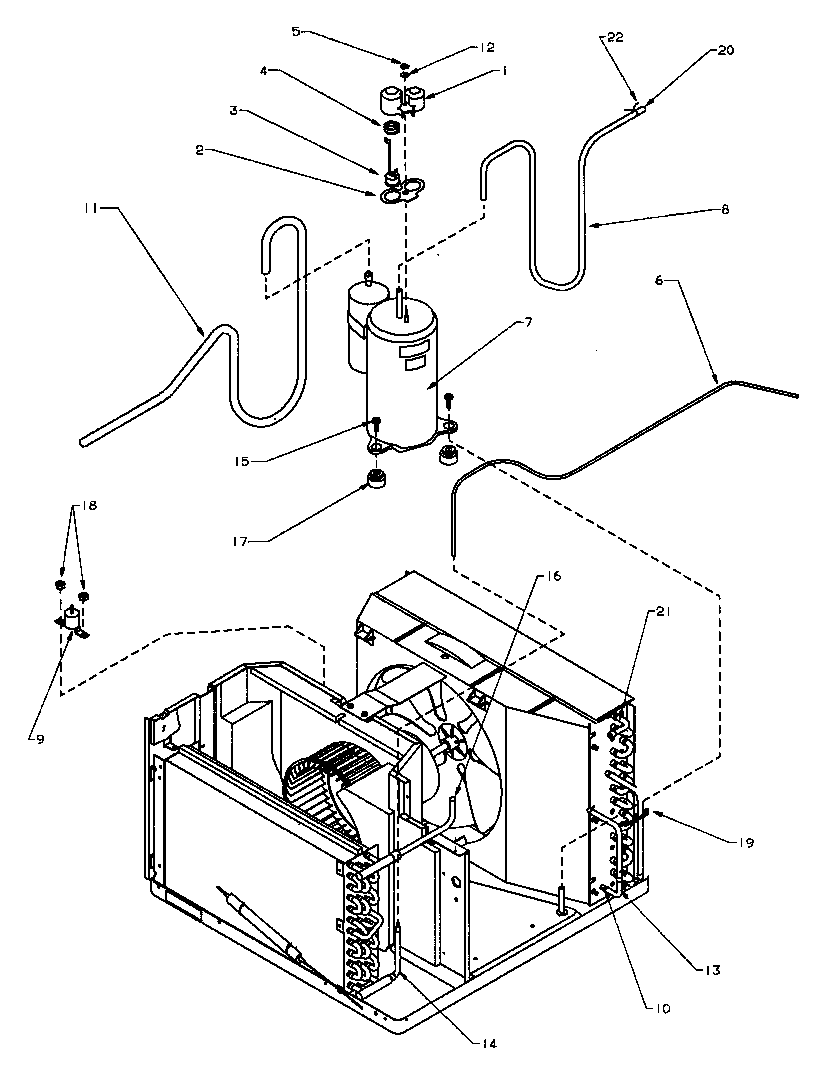

    Compressor and tubing diagram

    Tie

    Part #M0321202

    Replaced by #WPW10339879

    Info Icon
    Manufacturer substitution
    This part replaces M0321202. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Compressor for Amana 12C3EW/P1177810R - Part D9831804

    Compressor and tubing diagram

    Compressor

    Part #D9831804

    Replaced by #D9831804

    Info Icon
    Manufacturer substitution
    This part replaces D9831804. Substitute parts can look different from the original.
    In Stock
    $383.64
    Minus Item
    Qty
    Plus Item
  • Lock Nut for Amana 12C3EW/P1177810R - Part WP776338

    Compressor and tubing diagram

    Terminal Nut

    Part #A3436601

    Replaced by #WP776338

    Info Icon
    Manufacturer substitution
    This part replaces A3436601. Substitute parts can look different from the original.
    In Stock
    $42.33
    Minus Item
    Qty
    Plus Item
  • Whirlpool Range Screw for Amana 12C3EW/P1177810R - Part WP12990527

    Interior parts diagram

    Screw

    Part #M0245116

    Replaced by #WP12990527

    Info Icon
    Manufacturer substitution
    This part replaces M0245116. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.80
    17% OFF Phone Price : $5.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Nut for Amana 12C3EW/P1177810R - Part WP487939

    Compressor and tubing diagram

    Grommet

    Part #M0282015

    Replaced by #WP487939

    Info Icon
    Manufacturer substitution
    This part replaces M0282015. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.82
    17% OFF Phone Price : $5.82Info Icon
    Minus Item
    Qty
    Plus Item
